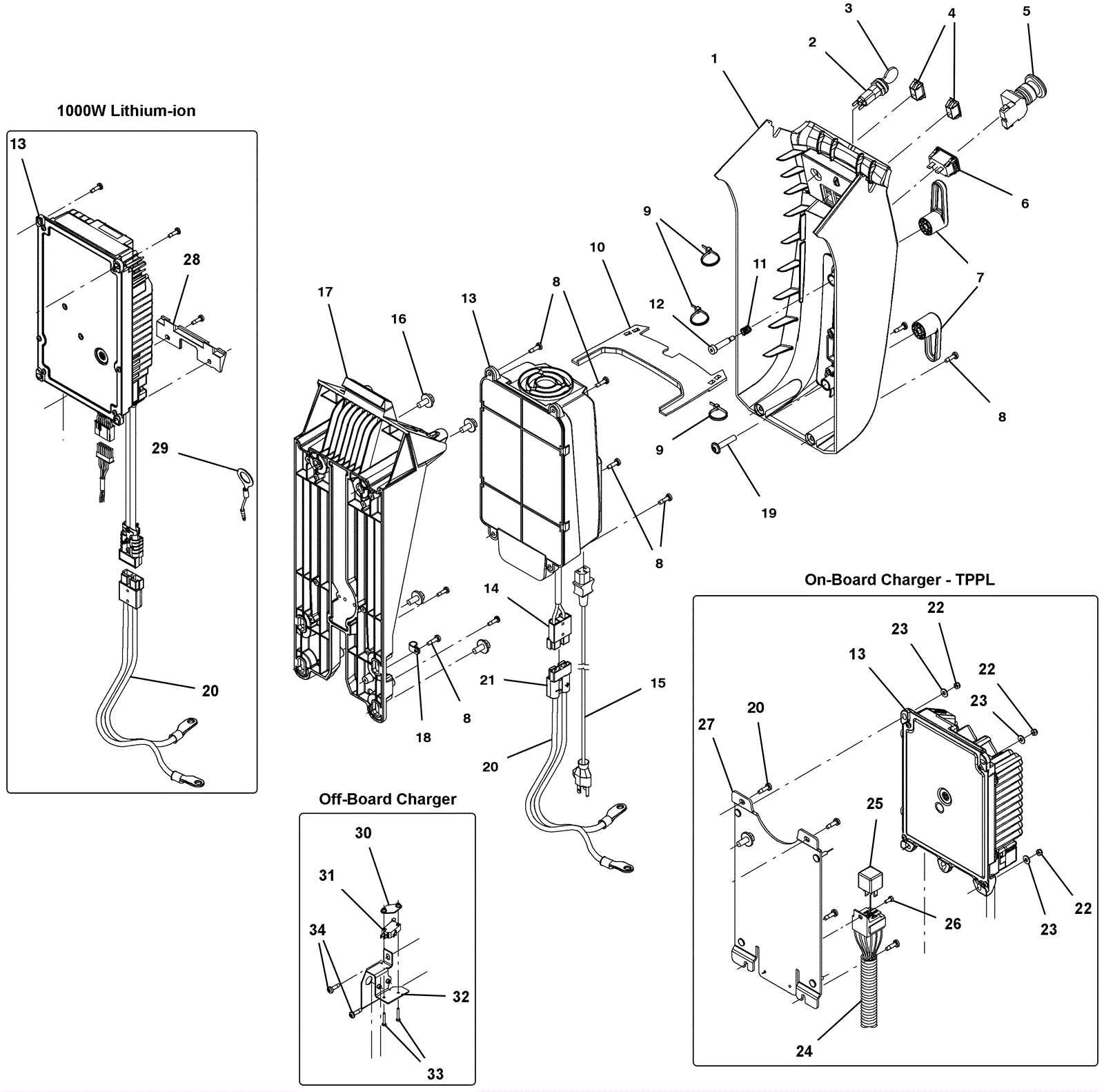

T500 Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0182 Control column cover $144.87 1 usually ships 1-5 days
2 175-7872 Key switch with 2 keys $53.13 1 (includes 3) ships same day
3 991-1634 Key (pkg of 2) $10.67 1 ships same day
4 175-2698 Switch plug $5.83 2 ships same day
5 275-1416 Safety shut-off switch $40.01 1 ships same day
6 275-9900 Hour meter $52.69 1 ships same day
7 275-5449 Cord hook $3.54 2 (on-board charger) usually ships 5-16 days
8 175-7660 Screw #10-14 x .675 shoulder self-tapping $4.18 9 ships same day
9 175-7795 Cable tie $3.85 3 ships same day
10 275-5448 Charger cover $11.99 1 (on-board charger) (standard) usually ships 1-5 days
11 175-7507 Compression spring $3.30 1 (on-board charger) (qty 2 before SN 10982559) ships same day
12 175-9855 Bolt M6-.8 x 30mm shield $7.48 1 (on-board charger) (qty 2 before SN 10982559) usually ships 5-16 days
13a 375-3264 24V 25amp SPE onboard battery charger $578.27 1 (includes 14) (on-board charger) (standard) ships same day
13b 375-1633 Off-board battery charger assembly $731.17 1 (includes 14) (off-board charger) (wet and AGM) ships same day
13c 375-2531 24V 650W Lithium-ion charger $586.96 1 (includes 14) (off-board charger) (lithium-ion) usually ships 5-16 days
13d 375-9393 24V on-board charger $689.26 1 (includes 14) (on-board charger) (TPPL) ships same day
13e N/A Not available Call for price 1 (lithium-ion charger) (on-board charger) (650W lithium-ion) usually ships 3-26 days
13f N/A Not available Call for price 1 (lithium-ion charger) (on-board charger) (1000W lithium-ion) usually ships 3-26 days
14 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
15a 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 (OEM) ships same day
15b 993-2795 16/3 onboard charger power cord 15 foot (black) $29.60 1 (NON-OEM) usually ships 1-5 days
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
17 375-3182 Column frame $110.55 1 usually ships 5-16 days
18 275-5443 P clamp $5.06 1 (on-board charger) (standard, TPPL and 650W lithium-ino) usually ships 1-5 days
19 375-9373 Screw M6 x 1 x 30, 10.9 $0.99 1 (on-board charger) (after SN 10982558) usually ships 5-16 days
20a 475-1496 HARNESS, CHRGR, 12GA [M8 RING/M8 RING] $46.97 1 (includes 21) (standard and TPPL) ships same day
20b N/A Not available Call for price 1 (lithium-ion charger harness) usually ships 3-26 days
21 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
22 175-2894 Nut M5-.8 hex nylon locking $2.42 4 (on-board charger) (TPPL and 650W lithium-ion) usually ships 5-16 days
23 999-0998 Washer #10 flat stainless steel $0.99 4 (on-board charger) (TPPL and 650W lithium-ion) ships same day
24 375-9380 Relay adapter electrical harness $97.13 1 (on-board charger) (TPPL and 650W lithium-ion) usually ships 5-16 days
25 175-8635 40amp relay $28.60 1 (on-board charger) (TPPL and 650W lithium-ion) ships same day
26 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 1 (on-board charger) (TPPL and 650W lithium-ion) ships same day
27 375-9394 Charger adapter plate weldment $65.34 1 (off-board, TPPL and 650W lithium-ion) usually ships 5-16 days
28 375-4592 Charger bracket $8.36 1 (on-board charger) (1000W lithium-ion) usually ships 5-16 days
29 275-5428 Wiring harness $21.23 1 (on-board charger) (1000W lithium-ion) usually ships 1-5 days
30 175-7839 Switch plate $33.00 1 (off-board charger) usually ships 5-16 days
31 375-0226 Mircroswitch $10.12 1 (off-board charger) ships same day
32 375-0046 Charger plug bracket $29.59 1 (off-board charger) usually ships 5-16 days
33 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 (off-board charger) ships same day
34 175-7660 Screw #10-14 x .675 shoulder self-tapping $4.18 2 (off-board charger) ships same day
