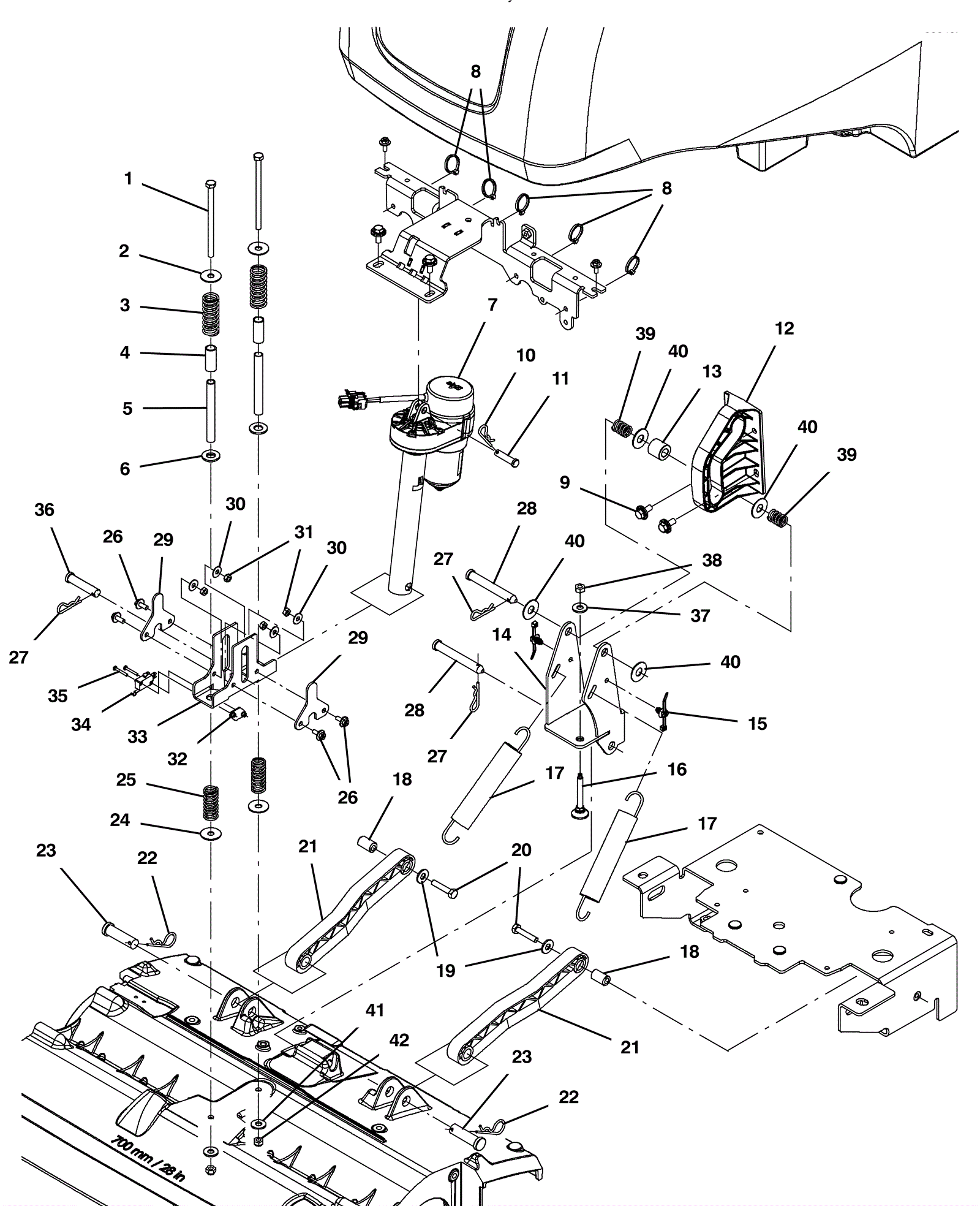

T500 Scrub Head Lift Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 275-8726 SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial) $11.02 2 usually ships 1-5 days
2 175-2298 Washer .38 x .06 stainless steel $3.96 2 usually ships 5-16 days
3 175-2199 Compression spring $4.95 2 usually ships 5-16 days
4 375-3244 Pm sleeve $2.42 2 usually ships 5-16 days
5 375-3245 Sleeve $33.55 2 usually ships 5-16 days
6 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
7 375-3246 24V actuator $506.99 1 ships same day
8 175-2202 Nylon wire tie $3.30 5 ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
10 175-4331 Cotter hair pin $3.96 1 ships same day
11 175-2111 Clevis pin $3.85 1 ships same day
12 375-3248 Guide bracket $22.22 1 usually ships 5-16 days
13 175-7911 Roller $9.68 1 usually ships 5-16 days
14 375-3250 Scrubhead pivot weldment $85.36 1 usually ships 5-16 days
15 275-5197 Fir tree clip $1.65 2 usually ships 5-16 days
16 375-3251 Leveler screw $31.90 1 usually ships 5-16 days
17 175-2234 Extension spring $13.31 2 usually ships 5-16 days
18 175-4343 1 inch tube $6.27 2 ships same day
19 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
20 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
21 175-2102 Scrub head lifting arm $48.95 2 ships same day
22 175-2106 Cotter hair pin $3.30 2 ships same day
23 175-2105 Clevis pin $6.60 2 ships same day
24 175-2298 Washer .38 x .06 stainless steel $3.96 2 usually ships 5-16 days
25 175-2443 2 1/2 inch compression spring $4.95 2 usually ships 5-16 days
26 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
27 175-4331 Cotter hair pin $3.96 3 ships same day
28 175-4960 Clevis pin $10.01 2 usually ships 5-16 days
29 375-3252 Pin holder bracket $18.26 2 usually ships 5-16 days
30 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
31 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
32 175-7839 Switch plate $33.00 1 usually ships 5-16 days
33 375-3253 Suspension head spring bracket $44.00 1 usually ships 5-16 days
34 375-0226 Mircroswitch $10.12 1 ships same day
35 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
36 175-9603 Clevis pin $3.96 1 usually ships 5-16 days
37 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
38 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
39 175-4371 Compression spring $3.96 2 usually ships 5-16 days
40 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
41 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
42 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
