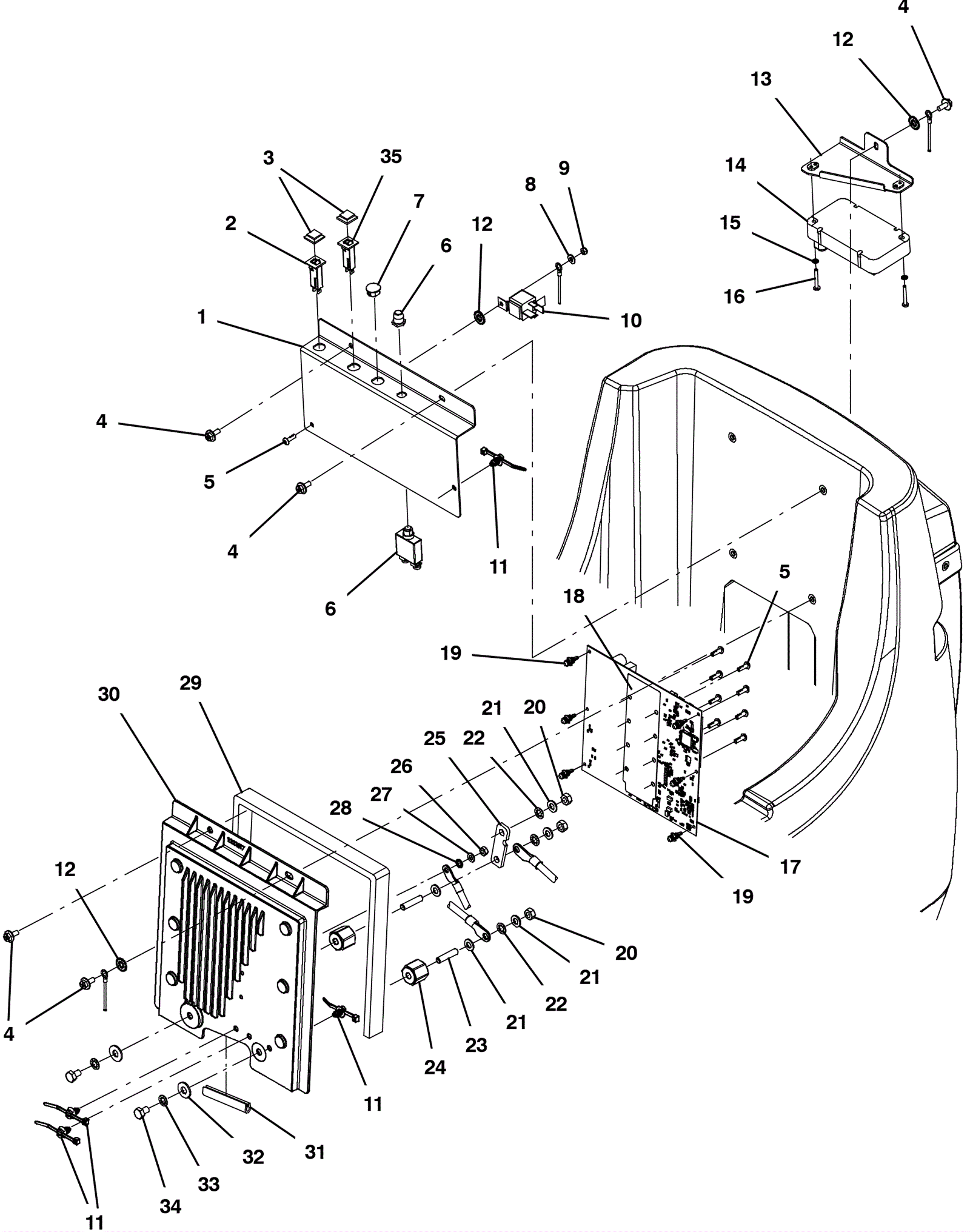

T500 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3231 Bracket $52.03 1 usually ships 10-16 days
2 375-0170 Circuit breaker $9.13 1 ships same day
3 275-2596 Circuit breaker boot (Tennant Industrial) $20.84 2 ships same day
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 5 ships same day
5 999-1403 Screw M8 x 16mm torx head $2.90 9 ships same day
6 375-3232 60amp circuit breaker $28.05 1 ships same day
7 275-7026 Plug (Tennant Industrial) $2.50 1 (models without spray wand option) usually ships 1-5 days
8 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
9 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
10 375-3233 24V relay $21.67 1 ships same day
11 275-5197 Fir tree clip $2.38 4 usually ships 10-16 days
12 275-0288 Washer 1/4 internal-external lock $4.36 3 ships same day
13 375-3180 Bracket $63.03 1 usually ships 10-16 days
14 375-3234 Drive module kit $424.38 1 (requires Tennant True service or an authorized Tennant service provider) ships same day
15 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
16 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 12-18 days
17a 375-3235 Control board kit $943.69 1 (includes 17b-17c) usually ships 10-16 days
17b 275-1425 Static ground strap (Tennant Industrial) $12.34 1 ships same day
17c 375-1351 USB to USB mini cable $16.39 1 usually ships 10-16 days
18 375-3236 Control board pad $21.67 1 usually ships 10-16 days
19 275-5465 Standoff $1.98 1 usually ships 10-16 days
20 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.67 6 usually ships 10-16 days
21 275-5475 Washer M8-.4 x 1.6mm brass $3.30 3 usually ships 1-5 days
22 999-1053 Washer 5/16 internal star lock stainless steel $0.99 5 ships same day
23 175-4271 Screw M8 x 35mm set $5.28 3 usually ships 10-16 days
24 375-0176 Insulated stand-off $14.19 2 usually ships 1-5 days
25 375-0181 Fuse $19.36 2 usually ships 1-5 days
26 275-5479 Nut M6 x 1 (Tennant Industrial) $2.50 1 usually ships 10-16 days
27 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
28 175-4544 Washer M6 locking $4.49 1 ships same day
29 375-3237 Circuit board cover gasket $57.31 1 usually ships 10-16 days
30 375-4562 Circuitboard heatsink $107.47 1 usually ships 10-16 days
31 275-1269 3 foot trim molding $72.60 1 usually ships 1-5 days
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
33 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
34 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
35 275-9986 10amp circuit breaker (Tennant Industrial) $8.34 1 ships same day
