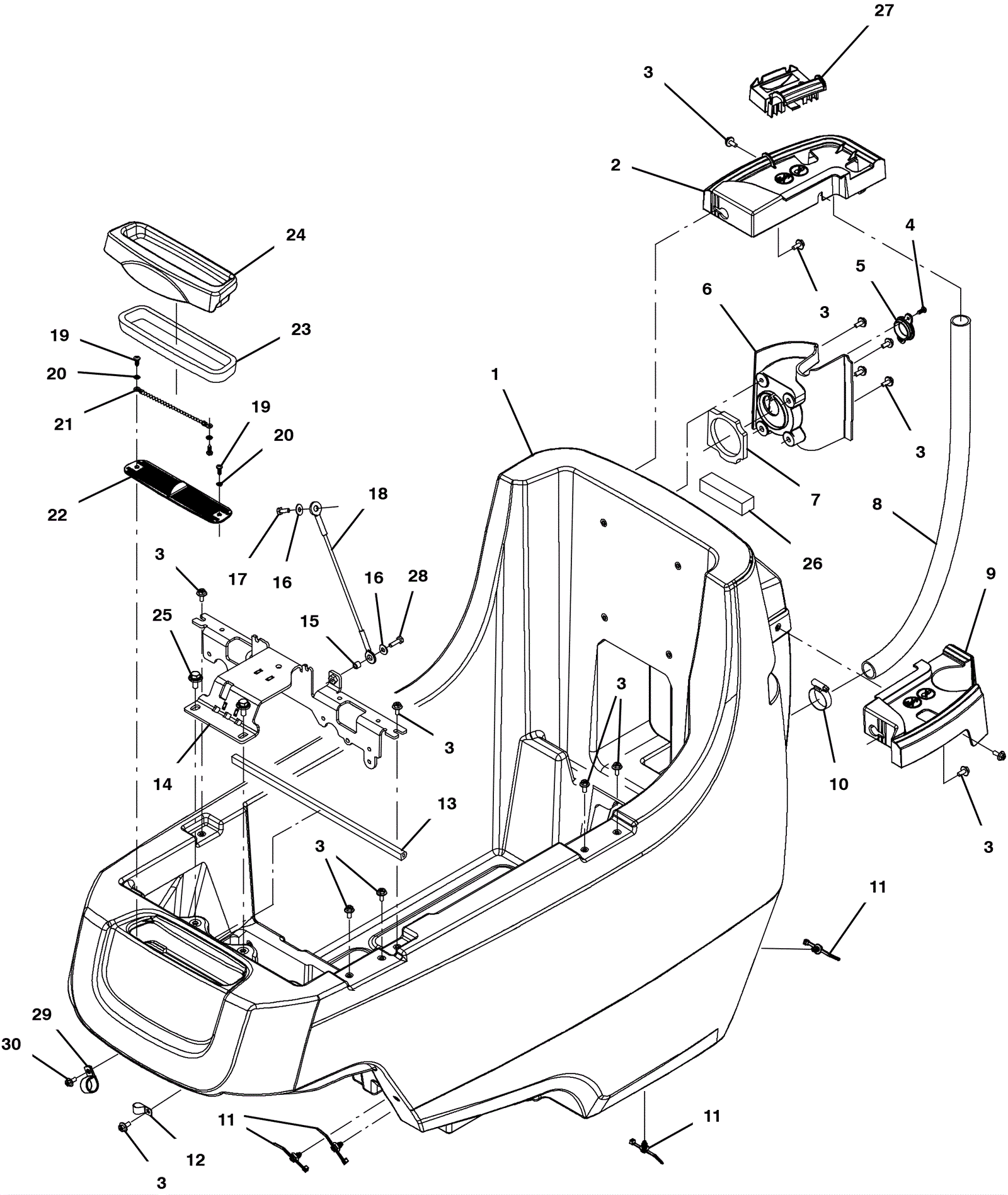

T500 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-4132 TANK KIT, SOLTN, CI [T500] $1,392.93 1 usually ships 5-16 days
2 375-3219 Right hand accessory tray $21.12 1 usually ships 5-16 days
3 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 11 (qty 15 before SN 11058039) ships same day
4 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 1 (before SN 11058039) ships same day
5 175-7825 Solution fill port cap $3.96 1 (before SN 11058039) ships same day
6 375-3220 Standard fill cover $28.82 1 (before SN 11058039) usually ships 5-16 days
7 375-3221 Water seal $4.40 1 (before SN 11058039) usually ships 5-16 days
8 375-3222 Solution drain hose kit $45.65 1 ships same day
9 375-3223 Left hand accessory tray $26.51 1 usually ships 5-16 days
10 175-2254 Hose clamp $4.84 1 ships same day
11 275-5197 Fir tree clip $1.65 4 usually ships 5-16 days
12 175-2667 P clamp $3.96 1 usually ships 5-16 days
13 375-3230 Dual seal (Tennant Industrial) $24.22 1 ships same day
14 375-3224 Actuator weldment bracket $110.11 1 usually ships 5-16 days
15 175-0152 Spacer $3.85 1 usually ships 5-16 days
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
18 375-3225 Cable $16.50 1 usually ships 5-16 days
19 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 3 ships same day
20 999-1026 Washer #10 internal lock stainless steel $0.99 3 ships same day
21 175-5129 Ball chain #10 stainless steel $3.96 1 usually ships 5-16 days
22 375-3226 Filter screen $4.40 1 usually ships 5-16 days
23 375-3227 Solution tank seal $32.12 1 ships same day
24a 375-3228 Front fill cover $26.84 1 (standard) ships same day
24b 375-3229 Front fill cover $78.21 1 (ec- H2O) ships same day
25 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
26 375-3172 Seal $2.64 1 usually ships 5-16 days
27 375-1366 Large rail hanger bracket (OBSOLETE) $12.43 1 (before 06/2022) usually ships 5-16 days
28 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
29 175-3179 P clamp $3.96 1 (models without ABW option) usually ships 5-16 days
30 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 (models without ABW option) ships same day
