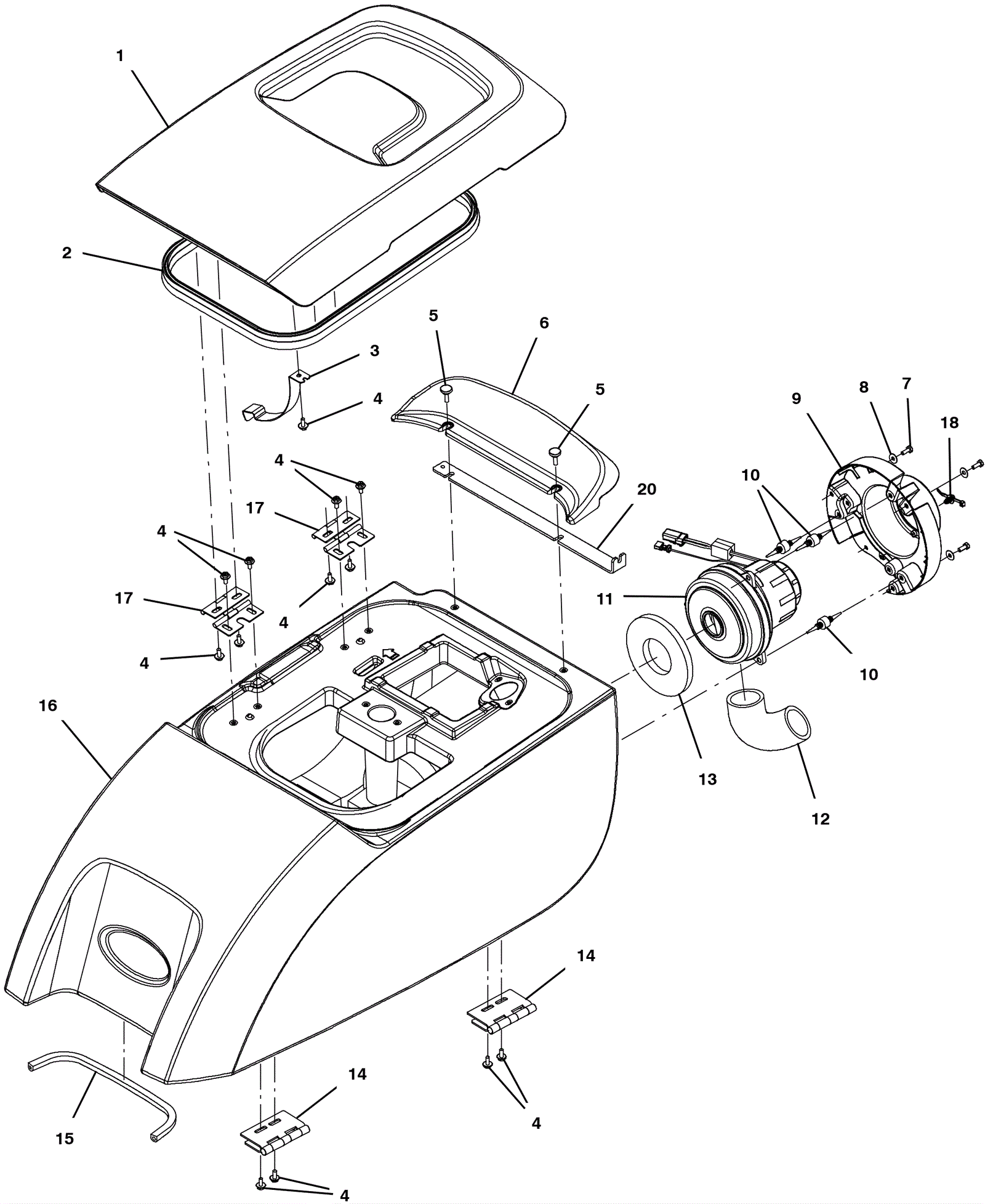

T500 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-3213 Recovery tank cover kit $343.31 1 (includes 2) usually ships 10-16 days
2 375-3206 Recovery tank cover seal $76.56 1 usually ships 10-16 days
3 375-3207 Recovery tank lid support $58.41 1 usually ships 10-16 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 12 ships same day
5 275-5957 Round knob M6 x 20mm plastic $5.41 2 usually ships 10-16 days
6 375-3208 Recovery tank spray shield $21.78 1 usually ships 10-16 days
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
9 375-0114 Vacuum motor mount $19.47 1 ships same day
10 275-9897 Isolator $5.28 3 ships same day
11a 375-0113 24V 2 stage vacuum motor $489.28 1 (includes 11b) ships same day
11b 275-7693 Carbon brush (pkg of 2) $29.92 1 usually ships 10-16 days
12 175-7794 Vacuum exhaust hose $32.45 1 ships same day
13 175-6085 Gasket $10.89 1 ships same day
14 375-3209 Hinge $16.50 2 usually ships 10-16 days
15 375-3210 Recovery tank seal $38.83 1 ships same day
16 375-3211 Recovery tank $925.21 1 usually ships 10-16 days
17 375-3212 Leaf hinge $20.13 2 usually ships 10-16 days
18 275-5197 Fir tree clip $2.38 1 usually ships 10-16 days
20 375-7848 Top hanger bracket $72.82 1 (after SN 11010146) usually ships 10-16 days
