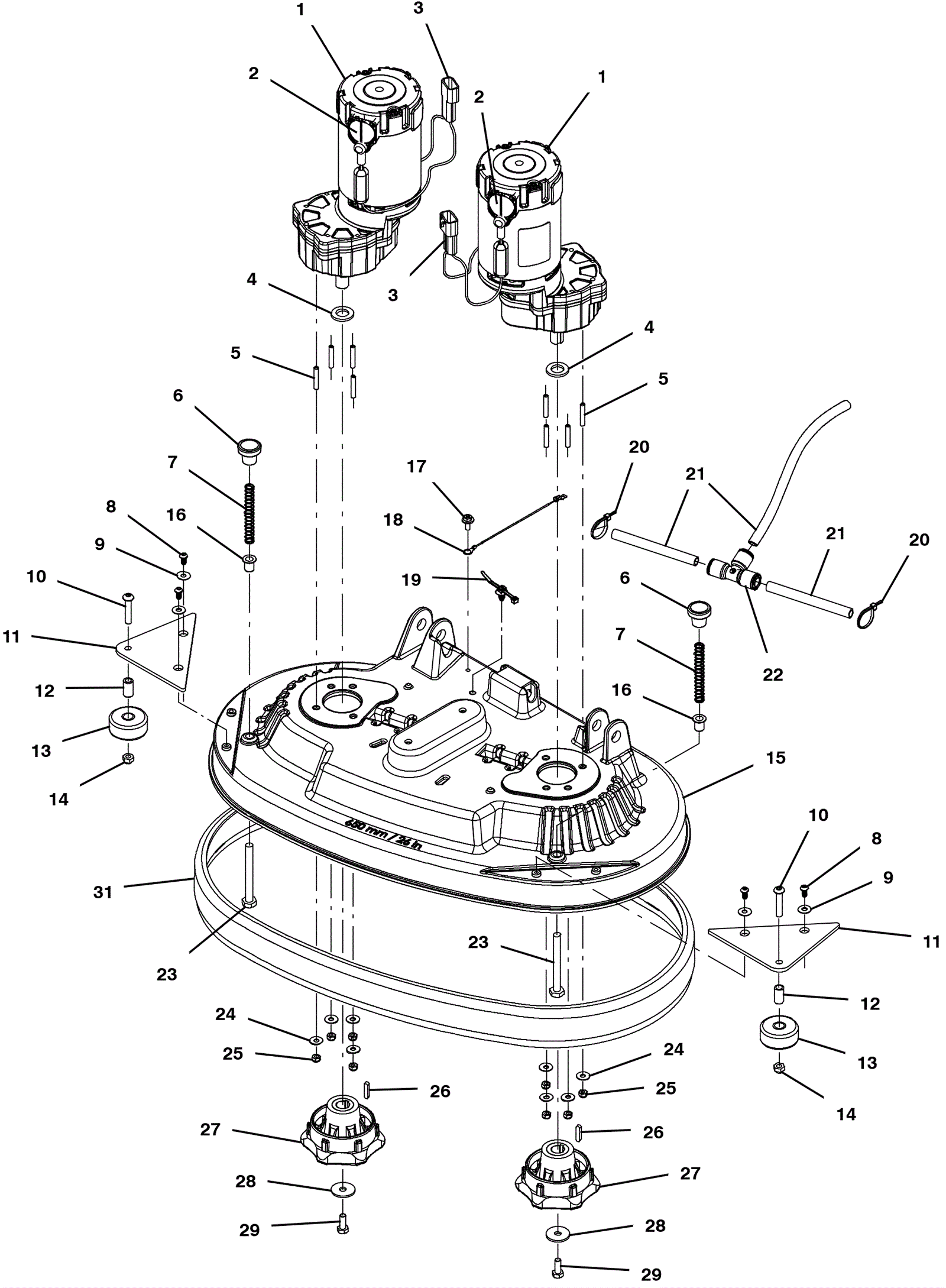

T500 Scrub Head Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1a 275-1457 24V brush motor assembly with gearbox $1,372.30 2 (includes 2-3) (OEM) ships same day
1b 991-1706 24V brush motor assembly with gearbox $712.62 2 (NON-OEM) usually ships 14-21 days
2 275-1458 Carbon brush (pkg of 2) $137.48 1 (1 per motor) ships same day
3 275-1459 Brush motor connector harness $302.39 1 (1 per motor) ships same day
4 275-1469 Shaft spacer $8.91 2 usually ships 10-16 days
5 275-1465 Screw M6-1 x 35 mm set nylock stainless steel $4.36 8 ships same day
6 375-3139 Plastic round knob $16.94 2 ships same day
7 175-7018 Compression spring $5.50 2 ships same day
8 375-3140 Screw M6-1 x 12mm truss head phillips stainless steel $1.98 4 usually ships 10-16 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
10 999-0769 Screw M8-1.25 x 40mm button head socket stainless steel $1.58 2 ships same day
11 375-3141 Roller bracket $24.86 2 usually ships 10-16 days
12 175-2182 Sleeve $4.22 2 ships same day
13 175-2245 Wheel $10.45 2 usually ships 10-16 days
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
15a 375-9370 26 inch disc housing $676.80 1 usually ships 10-16 days
15b 375-4503 28 inch disc housing with decal $738.48 1 usually ships 10-16 days
15c 375-9824 32 inch disc housing bumper $655.27 1 usually ships 10-16 days
16 375-9372 Flange bushing 10mm x 12mm x 17mm $37.29 1 usually ships 10-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 1 ships same day
18 375-0108 Electrical harness $7.04 1 usually ships 10-16 days
19 275-5197 Fir tree clip $2.38 1 usually ships 10-16 days
20 175-7795 Cable tie $5.15 2 ships same day
21 375-0204 5 foot solution hose $113.30 1 usually ships 10-16 days
22 375-3144 Plastic tee fitting $14.41 1 ships same day
23 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
25 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 8 ships same day
26 275-1468 Square keyway $5.28 2 usually ships 10-16 days
27 275-1477 Brush drive hub (disk) $140.47 2 ships same day
28 175-7920 Washer M8 flat stainless steel $4.49 2 ships same day
29 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
31a 475-3755 26 inch bumper head skirt $155.10 1 usually ships 10-16 days
31b 375-3146 28 inch (700mm) bumper $136.40 1 ships same day
31c 375-3148 32 inch (800mm) bumper $156.75 1 ships same day
