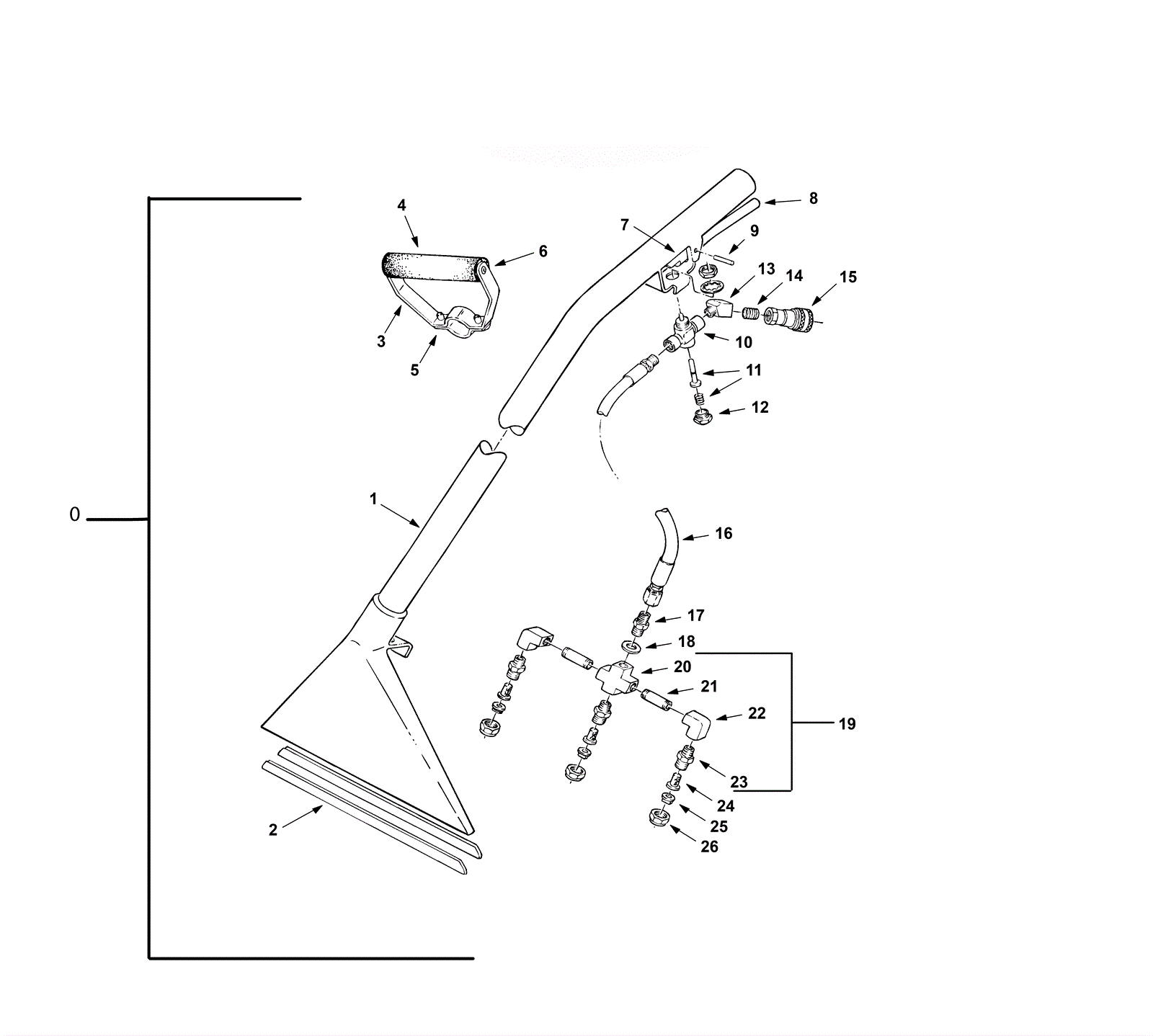

CONCORDE Floor Tool Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-3563 13 inch low pressure wand assembly $865.20 1 ships same day
1 175-1810 13 inch floor tool $346.10 1 usually ships 1-5 days
2 175-1321 13 inch pick-up shoe plate stainless steel $16.90 2 ships same day
3 175-1812 Handle assembly (OBSOLETE) $50.90 1 (includes 4-6) usually ships 1-5 days
4 175-1813 Foam grip $12.30 1 usually ships 5-16 days
5 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
6 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel $0.99 2 ships same day
7 175-1815 Trigger $27.50 1 usually ships 5-16 days
8 175-1816 Handle sleeve $4.40 1 usually ships 5-16 days
9 175-1817 Handle pin $5.10 1 ships same day
10 175-1819 Manual valve assembly $94.90 1 ships same day
11 175-1820 Valve pin and spring kit $68.20 1 usually ships 5-16 days
12 N/A Not available Call for price 1 usually ships 3-26 days
13 175-6031 Straight jet fitting $6.80 1 ships same day
14 175-6244 Nipple $3.60 1 ships same day
15 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) $17.12 1 ships same day
16 175-3565 Solution hose assembly $36.20 1 usually ships 5-16 days
17 175-6239 1/4 inch nipple $4.40 1 ships same day
18 175-1825 Washer $3.50 1 ships same day
19 175-1826 Spray bar without tips for 13 inch wand $81.20 1 (includes 20-23) usually ships 5-16 days
20 175-1829 Tee fitting $14.70 1 ships same day
21 175-6015 Nipple $5.30 2 usually ships 5-16 days
22 175-6248 90 degree elbow $6.80 2 usually ships 5-16 days
23 175-1830 1/4 inch male spray body $9.70 3 usually ships 5-16 days
24 175-1802 Mesh screen filter $19.80 3 ships same day
25 175-3566 T-jet tip fitting $18.30 3 ships same day
26 175-1834 Spray nozzle cap $5.30 3 usually ships 5-16 days
N/S 175-1818 Nut 1/4 push $3.60 2 usually ships 5-16 days
