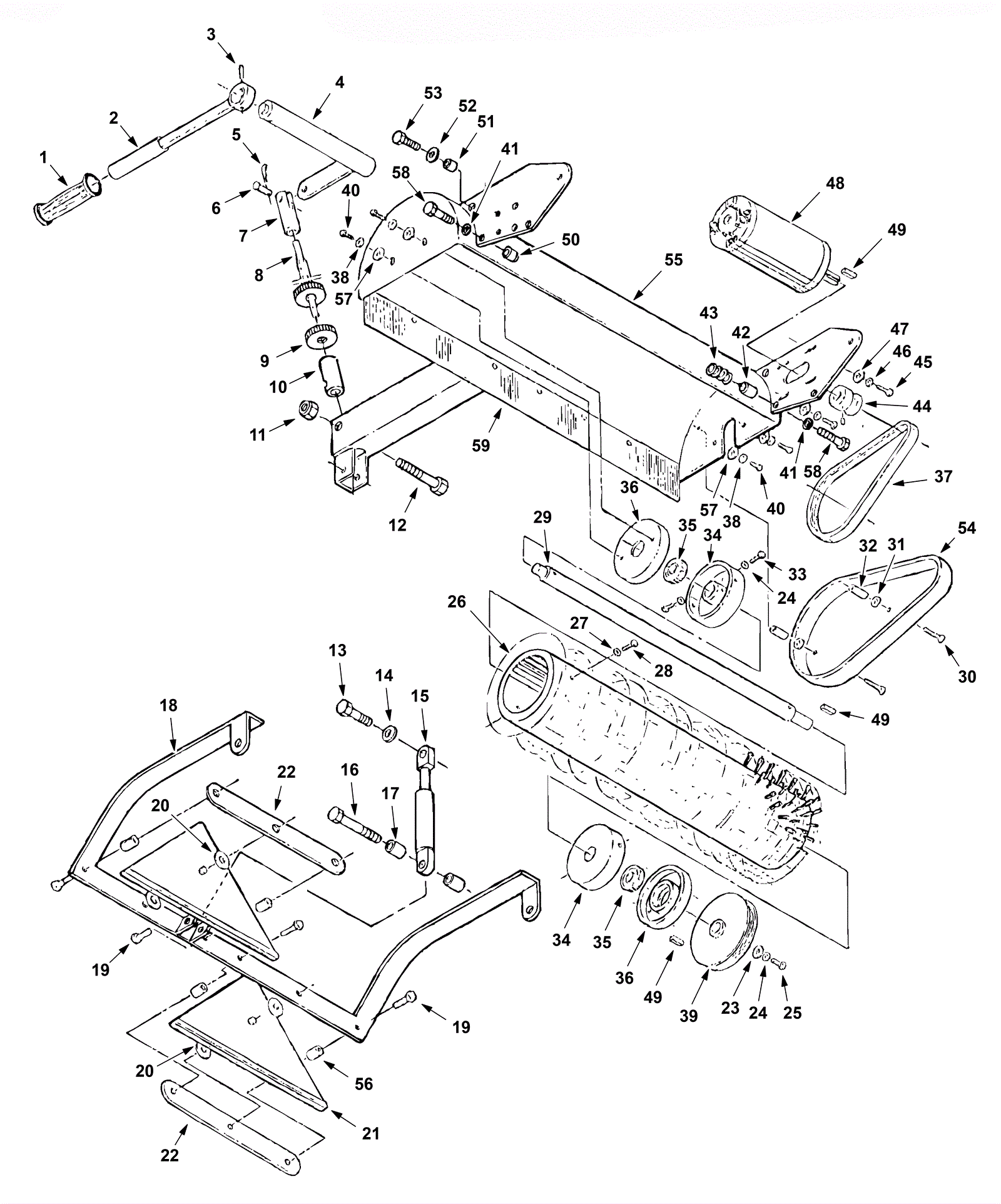

CONCORDE HP Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2703 Handle grip $3.70 1 usually ships 5-16 days
2 175-7437 Brush head lift arm $143.00 1 usually ships 1-5 days
3 175-2606 Roll pin $3.70 1 usually ships 1-5 days
4 175-7438 Lift shaft $71.40 1 usually ships 1-5 days
5 175-4331 Cotter hair pin $3.60 1 ships same day
6 175-5894 Clevis pin $4.40 1 usually ships 5-16 days
7 175-7439 Lift rod clevis $29.80 1 usually ships 1-5 days
8 175-7440 Lift rod assembly $80.80 1 usually ships 1-5 days
9 175-7441 Brush adjustment nut $25.20 1 usually ships 1-5 days
10 175-7442 Lift rod adapter $40.60 1 usually ships 1-5 days
11 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
12 999-1113 Bolt 1/2-13 x 2 1/2 hex cap stainless steel $3.67 1 ships same day
13 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
15 175-7443 Gas cylinder spring $223.60 2 usually ships 1-5 days
16 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel $2.42 2 ships same day
17 175-7444 Bushing (OBSOLETE) $6.80 4 usually ships 1-5 days
18 175-9183 Pickup tool mount bracket $257.00 1 usually ships 1-5 days
19 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 4 ships same day
20 175-6565 Polypropelene washer $3.90 4 usually ships 1-5 days
21 175-7446 Pick up tool assembly (with offset lips) $184.00 2 usually ships 1-5 days
22 175-7447 Pickup tool plate (OBSOLETE) $10.80 2 usually ships 1-5 days
23 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 1 ships same day
24 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
25 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
26 175-7448 Brush - CYLINDRICAL $472.60 1 usually ships 1-5 days
27 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
28 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 4 ships same day
29 175-7460 Brush shaft (OBSOLETE) $57.00 1 usually ships 1-5 days
30 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated $0.99 2 ships same day
31 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
32 175-7355 Plastic spacer $3.48 2 usually ships 1-5 days
33 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
34 175-7449 Brush mount adapter $56.80 2 usually ships 1-5 days
35 175-0957 Brush bearing $11.80 2 usually ships 5-16 days
36 175-7450 Bearing cap $30.60 2 usually ships 1-5 days
37 175-7451 Brush drive belt (OBSOLETE) $44.10 1 usually ships 5-16 days
38 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
39 175-7452 Brush shaft sheave $60.20 1 usually ships 1-5 days
40 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
41 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
42 175-7453 Manifold mount pin $20.20 1 usually ships 1-5 days
43 175-5889 Compression spring $5.10 1 usually ships 5-16 days
44 175-7454 Brush motor sheave $29.60 1 usually ships 1-5 days
45 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 4 ships same day
46 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
47 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
48 175-7455 36V Electric motor $591.00 1 usually ships 1-5 days
49 175-1087 Square keyway $31.60 2 ships same day
50 175-7456 Manifold mount pin $15.60 1 usually ships 1-5 days
51 175-2731 Bushing $4.32 2 usually ships 5-16 days
52 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
53 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
54 175-7457 Drive belt cover (OBSOLETE) $161.30 1 usually ships 5-16 days
55 175-7458 Brush housing weldment $736.00 1 usually ships 1-5 days
56 175-7422 5/8 Inch sleeve bushing $1.05 4 usually ships 5-16 days
57 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
58 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
59 175-7459 Splash guard (OBSOLETE) $4.74 1 usually ships 1-5 days
