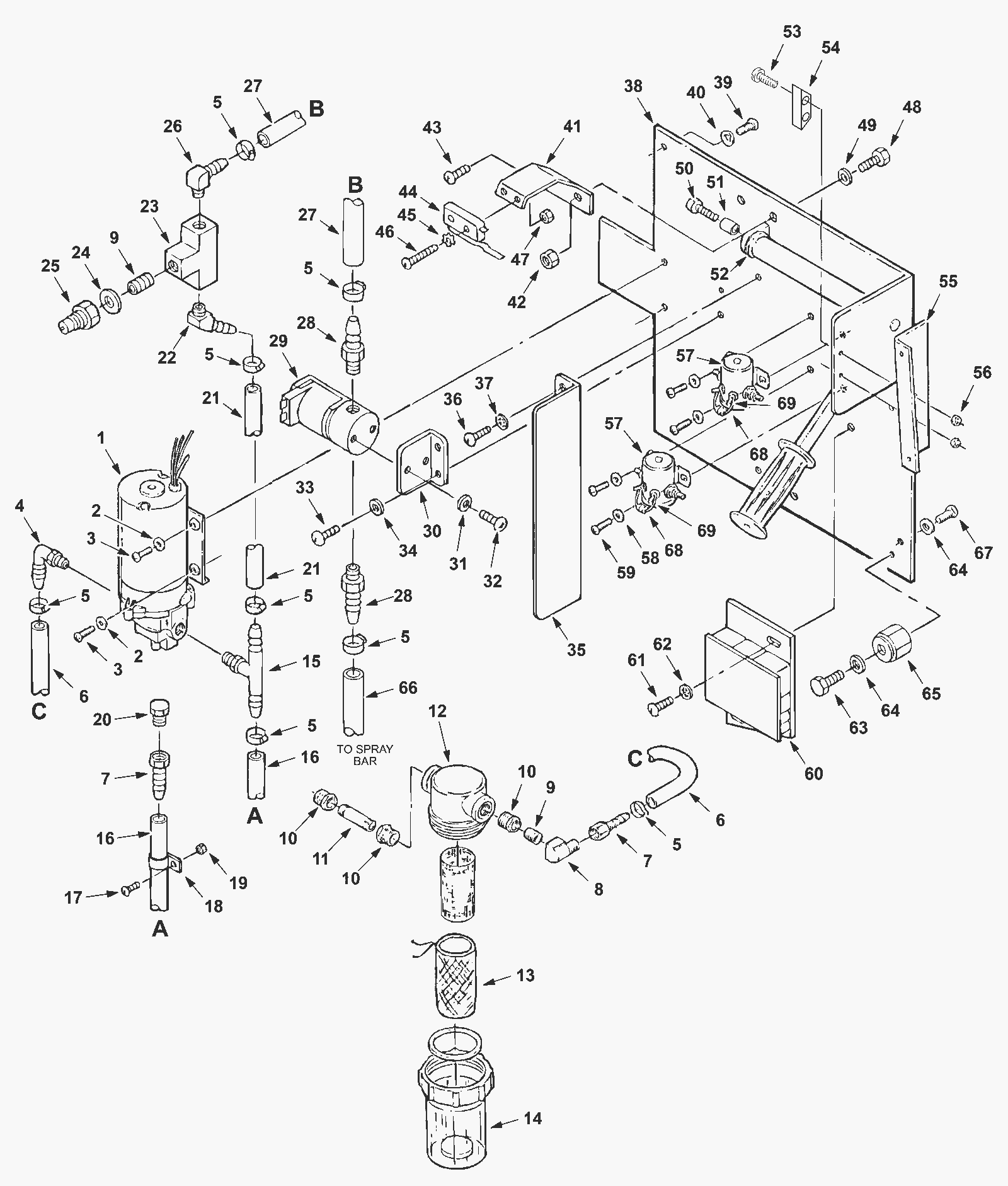

Plumbing Assembly

#PartDescription ReqNotesAvailability
1 175-6556 Pump 100psi 36v (OBSOLETE) 1
2 999-0016 Washer 1/4 flat plain finish 2
3 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel 2
4 175-6019 90 degree barbed elbow 1
5 175-6081 Hose clamp 15
6 175-6020 Braided hose 3/8 x 45 inch (gray) 1
7 175-6022 Brass fitting 1
8 175-2614 90 degree elbow fitting 1
9 175-6244 Nipple 1
10 175-1977 Fitting 1/4 x 3/8 3
11 175-6015 Nipple 1
12 175-5636 Inline strainer filter assembly (OBSOLETE) 1 (includes 13 and 14)
13 175-6557 Sleeve filter (OBSOLETE) 1
14 175-5639 Clear filter bowl 1
15 175-6558 Male tee fitting 3/8 x 3/8 1
16 175-6020 Braided hose 3/8 x 45 inch (gray) 1
17 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
18 175-0988 P clamp 1
19 999-0442 Nut 10-24 nylon insert lock stainless steel 1
20 175-1042 1/4 Inch hex brass plug fitting 1
21 175-6020 Braided hose 3/8 x 45 inch (gray) 1
22 175-3061 Hosebarb 2
23 175-6253 1/4 inch brass tee 1
24 175-1097 Washer flat stainless steel 1
25 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
26 175-2997 Elbow 1
27 175-6020 Braided hose 3/8 x 45 inch (gray) 1
28 175-1659 Fitting 2
29 175-6559 36V solenoid valve 1
30 175-6560 Solenoid bracket 1
31 999-1083 Washer #8 internal star lock stainless steel 2
32 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
33 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
34 999-0032 Washer 3/8 USS flat plain finish 4
35 175-6561 Divider plate 1
36 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 4
37 999-1026 Washer #10 internal lock stainless steel 4
38 175-6562 Control plate 1
39 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 5
40 999-0553 Washer 5/16 medium split lock stainless steel 4
41 175-6563 Revolving switch bracket 1
42 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
43 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
44 175-3116 Snap switch 1
45 999-0148 Washer #6 external star lock zinc plated 2
46 175-9182 Anti-foam valve 2
47 999-0144 Nut 6-32 k-lock zinc plated 2
48 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
49 999-0553 Washer 5/16 medium split lock stainless steel 2
50 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 1
51 175-6564 Bushing 1
52 175-6565 Polypropelene washer 2
53 175-3663 Screw 1/4-20 x 5/8 socket 2
54 175-6566 Lock plate 1
55 175-6567 Support bracket (OBSOLETE) 1
56 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
57 175-1183 36V solenoid 2
58 999-0393 Washer 3/16 flat aluminum 4
59 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 4
60 175-6568 Speed board with heat sink 1
61 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
62 999-1026 Washer #10 internal lock stainless steel 2
63 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
64 999-0632 Washer 1/4 split lock stainless steel 2
65 175-3226 Insulated stand off 1
66 175-6020 Braided hose 3/8 x 45 inch (gray) 1
67 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
68 175-2757 Diode with ring terminals (small) 2
69 175-3130 Terminal ring 4
