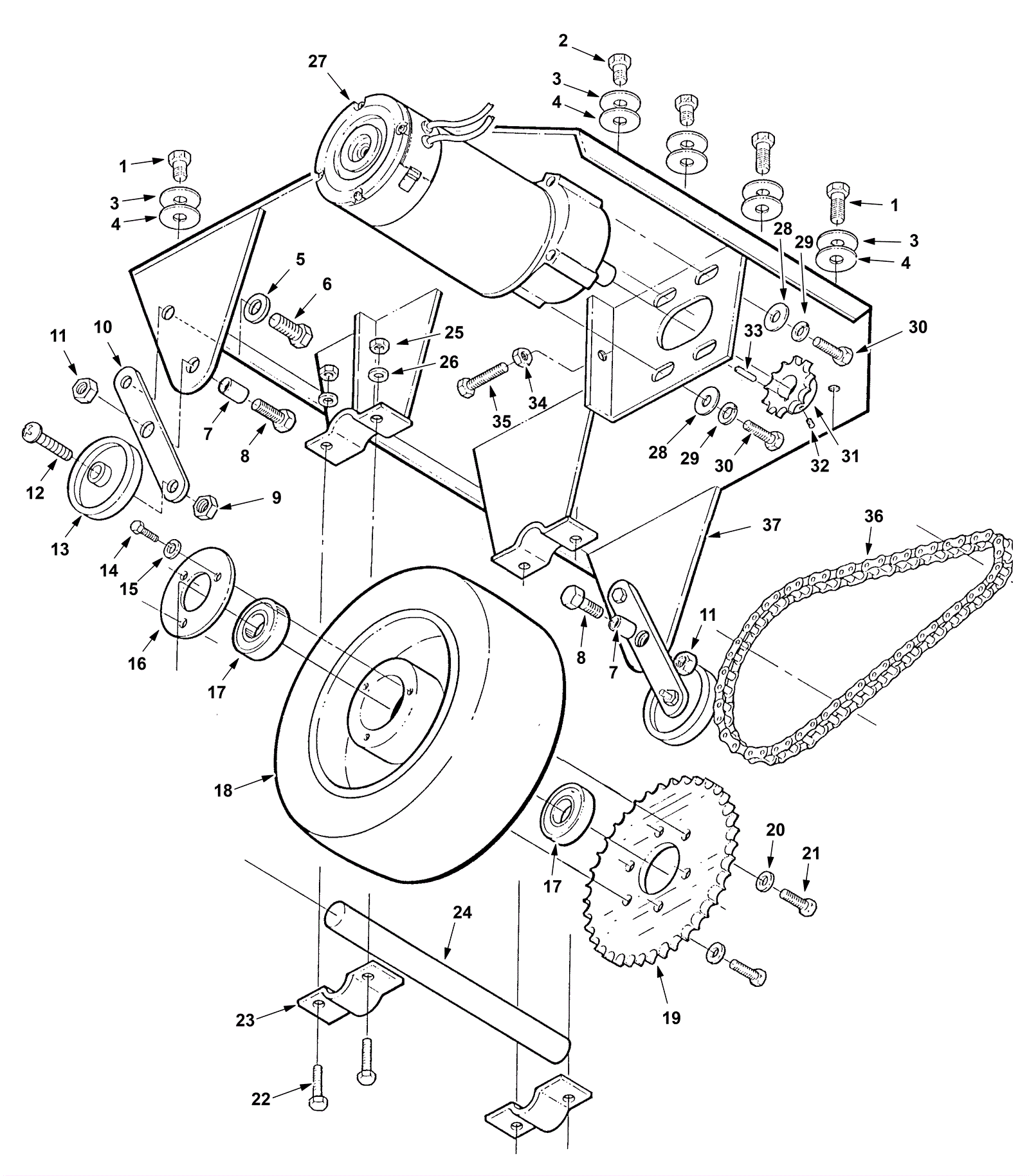

CONCORDE HP Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
2 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
3 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
4 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
5 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
6 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 2 ships same day
7 175-7422 5/8 Inch sleeve bushing $4.62 2 usually ships 5-16 days
8 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
9 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
10 175-7423 Black safety wheel plate $179.30 2 usually ships 1-5 days
11 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
12 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
13 175-2775 Wheel 4 x 1 3/8 inch $36.85 2 ships same day
14 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
15 999-0553 Washer 5/16 medium split lock stainless steel $0.99 9 ships same day
16 175-7424 Black wheel bearing retainer $12.10 1 usually ships 1-5 days
17 175-2781 Wheel bearing $33.88 2 usually ships 3-28 days
18 175-7425 Drive wheel 10 x 4 inches (OBSOLETE) $873.40 1 usually ships 5-16 days
19 175-7426 #40-48 Drive wheel sprocket $123.20 1 usually ships 1-5 days
20 999-0553 Washer 5/16 medium split lock stainless steel $0.99 6 ships same day
21 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 6 ships same day
22 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
23 175-2784 Axle clamp $13.92 2 usually ships 1-5 days
24 175-2783 Drive wheel shaft $134.31 1 usually ships 5-16 days
25 999-0170 Nut 3/8-16 hex plain finish $0.99 4 ships same day
26 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
27a 175-7427 Electric drive motor $891.00 1 usually ships 1-5 days
27b 175-7428 Carbon brush kit (pkg. of 2) (OBSOLETE) $94.71 4 usually ships 1-5 days
28 999-0032 Washer 3/8 USS flat plain finish $2.42 3 ships same day
29 999-0034 Washer 3/8 split lock plain finish $1.82 3 ships same day
30 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
31 175-2769 Sprocket (OBSOLETE) $125.40 1 usually ships 5-16 days
32 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
33 N/A Not available Call for price 1 usually ships 3-26 days
34 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
35 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
36 175-7429 #40 Nickle plated drive chain $94.82 1 usually ships 1-5 days
37 175-7430 Black wheel bracket assembly (OBSOLETE) $512.38 1 usually ships 1-5 days
