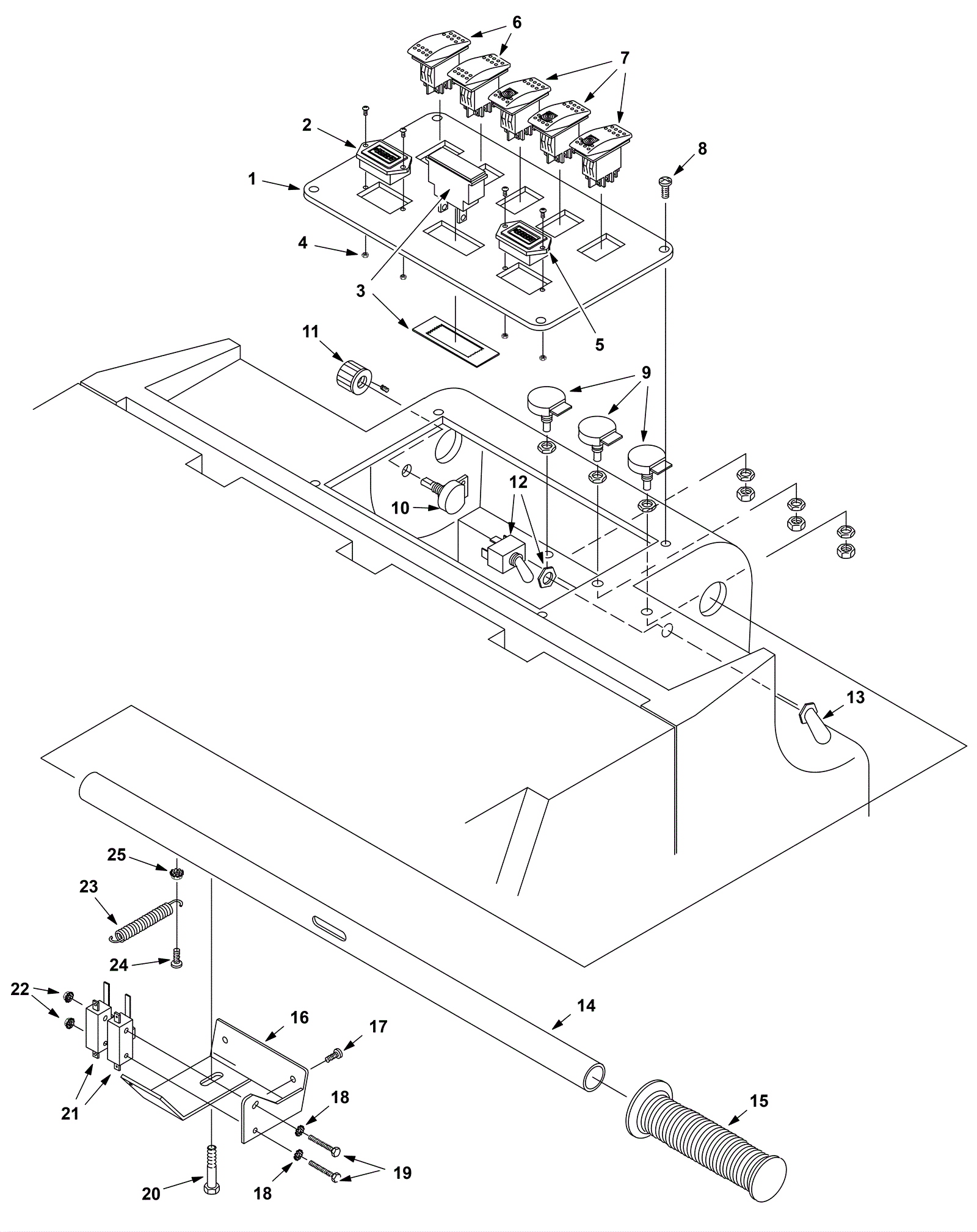

CONCORDE HP Control Board Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7431 Control console plate $50.90 1 usually ships 1-5 days
2 175-1213 Hour meter $116.10 2 usually ships 1-5 days
3 175-7432 Brush pressure meter (OBSOLETE) $25.20 1 usually ships 1-5 days
4 999-0144 Nut 6-32 k-lock zinc plated $0.99 4 ships same day
5 175-7433 LED battery gauge (OBSOLETE) $118.80 1 usually ships 1-5 days
6 175-7434 Rocker switch $56.90 2 usually ships 1-5 days
7 175-3098 Lighted on/off rocker switch $29.90 3 ships same day
8 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated $0.99 4 ships same day
9 175-3106 Lockable potentiometer $37.00 4 usually ships 5-16 days
10 175-3105 Potentiometer $97.30 1 usually ships 5-16 days
11 175-1163 Speed control knob $34.80 3 ships same day
12 175-3103 Toggle switch $55.20 1 ships same day
13 175-3104 Switch boot $18.10 1 ships same day
14 175-7435 Handle tube with dimple $40.90 1 usually ships 1-5 days
15 175-2703 Handle grip $3.70 2 usually ships 5-16 days
16 175-7436 Switch mount bracket $27.20 1 usually ships 1-5 days
17 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 2 ships same day
18 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
19 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
20 999-1132 Bolt 5/16-18 x 3 hex head stainless steel $2.19 1 ships same day
21 175-3116 Snap switch $12.50 2 usually ships 5-16 days
22 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
23 175-3113 Extension spring $2.70 1 usually ships 5-16 days
24 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
25 999-0356 Nut 10-24 lock stainless steel $0.99 1 ships same day
