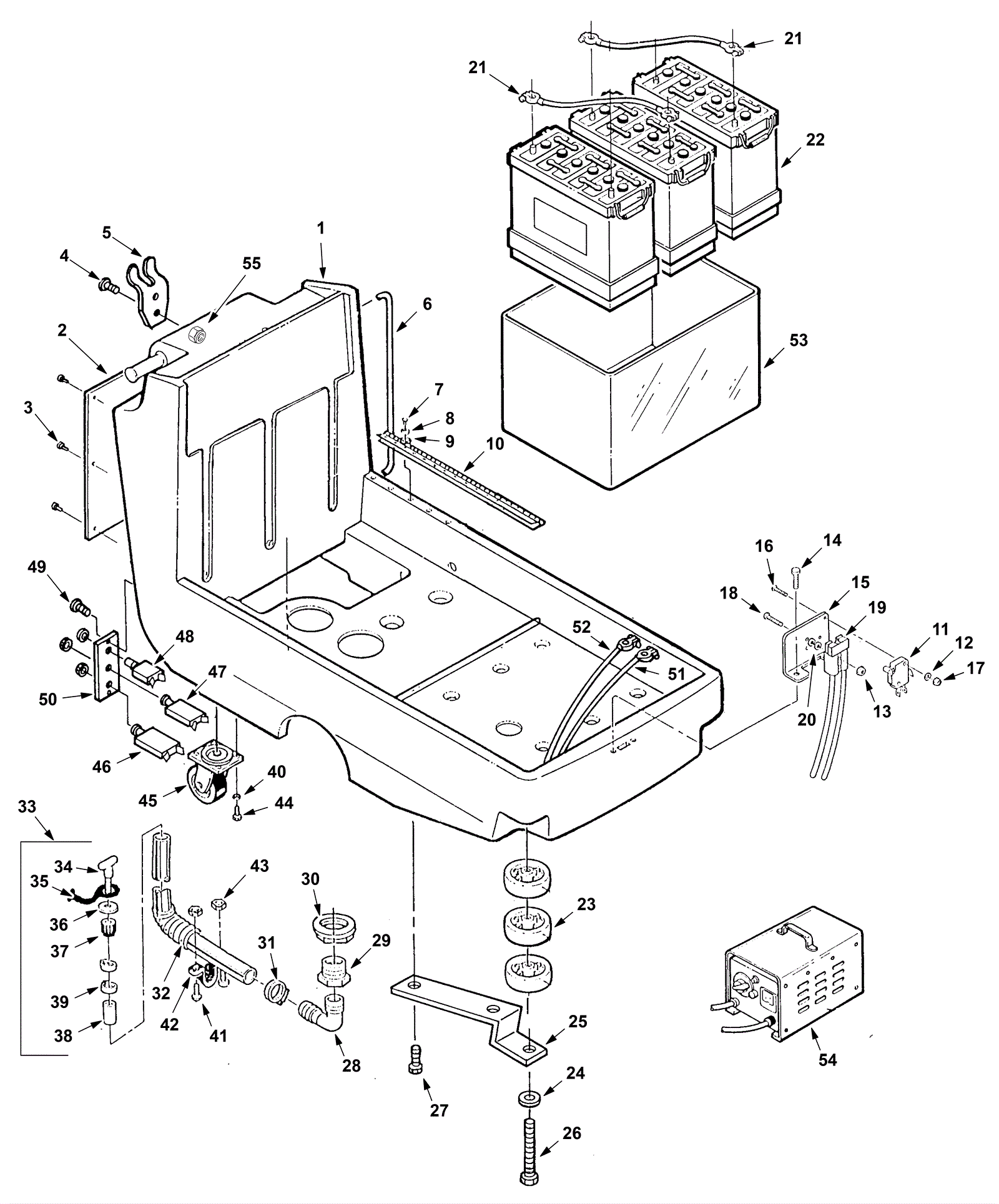

CONCORDE HP Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9180 Chassis (OBSOLETE) $595.00 1 usually ships 1-5 days
2a 175-7377 Rear panel $63.60 1 usually ships 1-5 days
2b 275-1360 Warning decal $10.00 1 usually ships 5-16 days
3 175-7378 Knob $11.30 5 usually ships 1-5 days
4 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated $0.99 2 ships same day
5 175-6069 Drain hose bracket $19.70 2 usually ships 5-16 days
6a 375-0078 10 1/2 foot PVC hose (clear) $15.10 1 usually ships 1-5 days
6b 175-7380 Gallon marker label $13.70 1 usually ships 1-5 days
7 999-0632 Washer 1/4 split lock stainless steel $0.99 9 ships same day
11 175-1199 Snap switch $19.00 1 ships same day
12 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
13 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
14 999-1118 Screw 12 x 3/4 pan head phillips stainless steel sheet metal $0.99 2 ships same day
15 175-7382 Plug mount plate $50.90 1 usually ships 1-5 days
16 999-0738 Screw M3-.5 x 16mm pan head phillips zinc $0.99 2 ships same day
17 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
18 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
19 991-2105 SB50 50amp charger plug with pins (gray) $5.38 1 ships same day
20 999-1215 Washer #6 SAE flat zinc plated $0.99 2 ships same day
21 175-2659 Battery cable 15 inch x 6 gauge - clamp style $52.80 2 usually ships 5-16 days
22 162-0057 12V 150Ah wet battery (SNSR) $402.47 3 ships same day
23 175-7383 Black rubber bumper wheel (OBSOLETE) $34.70 6 usually ships 1-5 days
24 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
25a 175-7384 Left bumper wheel bracket $43.30 1 usually ships 1-5 days
25b 175-7385 Right bumper wheel bracket $43.30 1 usually ships 1-5 days
26 999-1205 Screw 1/2-13 x 6 1/2 hex cap stainless steel $8.98 2 usually ships 1-5 days
27 175-9181 Bolt 5/16 x 1 lag (OBSOLETE) $2.16 4 usually ships 1-5 days
28 175-5126 Elbow fitting (OBSOLETE) $6.40 1 usually ships 1-5 days
29 175-7386 PVC adapter $9.20 1 usually ships 5-16 days
30 175-7387 Flange inlet with flats $38.00 1 usually ships 1-5 days
31 997-2007 Hose clamp $2.07 1 ships same day
32 175-7388 Drain hose $48.20 1 usually ships 1-5 days
33 175-6070 Drain plug assembly $75.90 1 (includes 34-39) usually ships 5-16 days
34 175-6071 Drain plug knob $14.70 1 usually ships 5-16 days
35 175-6072 Drain plug strap $16.00 1 usually ships 5-16 days
36 175-6162 Washer 3/8 flat fender stainless steel $3.50 1 usually ships 5-16 days
37 175-6073 Fitting $9.20 1 usually ships 5-16 days
38 175-6074 Drain hose sleeve $14.00 1 usually ships 5-16 days
39 175-1789 Hose clamp $4.50 2 ships same day
40 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
41 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
42 175-7389 Black hose support bracket (OBSOLETE) $16.00 1 usually ships 1-5 days
43 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
44 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
45 175-2768 Swivel caster wheel $92.50 2 usually ships 1-5 days
46 175-2761 10amp circuit breaker $98.80 1 usually ships 5-16 days
47 175-7287 60amp circuit breaker $154.30 1 usually ships 5-16 days
48 175-3132 10amp brush circuit breaker $25.90 1 usually ships 5-16 days
49 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
50a 175-7390 Circuit breaker mount plate $15.00 1 usually ships 1-5 days
50b 175-7391 Main brush drive label $20.80 1 usually ships 1-5 days
51 175-7392 Red battery cable $28.80 1 usually ships 1-5 days
52 175-7393 Black battery cable $30.40 1 usually ships 1-5 days
53 175-7394 Battery box $135.10 1 usually ships 1-5 days
54a 175-1204 36V 25amp battery charger with small SB50 gray plug $871.70 1 usually ships 5-16 days
55 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
