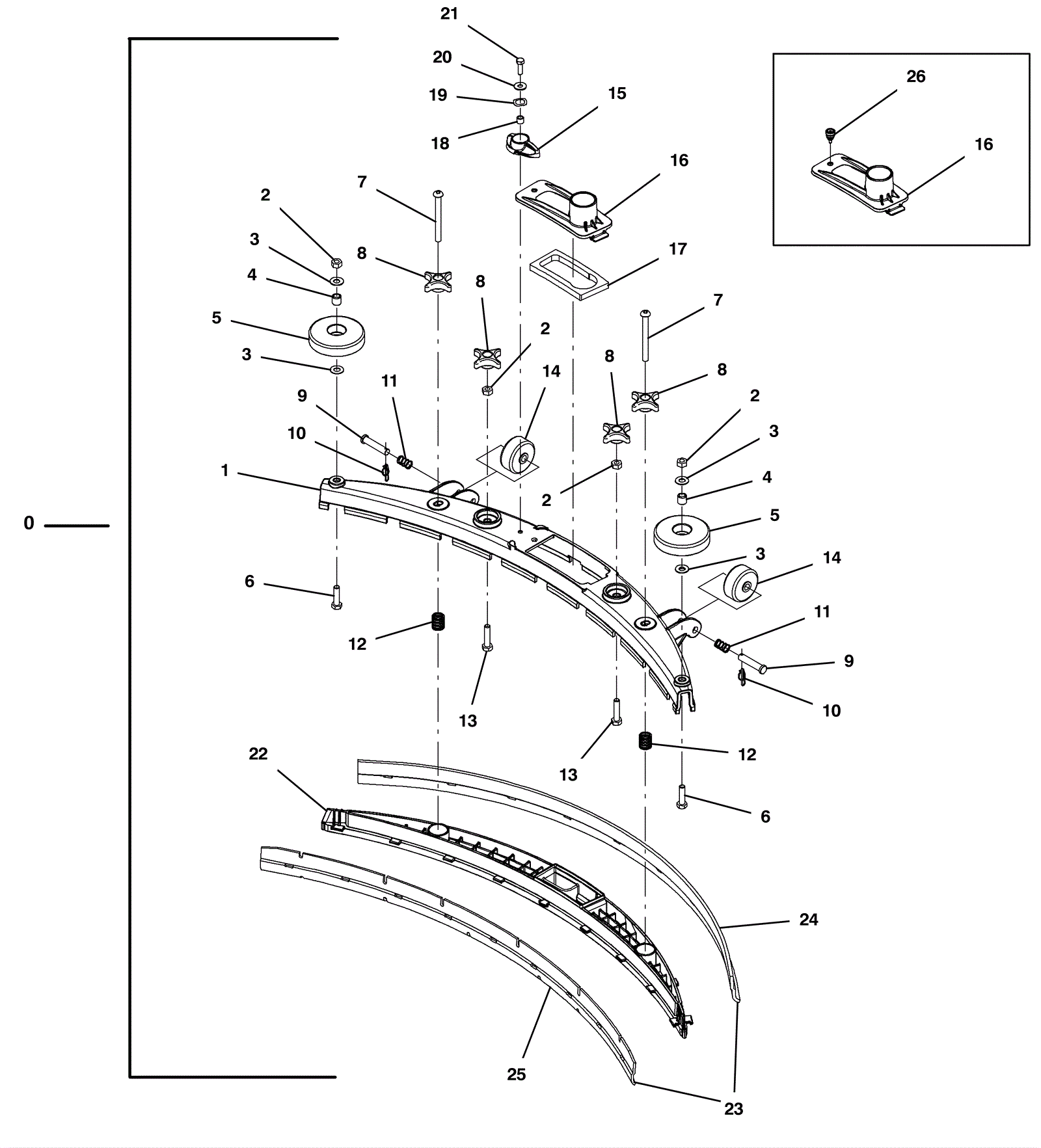

T300 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-0196 20 inch (500mm) squeegee assembly $599.40 1 (includes 1-23a, 24a, 25a) ships same day
1 375-0197 20 inch squeegee weldment $191.00 1 usually ships 5-16 days
2 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
4 175-2249 Sleeve $2.80 2 usually ships 5-16 days
5 175-7919 Guide wheel $4.50 2 ships same day
6 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
7 375-0262 Screw M8-1.25 x 80mm button socket stainless steel $15.20 2 usually ships 5-16 days
8 375-0261 Star knob M8-1.25 $8.50 4 ships same day
9 175-2592 Clevis Pin 0.37 D X 1.75 L $3.60 2 ships same day
10 375-0071 Cotter hair pin $1.30 2 ships same day
11 175-7931 Compression spring $3.60 2 ships same day
12 275-0143 Compression spring $3.60 2 ships same day
13 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
14 991-2013 Wheel $6.80 2 ships same day
15 375-3281 Squeegee knob $4.60 1 ships same day
16 375-0263 Squeegee water trap cover $7.20 1 ships same day
17 375-0265 Squeegee water trap gasket $3.00 1 usually ships 5-16 days
18 175-0152 Spacer $3.50 1 usually ships 5-16 days
19 175-3058 Washer 3/4 wave $3.50 1 usually ships 5-16 days
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
21 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
22 375-0198 20 inch (500mm) squeegee retainer $70.70 1 usually ships 5-16 days
23a 375-3274 Squeegee blade kit 20 inch (500mm) linatex $52.40 1 (includes 24a and 25a) ships same day
23b 375-3275 Squeegee blade kit 20 inch (500mm) urethane $90.00 1 (includes 24b and 25b) usually ships 5-16 days
23c 375-3276 Squeegee blade kit 20 inch (500mm) gum rubber $42.40 1 (includes 24c and 25c) ships same day
24a 375-0260 Squeegee blade 20 inch (500mm) linatex rear $20.70 1 ships same day
24b 375-1344 Squeegee blade 20 inch (500mm) urethane rear $63.00 1 usually ships 5-16 days
24c 375-1212 Squeegee blade 20 inch (500mm) gum rubber rear $21.30 1 ships same day
24d 991-9224 BLADE,SQGE,REAR RED(500MM) $19.60 1 (NON-OEM) ships same day
25a 375-0199 Squeegee blade 20 inch (500mm) linatex front $18.30 1 ships same day
25b 375-1342 Squeegee blade 20 inch (500mm) urethane front $43.30 1 usually ships 5-16 days
25c 375-1343 Squeegee blade 20 inch (500mm) gum rubber front $12.00 1 ships same day
26 375-0264 Screw M5 captive $7.50 1 ships same day
