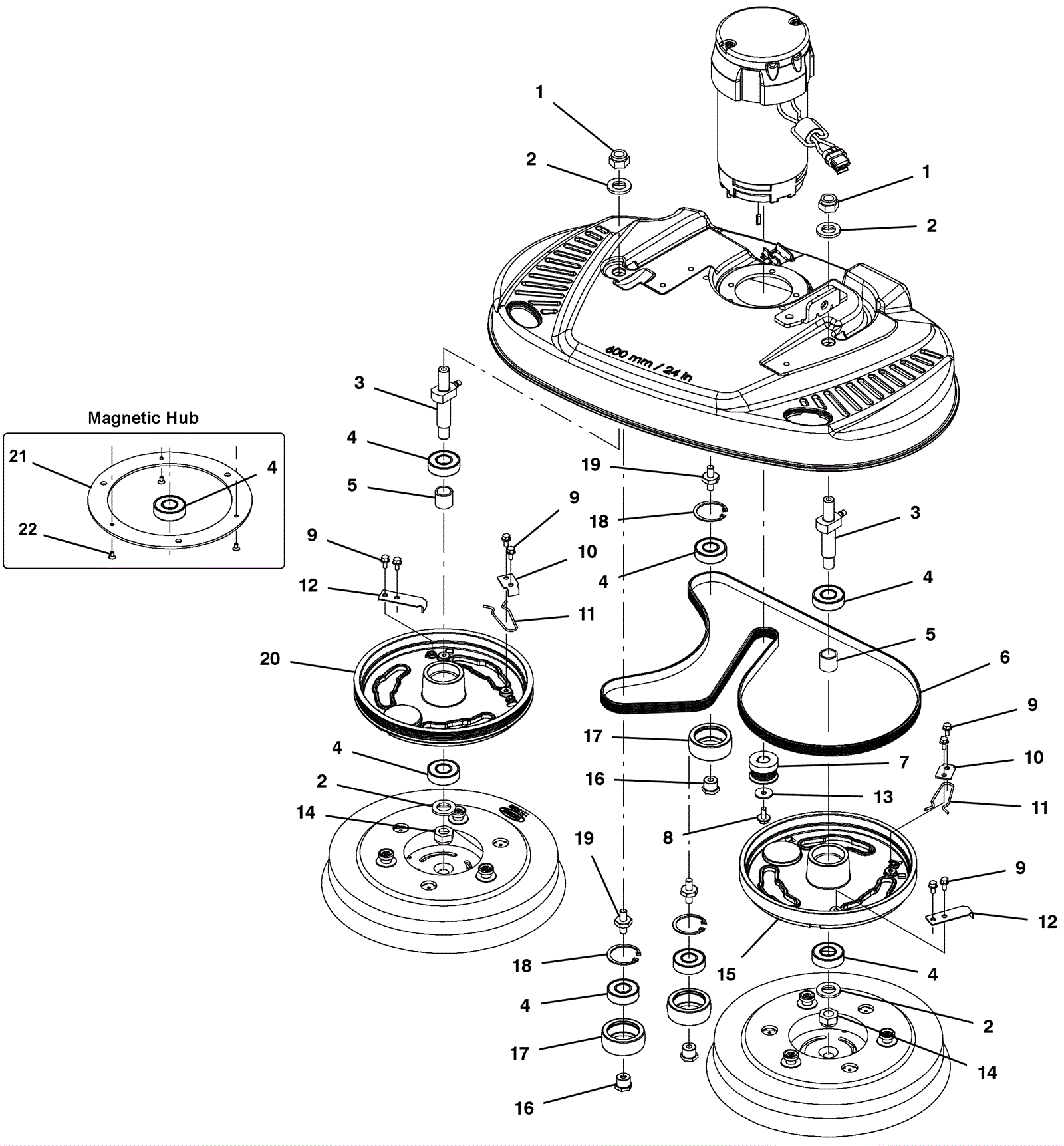

SPEED SCRUB 300 Scrub Head Assembly - 24 inch - Dual Disk - Lower

#PartDescriptionPriceReqNotesAvailability
1 375-0063 Nut M14 x 2mm hex lock (Tennant Industrial) $4.84 2 usually ships 5-16 days
2 275-1469 Shaft spacer $8.03 4 usually ships 5-16 days
3 375-0064 Pulley shaft weldment $224.07 2 usually ships 5-16 days
4 375-0036 Ball bearing $20.79 7 ships same day
5 275-9918 Tube $6.27 2 usually ships 5-16 days
6 275-9917 Drive belt $121.77 1 usually ships 5-16 days
7 375-0065 Sheave $92.62 1 usually ships 5-16 days
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
9 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 8 (3-lug hub) ships same day
10 175-7921 Brush plate clamp $20.79 2 (3-lug hub) ships same day
11 175-7924 Spring clip $6.60 2 (3-lug hub) ships same day
12 275-9920 Release stop $18.04 2 (3-lug hub) usually ships 5-16 days
13 175-1424 Washer flat $3.96 1 usually ships 5-16 days
14 375-0063 Nut M14 x 2mm hex lock (Tennant Industrial) $4.84 2 usually ships 5-16 days
15a 275-9919 Drive hub $61.27 1 (3-lug hub) usually ships 5-16 days
15b 375-0066 Magnetic drive hub $127.82 1 (magnetic hub) usually ships 5-16 days
16 275-9916 Spacer $11.99 3 usually ships 5-16 days
17 275-9915 Idler pulley $67.21 3 usually ships 5-16 days
18 275-9914 Retaining ring $23.21 3 usually ships 5-16 days
19 375-0067 Stud $57.42 3 usually ships 5-16 days
20a 275-9921 Drive hub $48.46 1 (3-lug hub) ships same day
20b 375-0069 Grooved magnetic drive hub $127.82 1 (magnetic hub) usually ships 5-16 days
21 375-0068 Magnetic hub ring $24.09 2 (magnetic hub) ships same day
22 175-4251 Screw M4 x 8mm flat head phillips $3.19 6 (magnetic hub) ships same day
