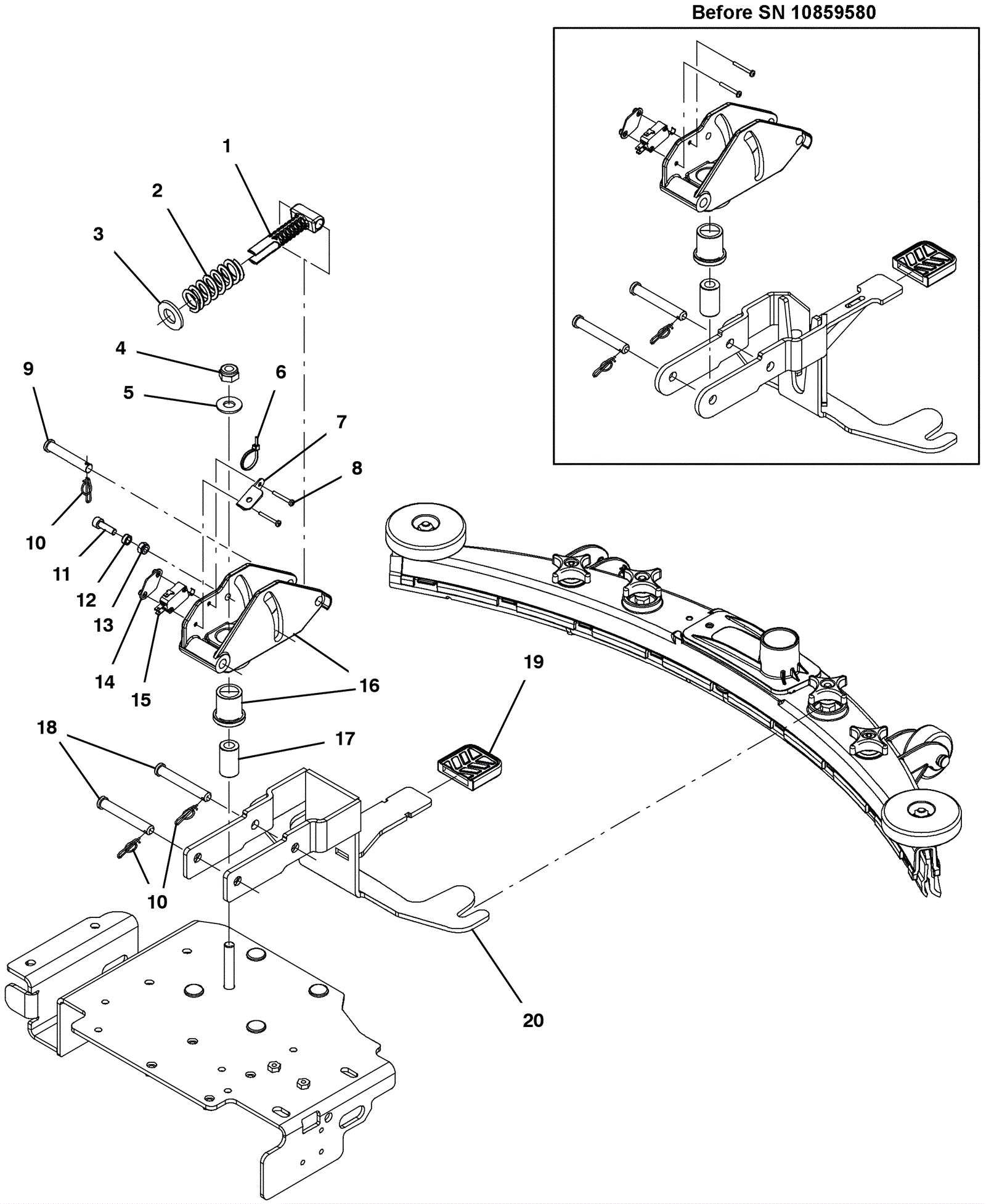

SPEED SCRUB 300 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0272 Spring guide pin $6.27 1 usually ships 10-16 days
2 375-0271 Spring $13.20 1 ships same day
3 275-3215 WASHER, THRUST, 0.63B 1.25D 0.13W $7.37 1 usually ships 10-16 days
4 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
5 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 1 ships same day
6 175-7795 Cable tie $5.15 1 (after SN 10859579) ships same day
7 475-0765 BRACKET, RETAINING, WIRE [T300] $11.22 1 (after SN 10859579) usually ships 10-16 days
8 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
9 275-2176 PIN, CLEVIS, 0.37D X 2.12L $5.28 1 usually ships 10-16 days
10 375-0071 Cotter hair pin $1.98 3 ships same day
11 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
12 175-0777 P/M sleeve $5.50 1 usually ships 10-16 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
14 175-7839 Switch plate $36.08 1 usually ships 10-16 days
15 375-0226 Mircroswitch $11.11 1 ships same day
16 375-1346 Squeegee lift bracket kit $197.34 1 usually ships 10-16 days
17 375-0269 Sleeve $7.37 1 usually ships 10-16 days
18 175-3341 Clevis pin $5.28 2 usually ships 10-16 days
19 375-0266 Lift pedal cover $12.10 1 usually ships 10-16 days
20 375-1345 Squeegee weldment bracket $198.99 1 ships same day
