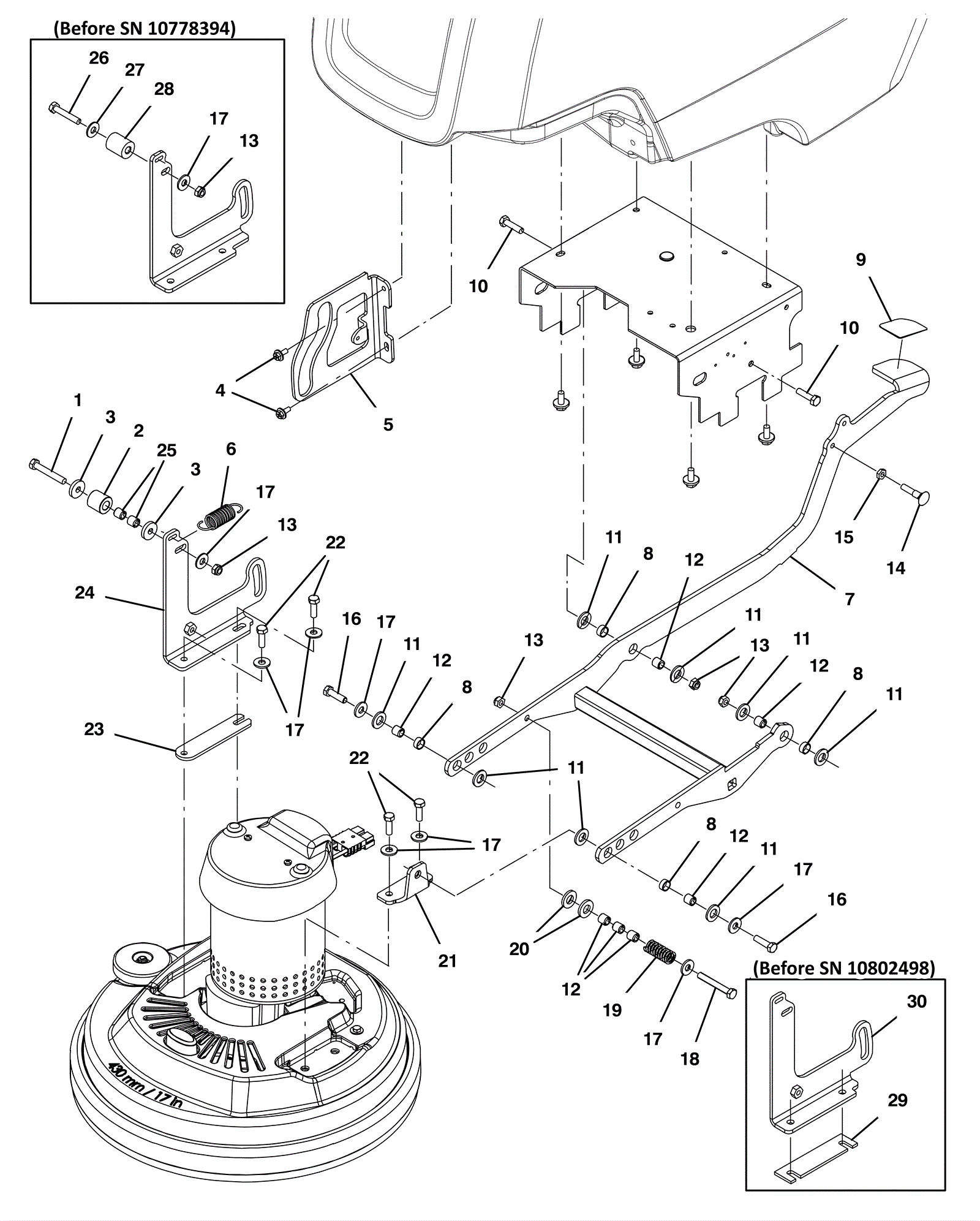

SPEED SCRUB 300 Scrub Head Lift Assembly - 17 and 20 inch -Disk

#PartDescriptionPriceReqNotesAvailability
1 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 (after SN 10778393) ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (after SN 10778393) ships same day
3 175-7911 Roller $9.68 1 (after SN 10778393) usually ships 5-16 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
5 375-0252 Guide bracket $32.56 1 usually ships 5-16 days
6 275-5918 Extension spring $6.60 1 usually ships 5-16 days
7 275-6649 Scrub head lift kit $250.58 1 (includes 8) usually ships 5-16 days
8 175-4720 Bearing $9.68 8 usually ships 5-16 days
9 375-1347 Pedal pad $4.07 1 usually ships 5-16 days
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
11 999-9214 Washer M8 flat nylon $0.99 8 usually ships 11-24 days
12 175-2249 Sleeve $3.08 7 ships same day
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
14 275-6648 Bolt $1.65 1 (before 2/2020) usually ships 5-16 days
15 175-4006 Nut M8 x 1.25 hex jam $3.30 1 (before 2/2020) usually ships 5-16 days
16 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
17 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
18 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 ships same day
19 175-0944 Spring $9.24 1 usually ships 5-16 days
20 175-0939 Thrust washer $4.95 2 ships same day
21 375-0255 Mounting bracket $34.21 1 usually ships 1-5 days
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
23 375-3187 Spacer head $13.75 1 (after SN 10802497) (push model) usually ships 5-16 days
24 375-3188 Bracket weldment $37.29 1 (after SN 10802497) usually ships 5-16 days
25 175-2249 Sleeve $3.08 2 (after SN 10778393) ships same day
26 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 (before SN 10778394) ships same day
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 (before SN 10778394) ships same day
28 375-0251 Roller $5.39 1 (before SN 10778394) usually ships 1-5 days
29 275-5917 Spacer plate $11.55 1 (before SN 10802498) (push model) usually ships 5-16 days
30 375-0256 Mounting bracket $44.44 1 (before SN 10802498) (replaced by 24) usually ships 1-5 days
