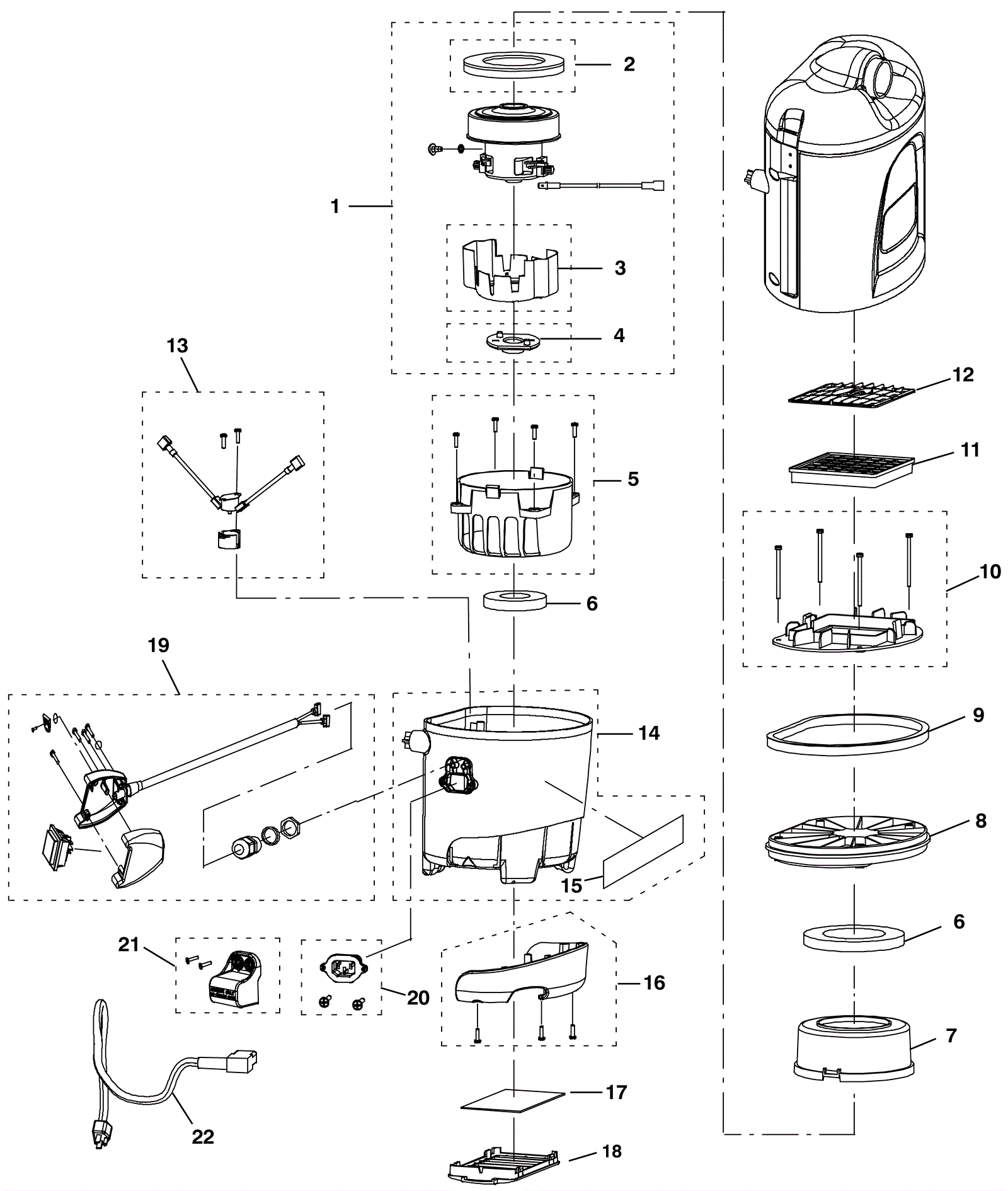

V BP 10 Lower Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6754 120V vacuum motor assembly $241.23 1 (includes 2-4) usually ships 10-16 days
2 275-6240 Gasket $20.35 1 usually ships 1-5 days
3 275-6228 Motor shroud (bottom) $12.10 1 usually ships 10-16 days
4 275-6229 Motor mount (bottom) $8.03 1 usually ships 10-16 days
5 275-6231 Bottom motor shroud $20.02 1 usually ships 10-16 days
6 275-6232 Motor gasket kit $20.35 1 usually ships 10-16 days
7 275-6239 Top motor shroud $13.20 1 usually ships 10-16 days
8 275-6236 Motor cover $16.61 1 usually ships 1-5 days
9 275-6235 Seal $10.67 1 usually ships 1-5 days
10 275-6234 Filter plate $15.51 1 usually ships 1-5 days
11 275-6211 HEPA filter $34.65 1 ships same day
12 275-6230 Filter frame $8.14 1 usually ships 1-5 days
13 275-6233 Thermal switch $22.77 1 usually ships 10-16 days
14 275-6756 Base $76.12 1 (includes 15) usually ships 10-16 days
15 275-6757 TRUE-HEPA decal $8.36 1 usually ships 1-5 days
16 275-6242 Bumper $12.10 1 usually ships 1-5 days
17 275-6210 Exhaust filter (pkg of 6) $32.56 1 ships same day
18 275-6243 Filter frame $11.11 1 usually ships 1-5 days
19 275-6758 Harness $75.68 1 ships same day
20 275-6759 Cord receptacle $19.91 1 ships same day
21 275-6760 Cord retainer bracket $12.32 1 ships same day
22 275-6761 50 foot power cord (yellow) $163.79 1 ships same day
