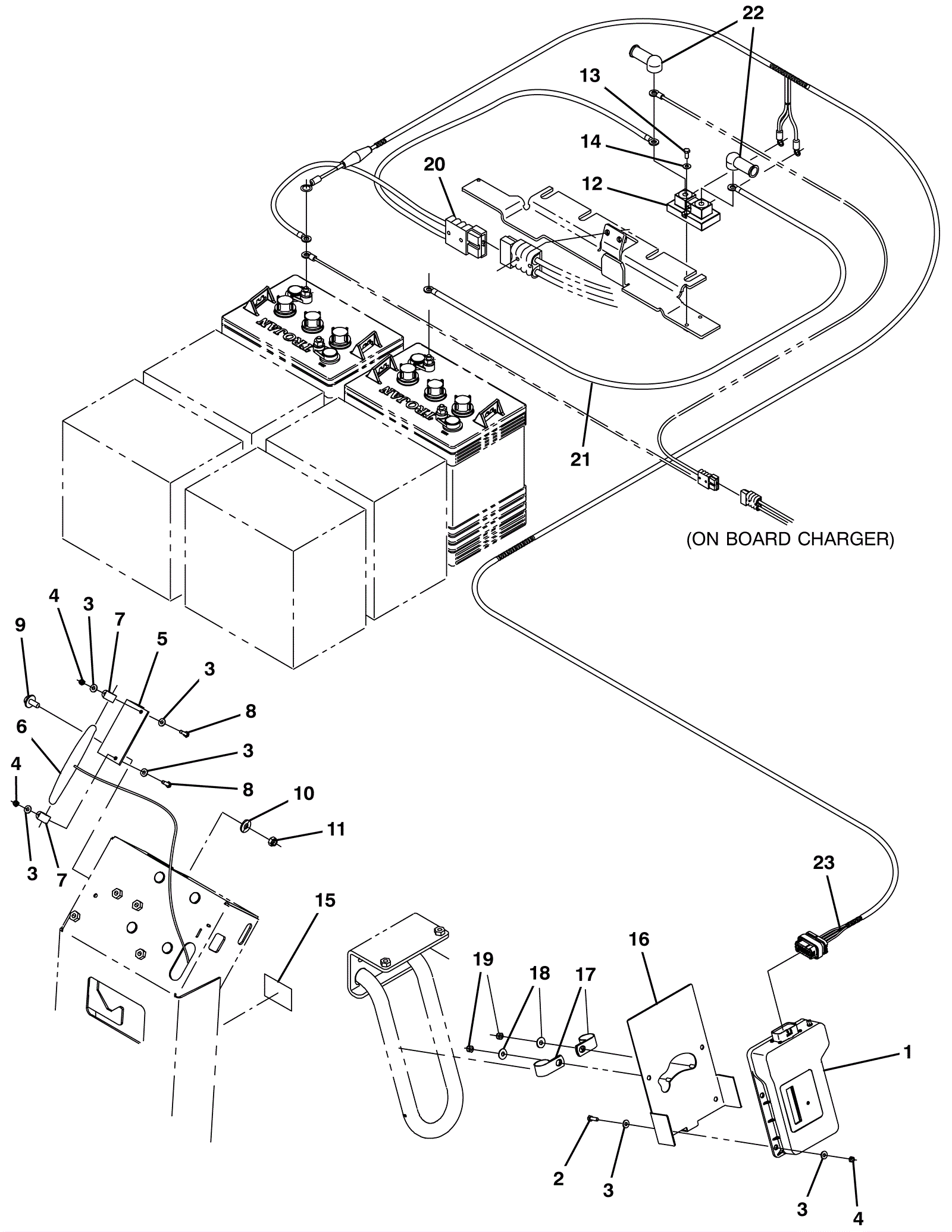

T12 Telemetry Assembly - Before SN 10967791

#PartDescriptionPriceReqNotesAvailability
1 275-2615 Telemetry control box assembly kit $2,207.40 1 usually ships 1-5 days
2 175-6939 Screw M5 x 16mm stainless steel $3.70 4 ships same day
3 999-0998 Washer #10 flat stainless steel $0.99 12 ships same day
4 175-2894 Nut M5-.8 hex nylon locking $3.04 6 usually ships 5-16 days
5 275-7896 Antennna mounting angle (Tennant Industrial) $28.67 1 usually ships 1-5 days
6 275-7897 Antenna $61.93 1 usually ships 1-5 days
7 175-0988 P clamp $3.83 2 usually ships 5-16 days
8 175-6939 Screw M5 x 16mm stainless steel $3.70 2 ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
12 275-7898 250amp shunt $98.78 1 usually ships 1-5 days
13 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel $3.96 2 usually ships 5-16 days
14 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
15 275-7899 Telemetry decal $69.19 1 usually ships 1-5 days
16 275-7900 Box mounting bracket $20.79 1 usually ships 1-5 days
17 175-2260 P clamp $4.88 2 usually ships 5-16 days
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
19 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
20 275-7901 Cable assembly $247.72 1 usually ships 1-5 days
21 275-7902 Black cable $29.59 1 usually ships 1-5 days
22 175-1103 Battery cable boot (black) $5.50 2 ships same day
23a 275-7903 Wire harness $134.42 1 (includes 23b) usually ships 1-5 days
23b 275-7904 Fuse (Tennant Industrial) $2.40 1 usually ships 1-5 days
