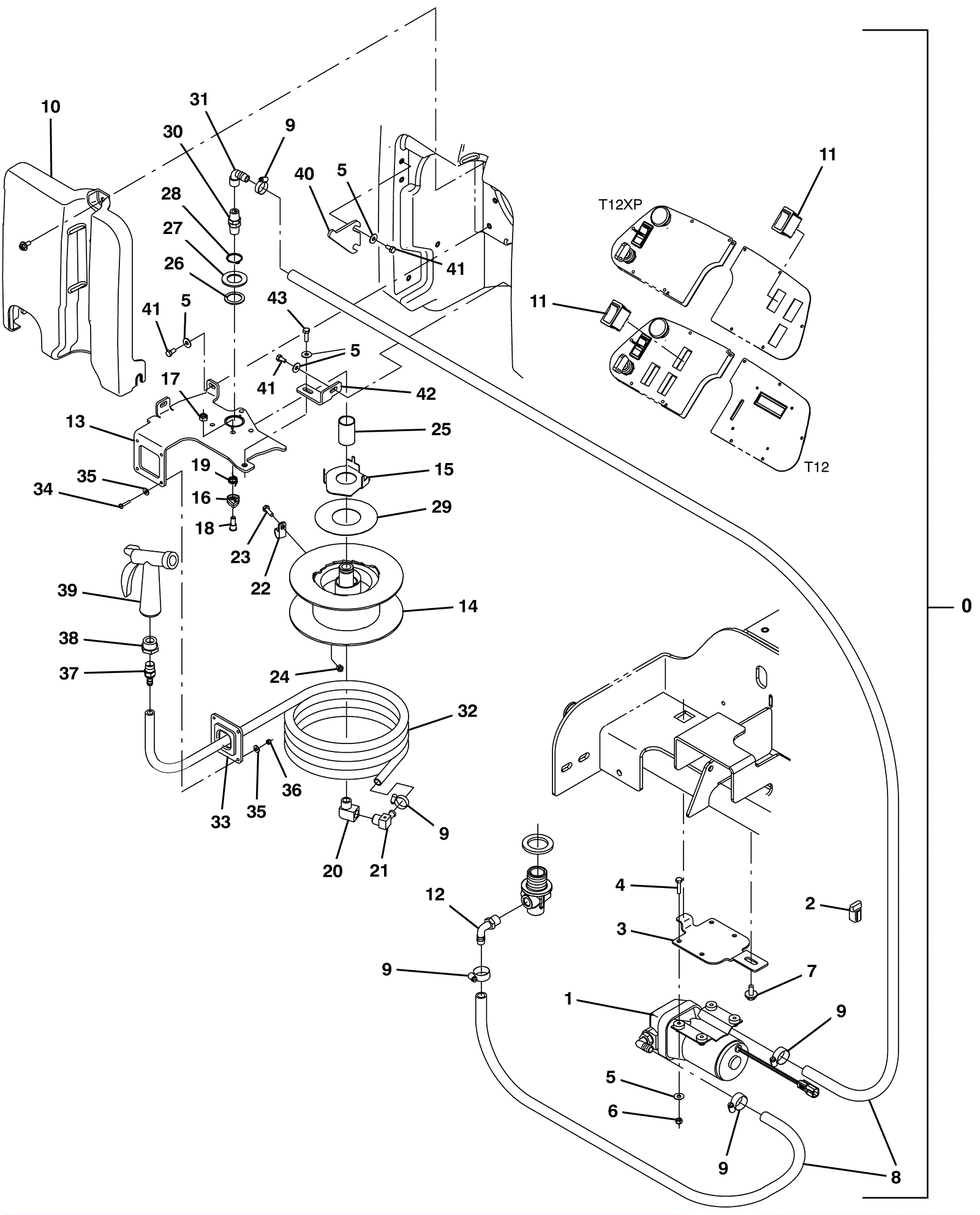

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-7851
|
Spray hose kit |
1 |
(includes 1-43) |
|
1 |
275-7852
|
36V solution pump (Tennant Industrial) |
1 |
|
|
2 |
275-7853
|
Diode plug (Tennant Industrial) |
1 |
|
|
3 |
275-7854
|
Spray pump bracket |
1 |
|
|
4 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
7 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
1 |
|
|
8a |
175-9703
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 08FT, CLR (Tennant Industria |
1 |
(before SN 30000000) |
|
8b |
275-7855
|
Spray hose |
8 |
(after SN 29999999) |
|
9 |
175-6081
|
Hose clamp |
5 |
|
|
10 |
275-7856
|
Vacuum fan access cover |
1 |
|
|
11 |
275-0120
|
DPDT rocker switch |
1 |
|
|
12 |
175-5241
|
90 degree elbow |
1 |
|
|
13 |
275-7857
|
Hose reel mounting plate weldment |
1 |
|
|
14 |
275-7858
|
Hose reel assembly |
1 |
|
|
15 |
275-7859
|
Washer |
1 |
|
|
16 |
275-7860
|
Ratchet pawl |
1 |
|
|
17 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
18 |
275-7861
|
Bolt M8 x 1.25 (Tennant Industrial) |
1 |
|
|
19 |
275-7862
|
Hose reel torsion spring |
1 |
|
|
20 |
275-8231
|
FITTING, BRS, E90, PF06/PM06, SPCL (Tennant Industrial) |
1 |
|
|
21 |
275-7863
|
90 degree brass elbow (Tennant Industrial) |
1 |
|
|
22 |
275-0559
|
P clamp |
1 |
|
|
23 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
24 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
25 |
275-7864
|
Bushing (Tennant Industrial) |
1 |
|
|
26 |
275-7865
|
Washer 1.02 x 1.38 plastic thrust (Tennant Industrial) |
1 |
|
|
27 |
275-7866
|
Washer 1.02 x 1.75 flat (Tennant Industrial) |
1 |
|
|
28 |
175-3294
|
Retaining ring |
1 |
|
|
29 |
275-7867
|
Thrust washer (Tennant Industrial) |
1 |
|
|
30 |
275-7868
|
Brass swivel fitting |
1 |
|
|
31 |
275-7869
|
90 degree brass elbow (Tennant Industrial) |
1 |
|
|
32 |
275-7855
|
Spray hose |
1 |
|
|
33 |
275-7871
|
Hose guide |
1 |
|
|
34 |
175-5326
|
Screw M4-.7 x 20mm pan head phillips stainless steel |
4 |
|
|
35 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
36 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
37 |
275-7872
|
Swivel fitting (Tennant Industrial) |
1 |
|
|
38 |
275-7873
|
Brass fitting |
1 |
|
|
39 |
275-7874
|
Spray gun nozzle |
1 |
|
|
40 |
275-7875
|
Nozzle hook |
1 |
|
|
41 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
6 |
|
|
42 |
275-7876
|
Hose reel mounting plate |
1 |
|
|
43 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
