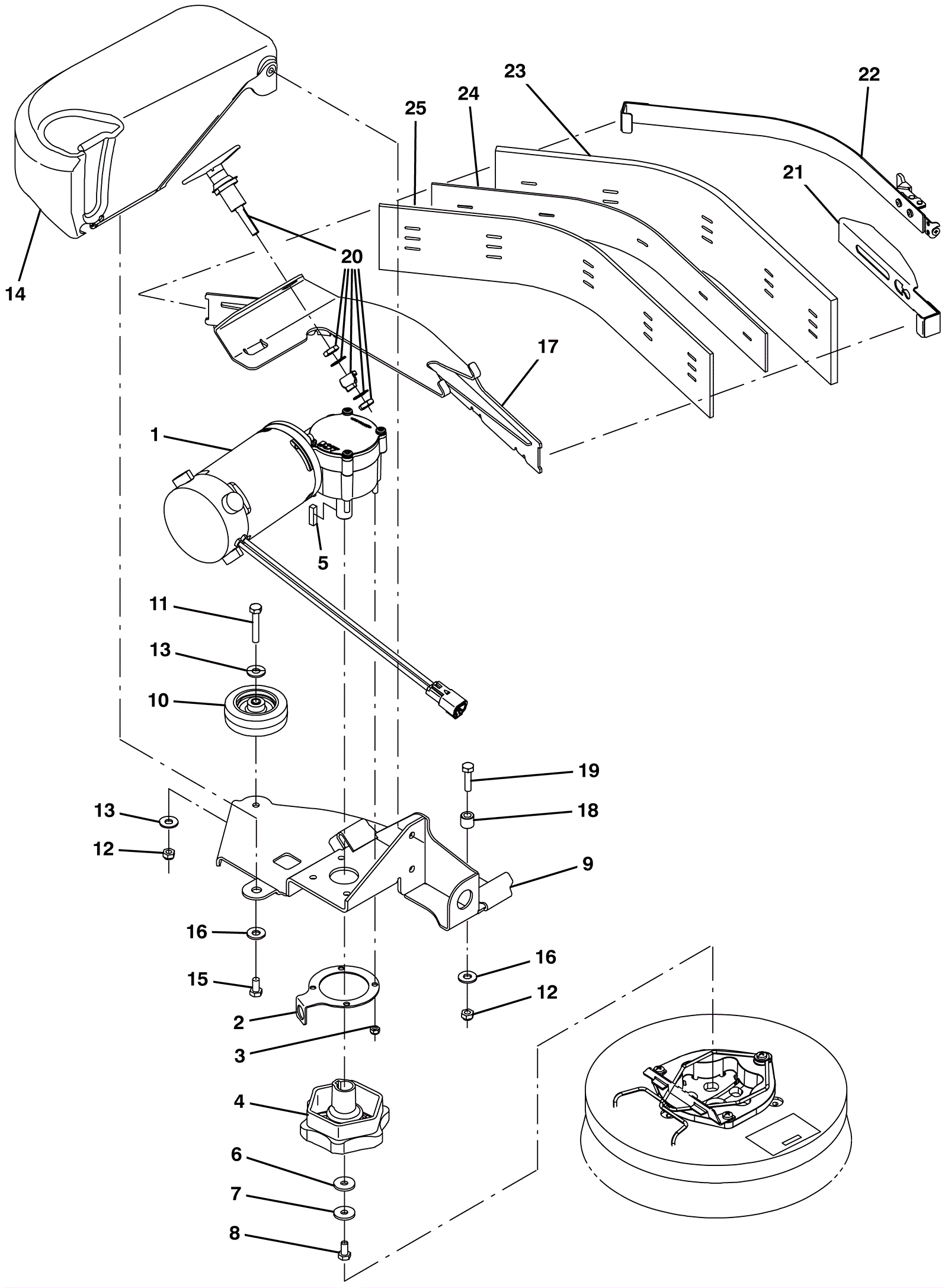

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
275-7810
|
36V gear motor |
$866.03
|
1 |
(includes 1b) |
usually ships 5-16 days |
1b |
375-2630
|
Motor brush |
$76.12
|
1 |
|
usually ships 5-16 days |
2 |
275-7812
|
Support plate |
$17.16
|
1 |
|
usually ships 1-5 days |
3 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
4 |
175-9525
|
Brush drive hub |
$189.86
|
1 |
|
ships same day |
5 |
175-5356
|
Square keyway |
$4.09
|
1 |
|
ships same day |
6 |
175-7920
|
Washer M8 flat stainless steel |
$4.09
|
1 |
|
ships same day |
7 |
999-1407
|
Washer 5/16 belleville |
$3.04
|
1 |
|
ships same day |
8 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
1 |
|
ships same day |
9 |
275-7813
|
Deck plate weldment |
$147.40
|
1 |
|
usually ships 5-16 days |
10 |
175-0117
|
Guide wheel with bushing |
$9.90
|
1 |
|
ships same day |
11 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
$4.88
|
1 |
|
ships same day |
12 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
$1.08
|
2 |
|
ships same day |
13 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
14 |
275-7814
|
Motor cover |
$214.39
|
1 |
|
usually ships 1-5 days |
15 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
$1.74
|
1 |
|
ships same day |
16 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
17 |
275-7815
|
Squeegee holder weldment |
$78.43
|
1 |
|
usually ships 5-16 days |
18 |
175-9347
|
Sleeve |
$5.50
|
1 |
|
usually ships 5-16 days |
19 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
$2.09
|
1 |
|
ships same day |
20 |
275-7816
|
Squeegee compression latch |
$125.40
|
1 |
|
usually ships 5-16 days |
21 |
275-7817
|
Squeegee retainer weldment |
$39.49
|
1 |
|
usually ships 5-16 days |
22 |
275-7818
|
Squeegee retainer weldment with a latch |
$44.33
|
1 |
|
usually ships 5-16 days |
23a |
275-7819
|
Squeegee blade linatex |
$75.57
|
1 |
|
usually ships 5-16 days |
23b |
275-7820
|
Squeegee blade urethane |
$153.45
|
1 |
(optional) |
usually ships 1-5 days |
23c |
275-7821
|
Squeegee blade gum |
$27.50
|
1 |
(optional) |
usually ships 5-16 days |
24 |
275-7822
|
Squeegee blade spacer |
$10.01
|
1 |
|
usually ships 5-16 days |
25a |
275-7823
|
Inner squeegee blade |
$58.85
|
1 |
|
usually ships 5-16 days |
25b |
275-7824
|
Inner squeegee blade urethane |
$62.70
|
1 |
(optional) |
usually ships 1-5 days |
25c |
275-7825
|
Inner squeegee blade gum |
$27.50
|
1 |
(optional) |
usually ships 1-5 days |
