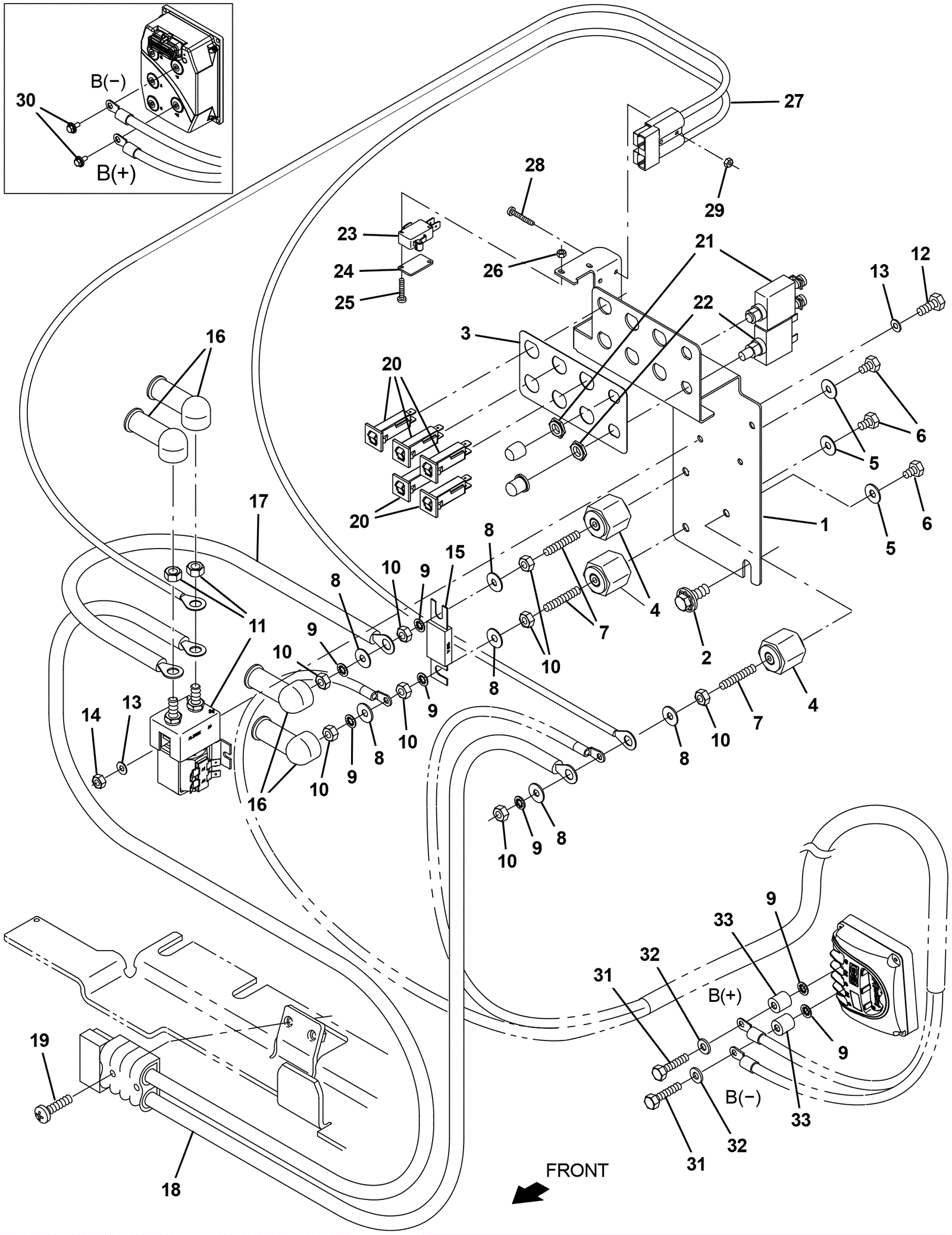

T12 Electrical Contactor and Wire Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7744 Electrical plate $80.08 1 usually ships 1-5 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 ships same day
3 275-7745 Circuitbreaker decal $11.22 1 usually ships 1-5 days
4 175-3226 Insulated stand off $9.57 3 ships same day
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
6 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock $3.04 3 usually ships 1-5 days
7 175-3227 Threaded rod $7.59 3 usually ships 1-5 days
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
9 999-0238 Washer 1/4 internal star lock zinc plated $0.99 7 ships same day
10 999-1277 NUT, HEX, STD, .25-20, SS (Tennant Industrial) $5.00 8 usually ships 1-5 days
11 175-9943 36 volt contactor $168.52 1 usually ships 5-16 days
12 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 2 ships same day
13 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
14 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
15 175-9944 80amp fuse $64.24 1 usually ships 1-5 days
16 275-7746 Boot (red) (Tennant Industrial) $8.17 4 usually ships 1-5 days
17 275-7747 Cable (brown) $17.05 1 usually ships 1-5 days
18 275-7748 Battery cable $55.33 1 usually ships 5-16 days
19 275-5062 Screw M6-1 x 35mm hex head $4.09 2 usually ships 5-16 days
20 275-5483 2.5amp circuit breaker $13.09 5 usually ships 5-16 days
21 991-1631 25amp circuit breaker $14.10 1 ships same day
22 275-7749 60amp circuitbreaker $110.33 1 usually ships 5-16 days
23 175-1199 Snap switch $21.34 1 ships same day
24 175-1200 Switch backing plate $13.20 1 ships same day
25 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
26 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
27 275-7750 Cable assembly (Tennant Industrial) $56.84 1 usually ships 5-16 days
28 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) $4.40 2 usually ships 5-16 days
29 175-3224 Nut 6-32 hex lock $4.09 2 usually ships 5-16 days
30 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 (before SN 10863998) ships same day
31 175-0574 Bolt 6mm-1 x 35 hex head $4.09 2 (after SN 10863997) usually ships 5-16 days
32 999-0016 Washer 1/4 flat plain finish $0.99 2 (after SN 10863997) ships same day
33 575-0375 SLEEVE, P/M, 0.25B 0.38D 0.8L (Tennant Industrial) $12.17 2 (after SN 10863997) usually ships 5-16 days
