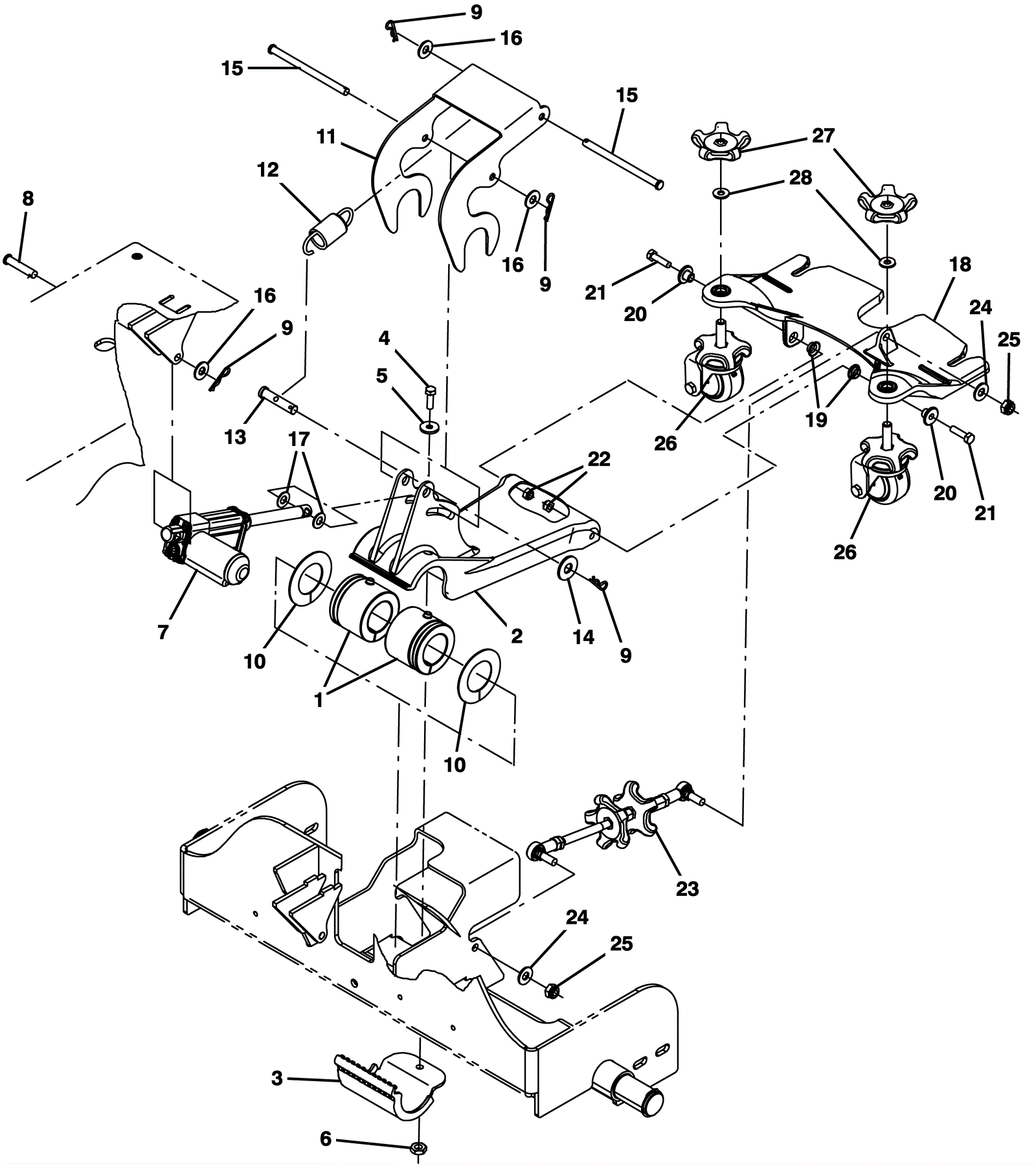

T12 Rear Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7707 Flex bushing (Tennant Industrial) $22.67 2 usually ships 1-5 days
2 275-7708 Squeegee arm lift (Tennant Industrial) $136.36 1 usually ships 1-5 days
3 275-7709 Pivot clamp (Tennant Industrial) $18.34 1 usually ships 5-16 days
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
5 175-7920 Washer M8 flat stainless steel $4.09 1 ships same day
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
7 275-7710 36V actuator $274.56 1 usually ships 5-16 days
8 275-8195 Clevis pin $6.05 1 ships same day
9 175-2117 Cotter pin $4.88 4 ships same day
10 275-7711 Washer plastic (Tennant Industrial) $5.17 2 usually ships 1-5 days
11 275-7712 Spring tensioner link (Tennant Industrial) $40.67 1 usually ships 1-5 days
12 275-7713 Spring extension $17.49 1 usually ships 1-5 days
13 275-7714 Clevis pin 2 1/4 inch (Tennant Industrial) $12.50 1 usually ships 1-5 days
14 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
15 275-7715 Clevis pin 5 1/4 inch (Tennant Industrial) $6.17 2 usually ships 1-5 days
16 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
17 275-8074 Washer .44 flat nylon $4.09 2 usually ships 1-5 days
18 275-7301 Aluminum squeegee coupling $52.58 1 usually ships 5-16 days
19 275-7632 Flanged bushing (Tennant Industrial) $17.84 2 usually ships 5-16 days
20 275-7716 Flanged sleeve (Tennant Industrial) $5.17 2 usually ships 5-16 days
21 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
23 275-7346 Turnbuckle replacement $201.80 1 usually ships 5-16 days
24 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
25 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
26 275-7718 Swivel caster assembly $128.92 2 ships same day
27 275-7719 Star knob assembly $13.20 2 usually ships 5-16 days
28 175-6386 Washer 1/2 flat spring disc zinc plated $5.50 2 usually ships 5-16 days
