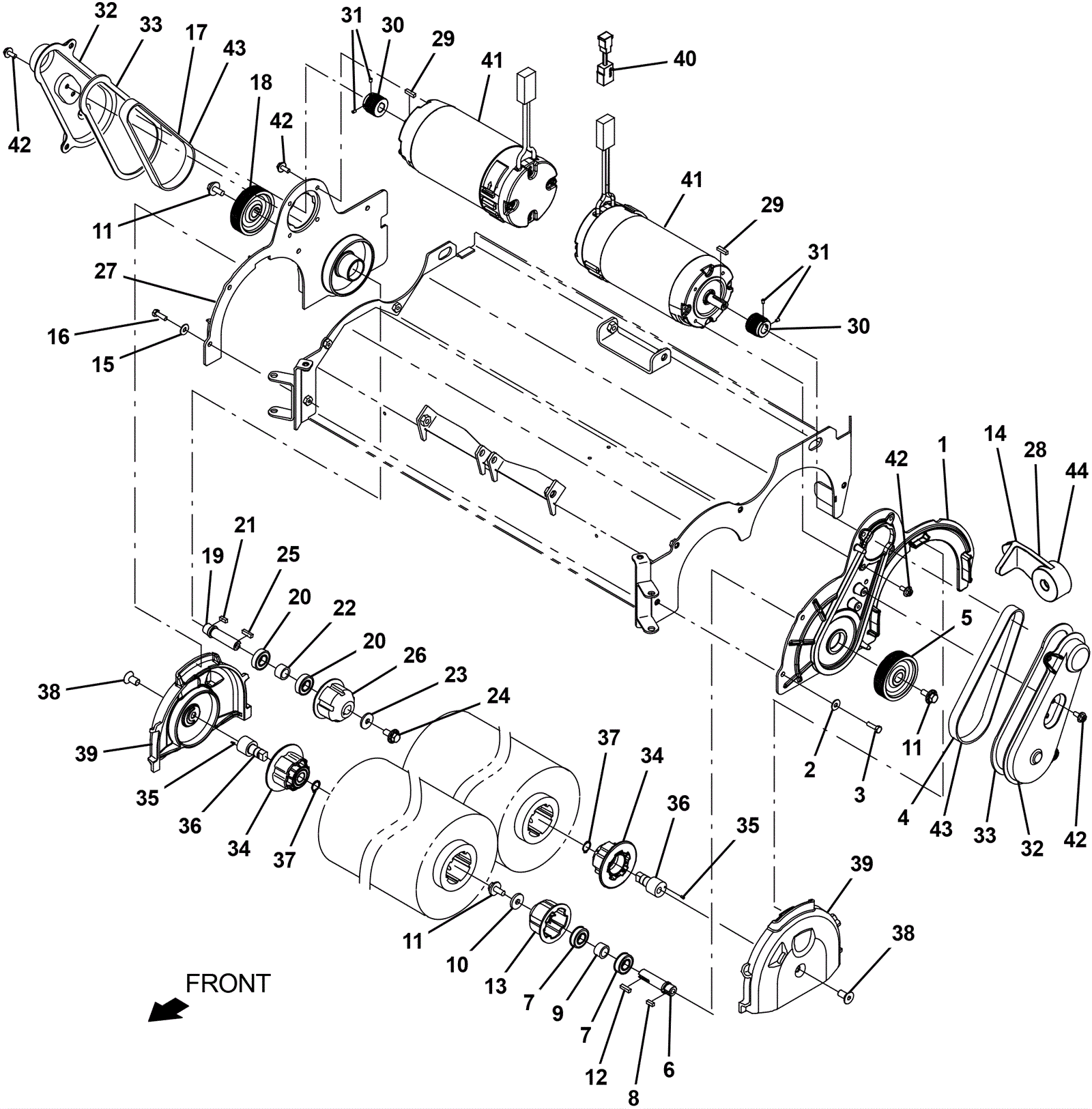

T12 Scrub Head Drive Motor Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1a 275-7656 Left hand side panel assembly 1 (includes 1b-14) usually ships 16-21 days
1b 275-7657 Left hand side plate (OBSOLETE) 1 usually ships 16-21 days
2 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4 usually ships 11-14 days
3 999-1312 Screw M6-1 x 20mm hex head stainless steel 4 usually ships 11-14 days
4 375-1577 Drive belt 1 usually ships 16-21 days
5 275-7658 Sheave 1 usually ships 16-21 days
6 275-7659 Drive shaft 1 usually ships 16-21 days
7 175-2471 Ball bearing 2 usually ships 16-21 days
8 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) 1 usually ships 16-21 days
9 175-8820 Spacer 1 usually ships 16-21 days
10 999-1407 Washer 5/16 belleville 1 usually ships 11-14 days
11 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 usually ships 16-21 days
12 175-8818 Square keyway 1 usually ships 16-21 days
13 175-8819 Drive plug 1 usually ships 16-21 days
14 475-3728 TOOL, INSTALLATION, BELT 1 usually ships 16-21 days
15a 275-7660 Right hand side panel assembly 1 (includes 15b-28) usually ships 16-21 days
15b 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4 usually ships 11-14 days
16 999-1312 Screw M6-1 x 20mm hex head stainless steel 4 usually ships 11-14 days
17 375-1577 Drive belt 1 usually ships 16-21 days
18 275-7658 Sheave 1 usually ships 16-21 days
19 275-7659 Drive shaft 1 usually ships 16-21 days
20 175-2471 Ball bearing 2 usually ships 16-21 days
21 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) 1 usually ships 16-21 days
22 175-8820 Spacer 1 usually ships 16-21 days
23 999-1407 Washer 5/16 belleville 1 usually ships 11-14 days
24 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 usually ships 16-21 days
25 175-8818 Square keyway 1 usually ships 16-21 days
26 175-8819 Drive plug 1 usually ships 16-21 days
27 275-7661 Right hand side plate 1 usually ships 16-21 days
28 475-3728 TOOL, INSTALLATION, BELT 1 usually ships 16-21 days
29 275-1468 Square keyway 2 usually ships 16-21 days
30 275-7663 Sheave (Tennant Industrial)(OBSOLETE) 2 usually ships 16-21 days
31 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4 usually ships 11-14 days
32 275-7664 Belt cover 2 usually ships 16-21 days
33 275-7665 Belt cover gasket 1 usually ships 16-21 days
34a 175-2475 Idler plug assembly 2 (includes 34b-37) usually ships 16-21 days
34b 175-2478 Brush idler plug 1 usually ships 16-21 days
35 175-2477 Roll pin 1 usually ships 16-21 days
36 175-2476 Idler plug shaft 1 usually ships 16-21 days
37 175-2472 Retaining ring 1 usually ships 16-21 days
38 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok 2 usually ships 16-21 days
39 275-7666 Brush door 2 usually ships 16-21 days
40 275-7667 Wire adapter harness (Tennant Industrial) 1 usually ships 1-5 days
41 275-7662 36V 22Ah electric motor 2 usually ships 16-21 days
42 999-1383 Screw M6-1 x 16mm hex head stainless steel 12 usually ships 8-9 days
43a 275-7393 Belt cylinder head with tool 1 (includes 43b-44) usually ships 16-21 days
43b 375-1577 Drive belt 2 usually ships 16-21 days
44 475-3728 TOOL, INSTALLATION, BELT 1 usually ships 16-21 days
