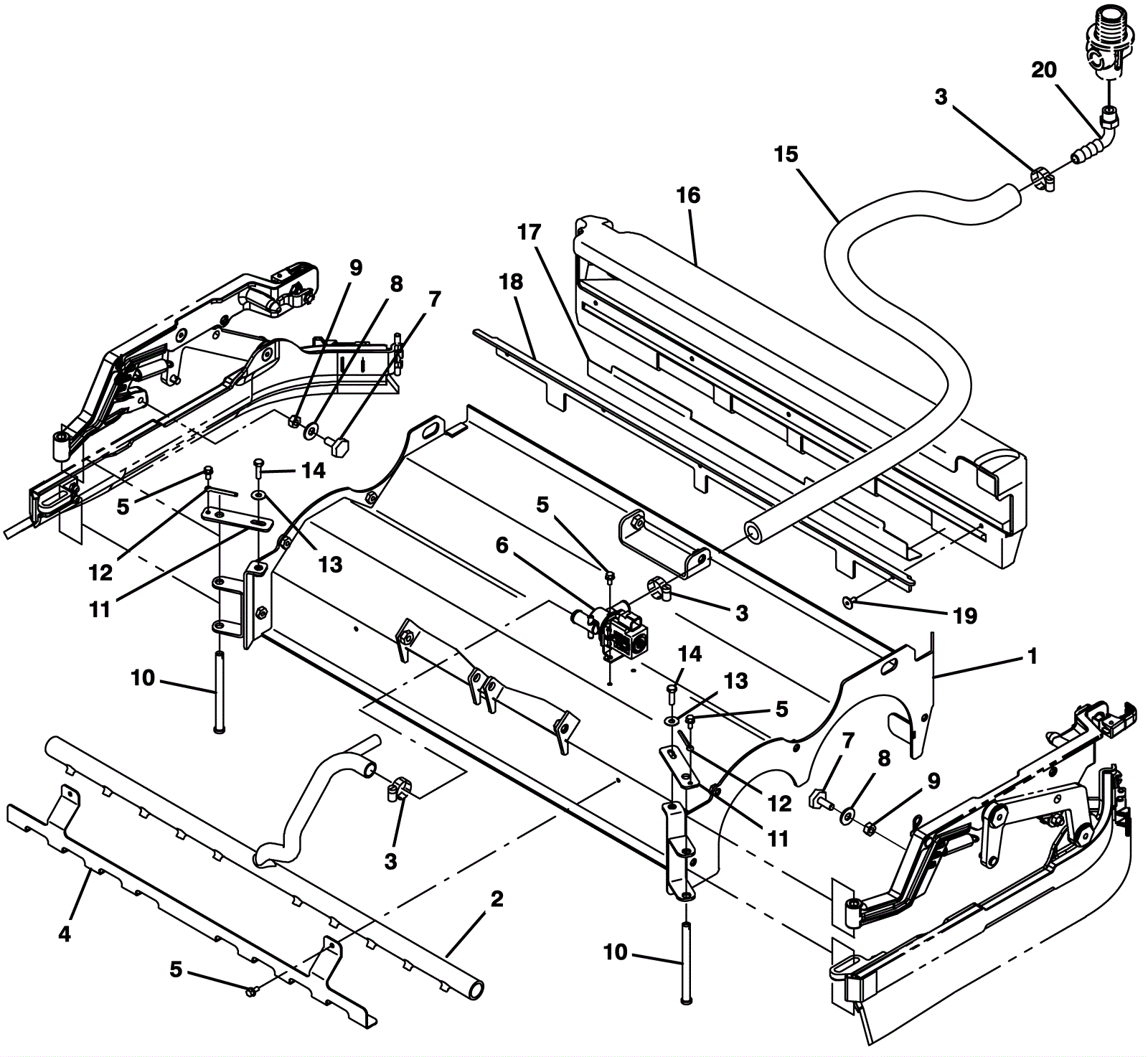

T12 Scrub Head Frame Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 275-7648 Scrub head weldment $181.06 1 usually ships 5-16 days
2 275-7649 Distribution tube $104.61 1 usually ships 1-5 days
3 175-0199 Hose clamp $6.60 3 usually ships 5-16 days
4 275-7650 Watertube bracket $14.41 1 usually ships 5-16 days
5 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 6 ships same day
6 275-6500 Solenoid valve (Tennant Industrial) $88.00 1 usually ships 5-16 days
7 275-7651 Rubber bumper $4.22 2 usually ships 5-16 days
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
9 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
10 275-7647 Clevis pin $14.08 2 usually ships 5-16 days
11 275-7652 Retainer pin bracket $5.50 2 usually ships 5-16 days
12 175-0532 Cotter pin $5.17 2 usually ships 5-16 days
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
14 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
15 275-4940 3 foot PVC hose (Tennant Industrial) $48.51 1 ships same day
16 275-7653 Debris tray $356.95 1 (includes 17-19) usually ships 5-16 days
17 275-7654 Steel perforated angle $32.45 1 usually ships 5-16 days
18 275-7655 Debris tray lip $44.88 1 usually ships 5-16 days
19 175-5936 Pop rivet $4.88 5 usually ships 5-16 days
20 175-4744 90 degree elbow fitting $8.47 1 usually ships 5-16 days
