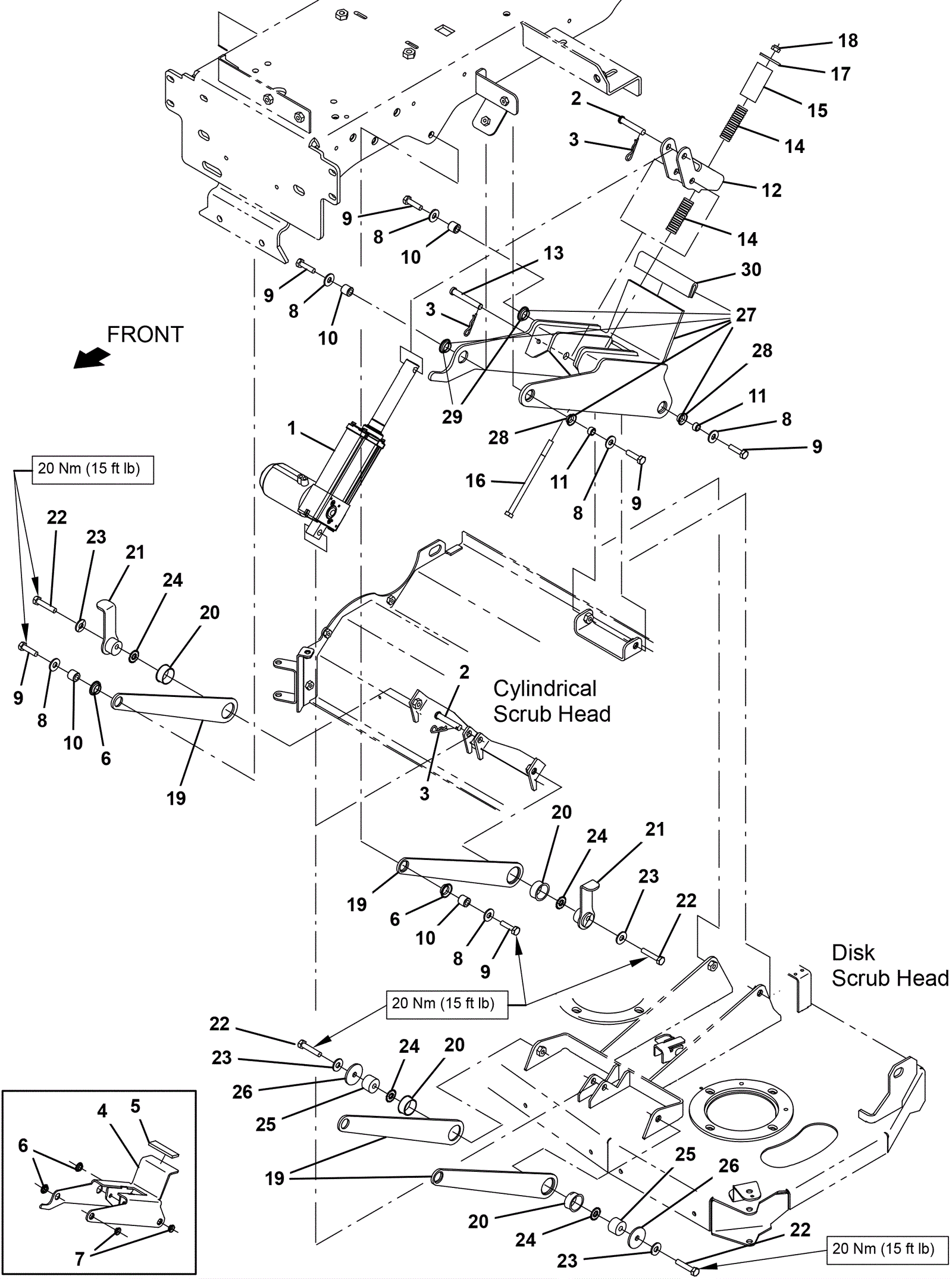

T12 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7629 36V actuator $480.70 1 usually ships 5-16 days
2 173-1595 Clevis pin (OBSOLETE) $4.88 2 usually ships 5-16 days
3 175-2117 Cotter pin $4.88 3 ships same day
4 N/A Not available Call for price 1 (before SN 10728114) (pivot arm weldment) (replaced by 27) usually ships 3-26 days
5 275-7631 Rubber stop pad $4.09 1 (before SN 10728114) (replaced by 27) usually ships 1-5 days
6 175-2099 Flanged bushing $9.35 4 (before SN 10728114) ships same day
7 275-7632 Flanged bushing (Tennant Industrial) $17.84 2 (before SN 10728114) usually ships 5-16 days
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 ships same day
9 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 6 ships same day
10 175-9347 Sleeve $5.50 4 usually ships 5-16 days
11 175-2263 Sleeve $3.83 2 ships same day
12 275-7633 Pivot spring bracket $19.03 1 usually ships 5-16 days
13 175-0743 PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) $9.17 1 usually ships 1-5 days
14 275-7634 Compression spring $5.50 2 usually ships 1-5 days
15 275-7635 Bumper tube $21.67 1 usually ships 5-16 days
16 275-7000 Screw M8-1.25 x 140mm hex hd stainless steel $5.50 1 usually ships 5-16 days
17 275-5384 Flat washer (Tennant Industrial) $8.84 1 usually ships 5-16 days
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
19 275-7636 Scrub head link $19.91 2 usually ships 5-16 days
20 275-3054 BUSHING, FLNG, 1.00B 1.13D 0.50L (Tennant Industrial) $22.67 2 usually ships 5-16 days
21 275-7637 Pivot weldment $66.77 2 usually ships 5-16 days
22 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
24 175-2893 Washer 5/16 internal/external locking $4.09 2 usually ships 5-16 days
25 275-7638 Pivot lift $5.50 2 usually ships 5-16 days
26 275-5384 Flat washer (Tennant Industrial) $8.84 2 usually ships 5-16 days
27 275-7630 Pivot arm weldment $412.61 1 (includes 28-30) (after SN 10728113) usually ships 5-16 days
28 275-7632 Flanged bushing (Tennant Industrial) $17.84 2 (after SN 10728113) usually ships 5-16 days
29 175-2099 Flanged bushing $9.35 2 (after SN 10728113) ships same day
30 275-8203 Molding $45.21 1 (after SN 10728113) usually ships 1-5 days
