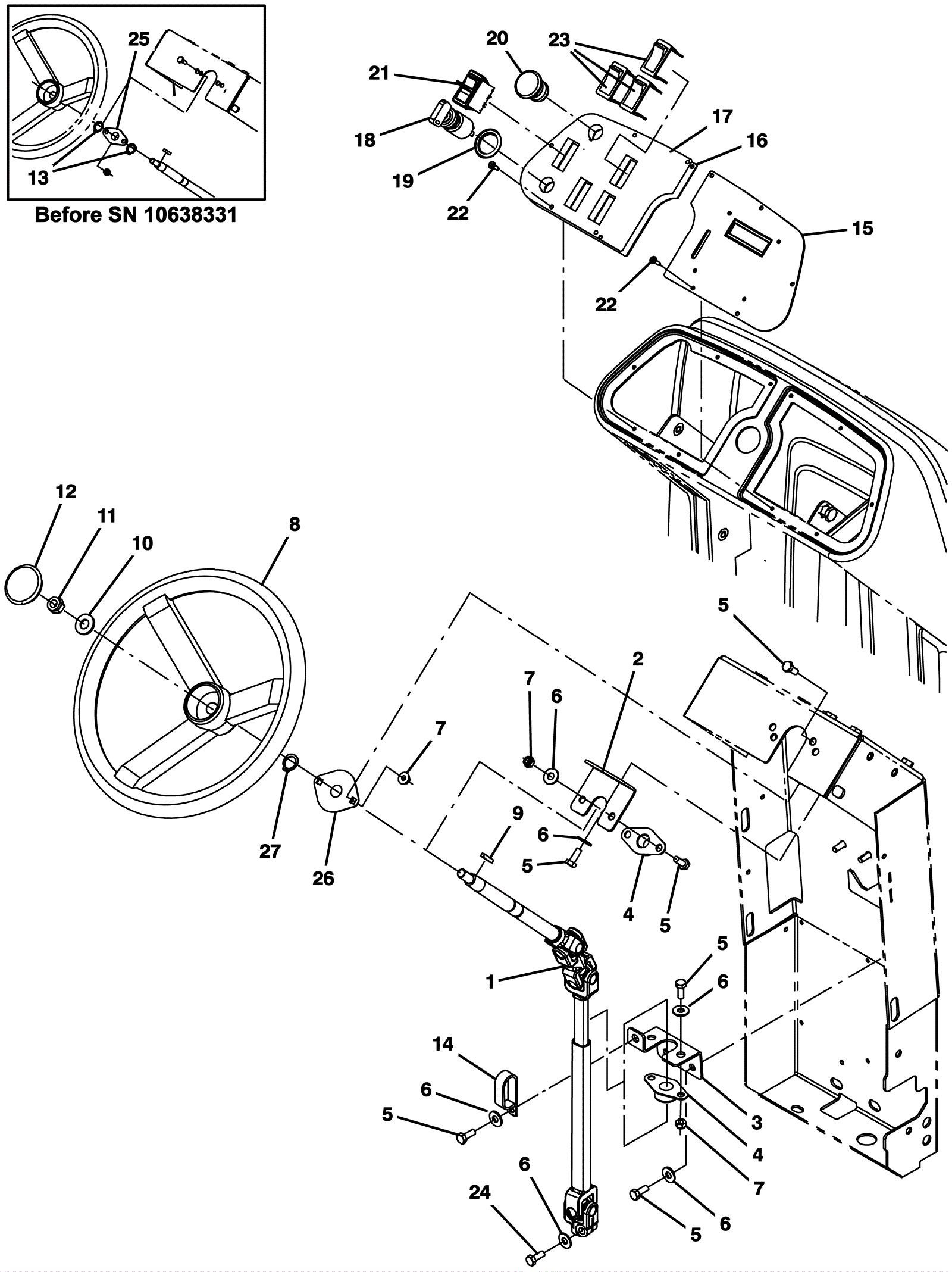

T12 Steering and Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7593 Basic steering shaft assembly $356.29 1 usually ships 1-5 days
2 275-7594 Bracket $8.91 1 usually ships 1-5 days
3 275-7595 Support bracket weldment $11.11 1 usually ships 1-5 days
4 175-3201 Flanged bearing $6.49 2 usually ships 10-13 days
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 5 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
8 275-4653 Steering wheel $163.46 1 usually ships 10-13 days
9 175-3200 Square keyway $4.49 1 ships same day
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
11 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
12 275-5333 Steering wheel cap $5.28 1 usually ships 10-13 days
13 275-2003 Retaining ring (Tennant Industrial) $6.50 2 (before SN 10638331) usually ships 10-13 days
14 175-3171 Cable clamp $5.50 1 usually ships 1-5 days
15 375-1211 Control panel replacement kit $1,298.22 1 usually ships 1-5 days
16a 275-7597 Left hand console panel $12.10 1 (before SN 10962736) usually ships 1-5 days
16b 375-2617 Left hand console panel (Tennant Industrial) $52.34 1 (after SN 10962735) usually ships 10-13 days
17a 275-7598 Left hand console decal $53.13 1 (before SN 10962736) usually ships 1-5 days
17b 375-2618 Left hand console operational decal $123.53 1 (after SN 10962735) usually ships 10-13 days
18a 175-3214 Key switch $93.28 1 (includes 18b) usually ships 10-13 days
18b 175-3215 Key (sold individually) $15.40 1 ships same day
19 175-3217 Washer .91b x 1.38d x .06 steel plated $5.28 1 usually ships 10-13 days
20 275-1416 Safety shut-off switch $43.67 1 ships same day
21 275-7599 Rocker switch (Tennant Industrial) $47.51 1 usually ships 10-13 days
22 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 10 ships same day
23 175-2556 Switch plug $7.37 3 usually ships 10-13 days
24 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
25 175-3201 Flanged bearing $6.49 1 (before SN 10638331) usually ships 10-13 days
26 275-2003 Retaining ring (Tennant Industrial) $6.50 1 (after SN 10638330) usually ships 10-13 days
27 275-7601 Flanged bearing (Tennant Industrial) $61.51 1 (after SN 10638330) usually ships 1-5 days
