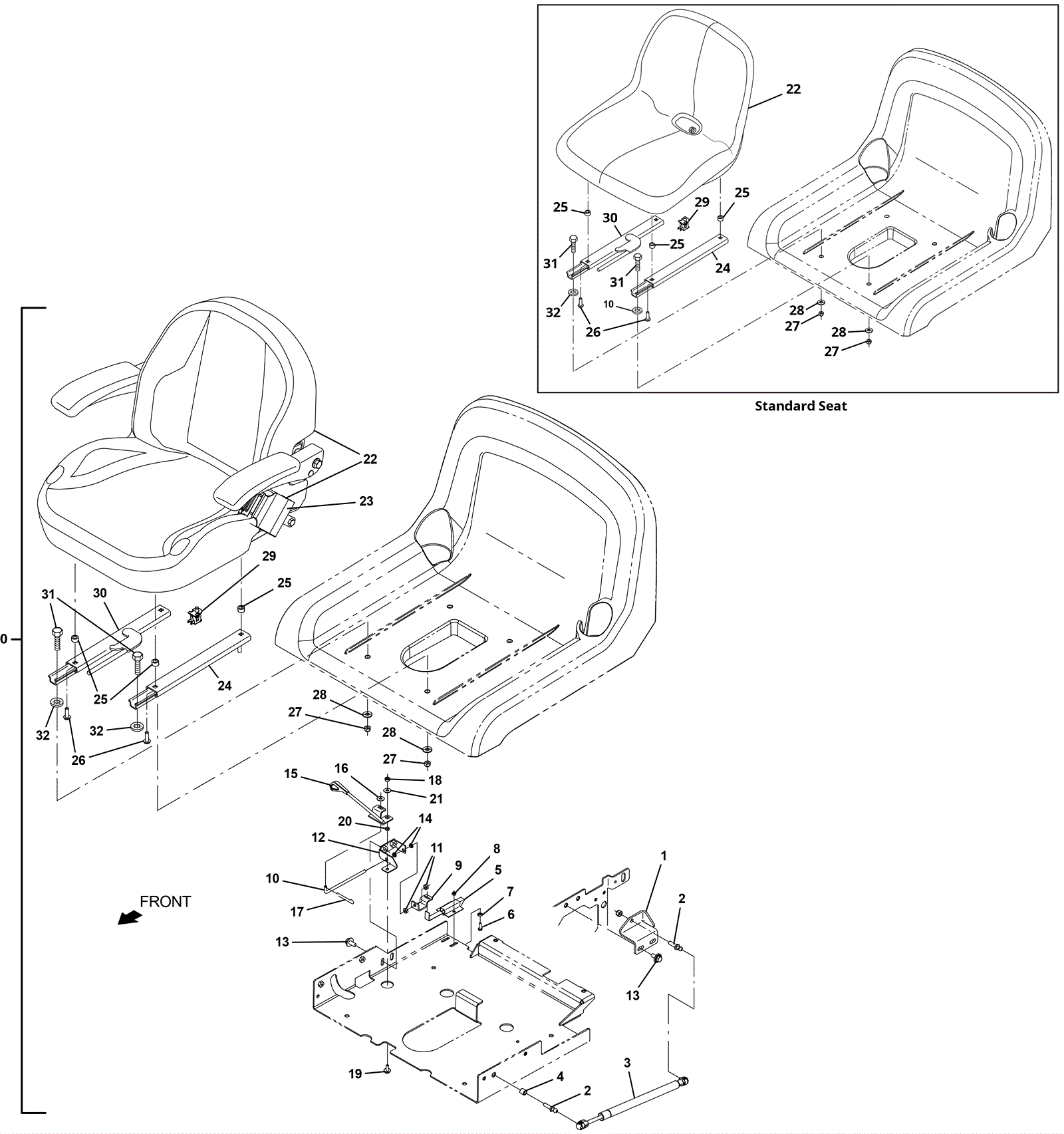

T12 Standard Seat Assembly and Deluxe Seat Kit

#PartDescriptionPriceReqNotesAvailability
0 275-7583 Deluxe seat kit $1,958.44 1 (includes 1-22a, 23-32) (deluxe seat) usually ships 5-16 days
1 275-7584 Ball stud bracket $17.27 1 usually ships 5-16 days
2 275-7585 Ball stud (Tennant Industrial) $17.34 2 usually ships 1-5 days
3 275-2178 GASSPRING, 30LB, 8.0STRK $81.73 1 usually ships 1-5 days
4 175-2249 Sleeve $3.83 1 ships same day
5 275-7586 Latch (Tennant Industrial) $26.17 1 usually ships 1-5 days
6 175-6939 Screw M5 x 16mm stainless steel $3.70 2 ships same day
7 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
8 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
9 275-7587 Angle latch $18.70 1 usually ships 1-5 days
10 275-7588 Handle latch $7.48 1 usually ships 1-5 days
11 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
12 275-7589 Bracket weldment $18.15 1 usually ships 5-16 days
13 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
14 175-9361 Snap in bearing $5.83 2 usually ships 5-16 days
15 275-7590 Seat latch handle assembly $55.88 1 usually ships 1-5 days
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 175-7107 Cotter hair pin $3.04 1 usually ships 5-16 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 1 ships same day
20 275-7591 Sleeve $10.34 1 usually ships 1-5 days
21 275-0093 WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial) $5.00 1 usually ships 5-16 days
22a 275-7592 Deluxe seat with armrests and seatbelt $597.96 1 (deluxe seat) (includes 23) usually ships 1-5 days
22b 275-6563 Seat kit $220.77 1 (standard seat) usually ships 1-5 days
23 375-6965 Retractable seatbelt (orange) $369.82 1 usually ships 5-16 days
24 675-9511 Seat track no stud $31.90 1 ships same day
25 275-9333 Spacer $4.75 4 usually ships 1-5 days
26 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 4 ships same day
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
29 275-9280 Seat switch $10.34 4 (qty 1 for standard seat) ships same day
30 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $47.70 1 usually ships 5-16 days
31 275-3879 SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) $4.60 4 usually ships 1-5 days
32 675-9512 Bolt retention push nut $15.66 4 ships same day
