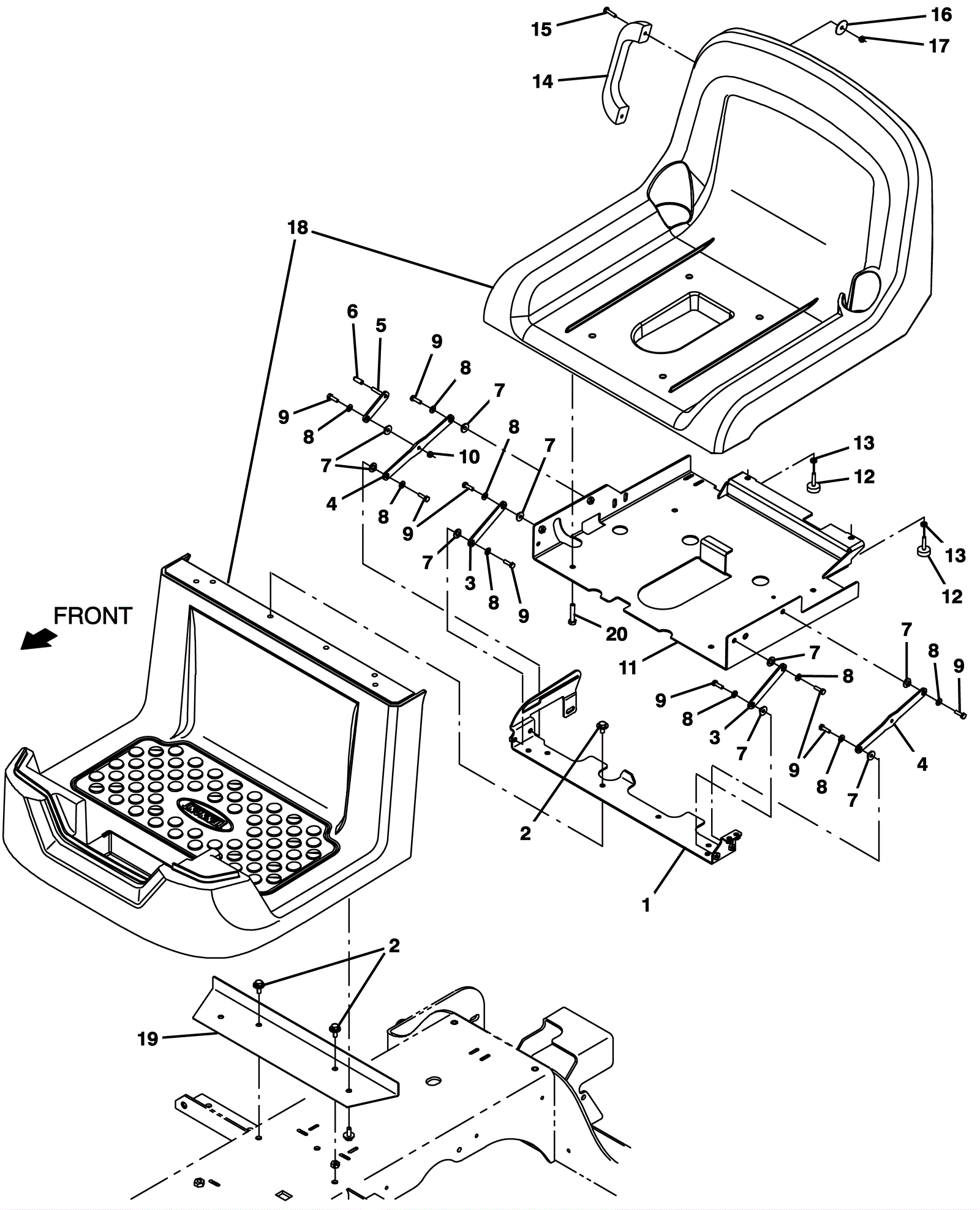

T12 Seat Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-3787 PLATE WLDT, MTG, W/LABEL, AFTMKT, NA $190.52 1 usually ships 5-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 10 ships same day
3 275-7575 Operation station link $7.37 2 usually ships 1-5 days
4 275-7576 Operation station link $7.92 2 usually ships 1-5 days
5 275-7577 Operation station link weldment $20.79 1 usually ships 1-5 days
6 275-7578 Handle grip (yellow) $1.85 1 usually ships 1-5 days
7 275-7579 Flange sleeve $1.58 9 usually ships 1-5 days
8 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
9 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
10 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
11 275-7580 Seat channel weldment $75.57 1 usually ships 1-5 days
12 275-8308 BUMPER, RBR, 1.0D 0.38TH .25-20 (Tennant Industrial) $20.00 2 usually ships 5-16 days
13 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
14 175-7083 HANDLE, CONTAINER (Tennant Industrial) $17.34 1 usually ships 5-16 days
15 175-3219 SCREW, PAN, PHL, M6 X 1.00 X 25, 4.8 (Tennant Industrial) $5.00 2 usually ships 1-5 days
16 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 2 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
18 275-7581 Operation platform set $1,184.81 1 usually ships 1-5 days
19 275-7582 Support angle $11.88 1 usually ships 5-16 days
20 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 4 ships same day
