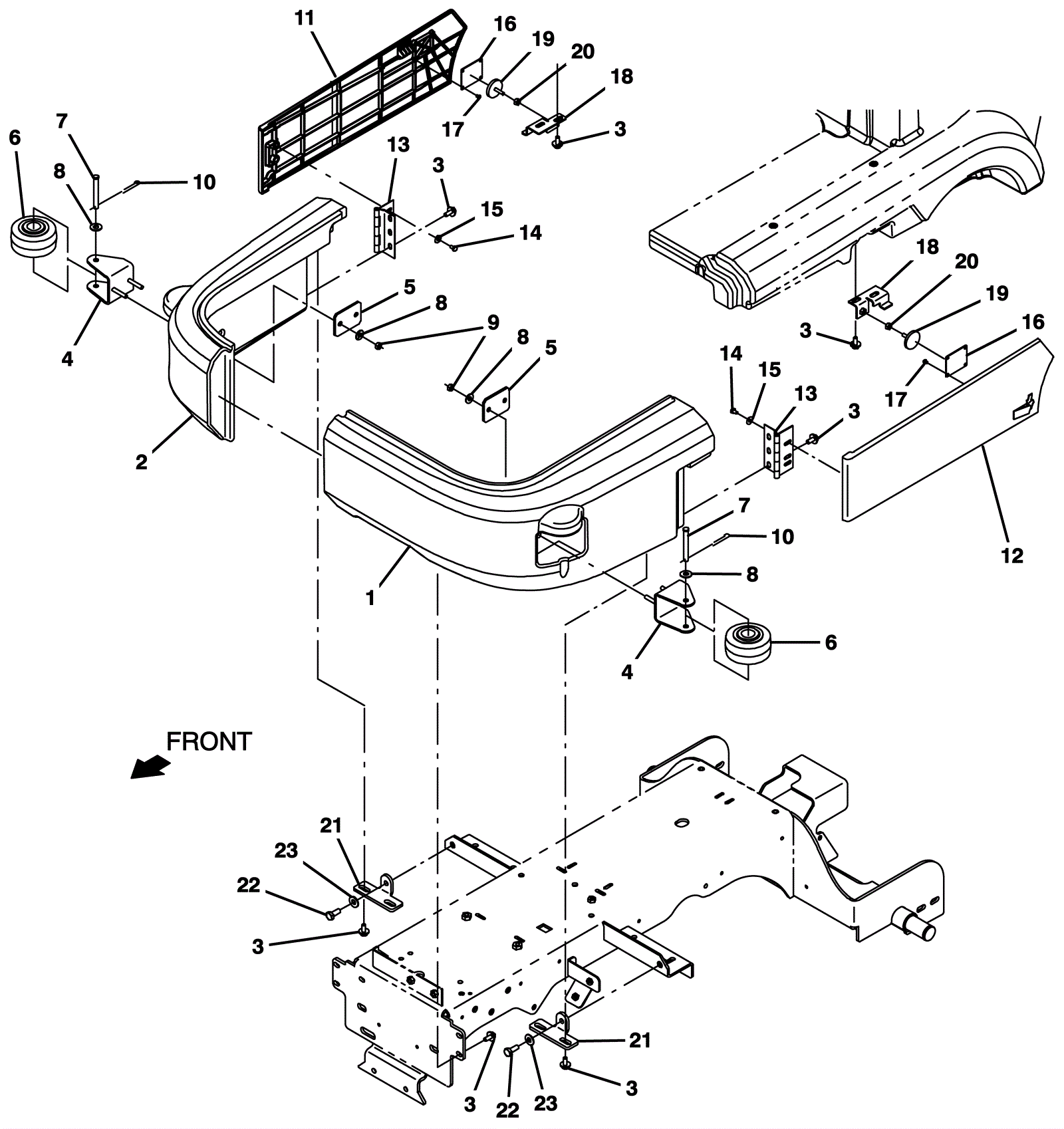

T12 Front Bumper and Side Door Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7562 Left hand bumper $254.87 1 usually ships 1-5 days
2 275-7563 Right hand bumper $217.58 1 usually ships 1-5 days
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 15 ships same day
4 275-7564 Roller channel weldment $40.15 2 usually ships 10-16 days
5 275-7565 Roller backing plate $5.50 2 usually ships 1-5 days
6 275-7566 Wheel (Tennant Industrial) $43.01 2 ships same day
7 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) $9.30 2 ships same day
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
10 175-2117 Cotter pin $5.28 2 usually ships 10-16 days
11 275-7567 Right hand door panel $51.92 1 usually ships 10-16 days
12 275-7568 Left hand door panel $51.92 1 usually ships 10-16 days
13 275-7569 Brush door hinge $14.08 2 usually ships 10-16 days
14 175-9354 Screw M6 hex $3.30 4 usually ships 10-16 days
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
16 275-7570 Latch plate $7.04 2 usually ships 10-16 days
17 275-7574 Pin $1.98 8 usually ships 10-16 days
18 275-7571 Left hand bracket weldment $17.16 2 usually ships 10-16 days
19 675-9923 Brush door magnet $21.23 2 usually ships 1-5 days
20 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
21 275-7573 Right hand bumper bracket $8.03 2 usually ships 1-5 days
22 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
