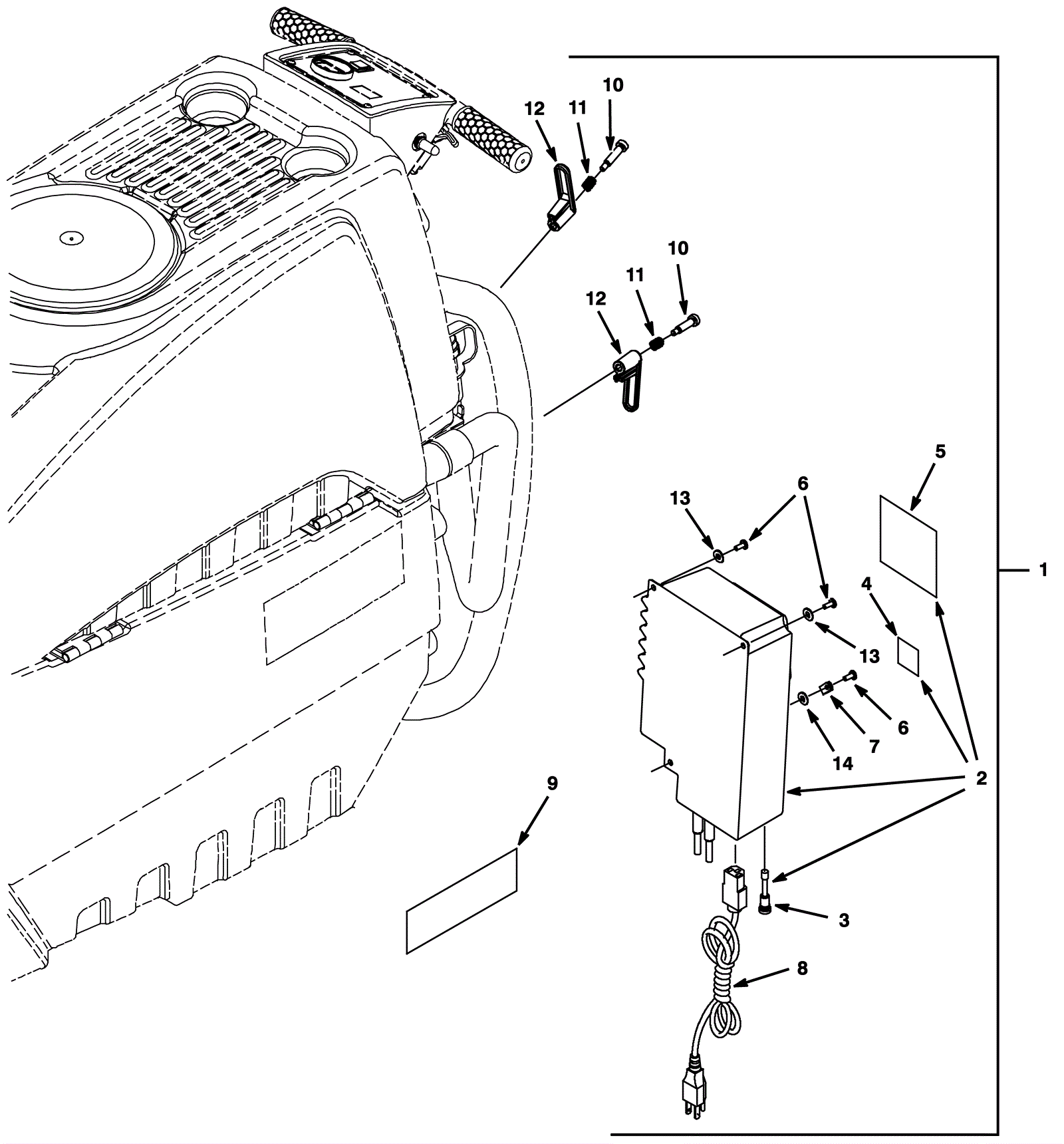

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(battery charger kit) |
|
2 |
N/A
|
Not available |
1 |
(chager) |
|
3 |
275-1584
|
15amp fuse |
1 |
|
|
4 |
175-4567
|
Hazardous voltage decal (OBSOLETE) |
1 |
|
|
5 |
275-1586
|
Charger decal |
1 |
|
|
6 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
3 |
|
|
7 |
175-5421
|
P clamp |
1 |
|
|
8a |
275-1585
|
16/3 charger power cord 15 foot (black) |
1 |
(OEM) |
|
8b |
991-8576
|
16/3 power cord 15 foot (black) |
1 |
(NON-OEM) |
|
9 |
275-1404
|
Charger setting instruction decal |
1 |
|
|
10 |
775-0390
|
Bolt M6-.8 x 30mm shield |
2 |
|
|
11 |
175-7507
|
Compression spring |
2 |
|
|
12 |
175-7509
|
Cord hook |
2 |
|
|
13 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
14 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
