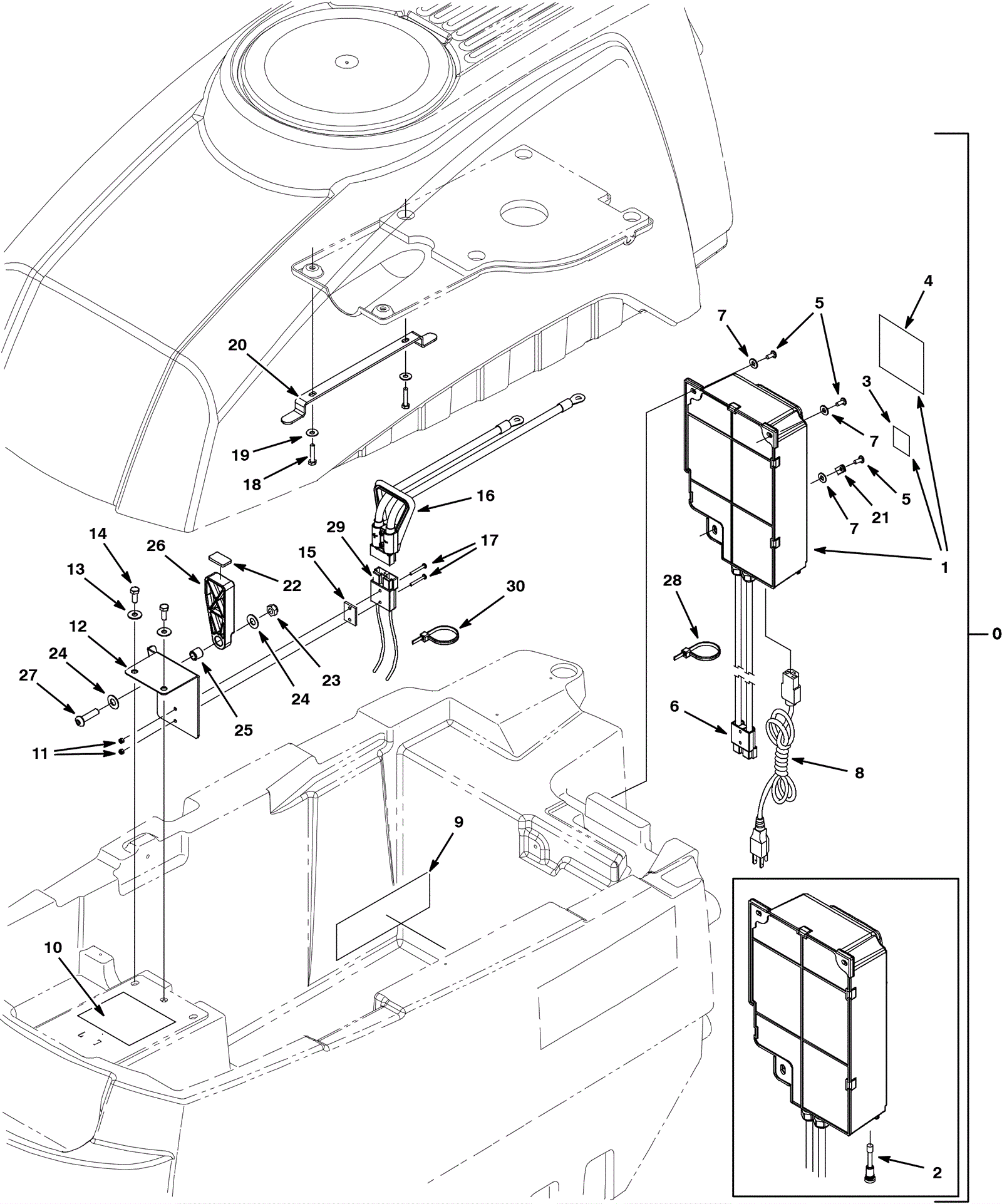

Onboard Charger Assembly - After SN 10409249

#PartDescription ReqNotesAvailability
0 275-4782 24V onboard battery charger kit 1 (inlcudes 1-30) (for models woth out Iris Telemetry battery manager functionality)
1 275-6265 24V onboard battery charger 1 (includes 2-6) (for models woth out Iris Telemetry battery manager functionality)
2 275-1584 15amp fuse 1
3 175-4567 Hazardous voltage decal (OBSOLETE) 1
4 275-1586 Charger decal 1
5 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 3
6 991-9284 50amp charger plug SB50 with pins (red) 1
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
8 275-1585 16/3 charger power cord 15 foot (black) 1
9 275-1404 Charger setting instruction decal 1
10 275-7129 Charger decal 1
11 999-1161 Nut M3-.5 hex nylock stainless steel 2
12 275-7130 Bracket 1
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
15 175-1197 Plate 1
16a 275-6248 Harness 1 (includes 16b-16c)
16b 275-6247 Anderson connector handle 1
16c 991-9284 50amp charger plug SB50 with pins (red) 1
17 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2
18 175-6758 Screw M6-1 x 30mm hex head 2
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
20 275-7131 Cord hook 1
21 175-5421 P clamp 1
22 175-2869 Gasket 1 (after SN 10558134)
23 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1 (after SN 10558134)
24 999-0024 Washer 5/16 flat stainless steel 2 (after SN 10558134)
25 175-2249 Sleeve 1 (after SN 10558134)
26 275-1374 Support prop (black) 1 (after SN 10558134)
27 275-5864 Screw M8 x 30mm button head (black) 1 (after SN 10558134)
28 175-7795 Cable tie 6
29 991-9284 50amp charger plug SB50 with pins (red) 1
30 175-0037 Wire tie 4
