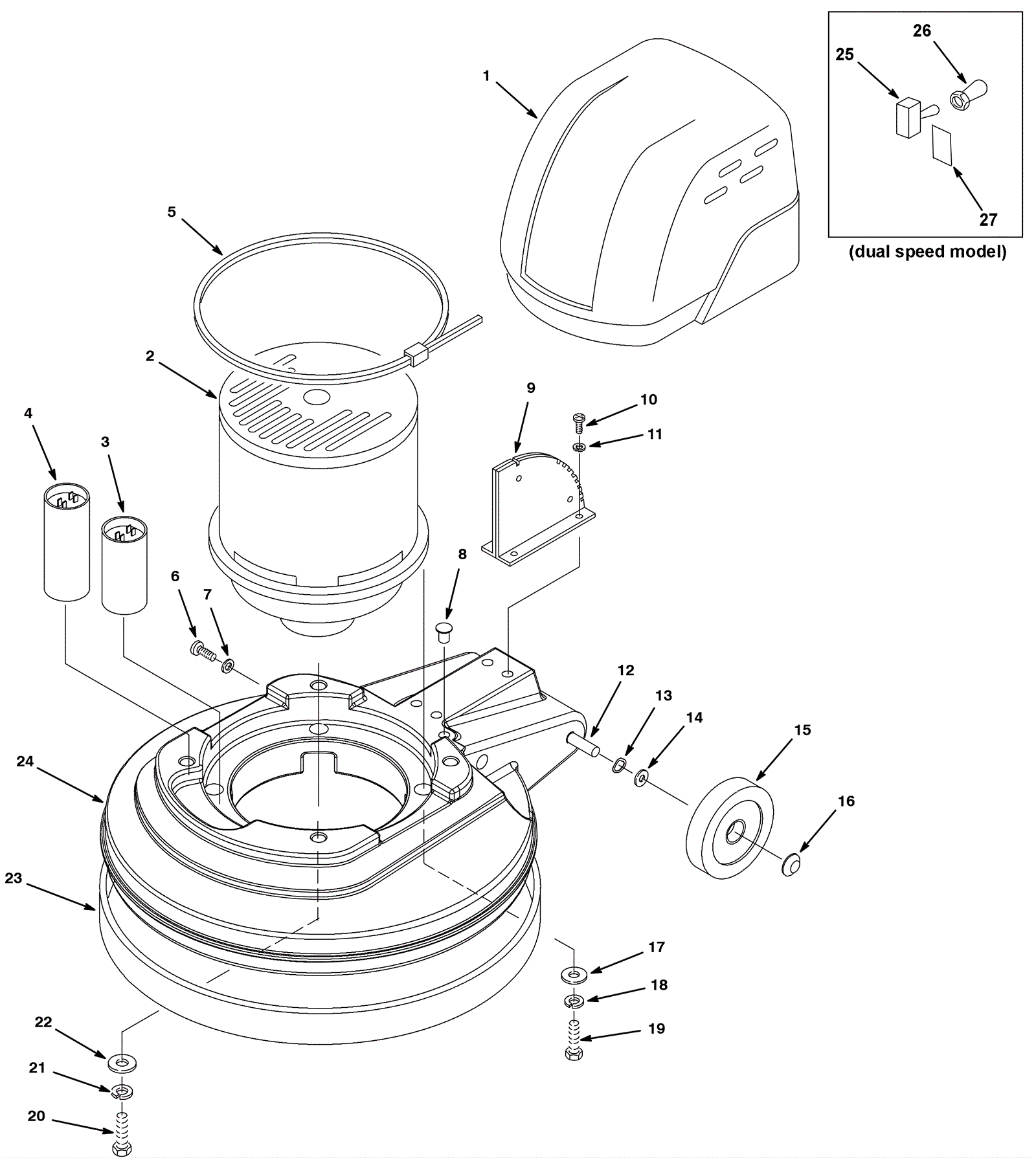

FM-20-SS Base Assembly

#PartDescriptionPriceReqNotesAvailability
1a 475-2224 COVER, MOTOR, RM-CPHG, AFMKT [FM-17] $231.88 1 (single speed) usually ships 10-16 days
1b 275-9863 Motor cover $393.47 1 (dual speed) usually ships 1-5 days
2a 175-6615 120V 1.5HP brush motor assembly $1,928.08 1 (single speed) (includes 2f-2g, 3a, 4a, 5) usually ships 10-16 days
2b 475-2830 MOTOR, ELE, 230VAC 50HZ 1.50HP [F5] $1,485.55 1 (single speed) (includes 2h-2i, 3b, 4b, 5) usually ships 10-16 days
2c 475-2884 MOTOR KIT, ELE, 230VAC 1.50HP, REPLMT $2,558.60 1 (single speed) (includes 3a, 4a, 5) usually ships 10-16 days
2d 175-3497 120V 1.50HP brush motor assembly $2,135.87 1 (dual speed) (includes 2j-2m) usually ships 10-16 days
2e 475-2871 MOTOR, ELE, 230VAC 1800/3200RPM 1.5HP DS $1,640.10 1 (dual speed) (includes 2n-2q) usually ships 10-16 days
2f 175-6612 Imperial gearbox $938.96 1 (single speed) usually ships 1-5 days
2g 175-6611 Motor coupling $11.11 1 (single speed) usually ships 10-16 days
2h 475-2730 VR, GEARBOX, MOTOR, 230VAC 1.50HP 50HZ $991.43 1 (single speed) usually ships 10-16 days
2i 475-1081 VR, COUPLING, MOTOR, 230VAC 1.50HP 50HZ $23.98 1 (single speed) usually ships 10-16 days
2j 175-3491 Carbon brush (pkg of 4) $179.19 1 (dual speed) ships same day
2k 175-3492 Carbon brush $25.63 4 (dual speed) ships same day
2l 175-3493 600V 60amp rectifier $146.08 1 (dual speed) usually ships 10-16 days
2m 175-3494 Speed control $349.03 1 (dual speed) ships same day
2n 175-1267 Brush card assembly $296.78 1 (dual speed) usually ships 1-5 days
2o 175-0942 Carbon brush $24.64 4 (dual speed) usually ships 1-5 days
2p 175-5783 Rectifier $217.47 1 (dual speed) ships same day
2q 475-2513 CONTROL, SPD, 230VAC, DUAL SPD $407.66 1 (dual speed) usually ships 10-16 days
3a 175-6616 Run capacitor $86.13 1 (single speed) (120V) usually ships 10-16 days
3b 475-1641 CAPACITOR, MOTOR, RUN, 30uF $61.05 1 (single speed)(230V) usually ships 10-16 days
4a 175-6614 Start capacitor $70.84 1 (single speed) (120V) usually ships 10-16 days
4b 475-1883 VR, CAPACITOR, START, 230VAC 1.50HP 50HZ $102.85 1 (single speed) (230V) usually ships 10-16 days
5 175-6617 Cable tie $6.17 1 (single speed) usually ships 10-16 days
6 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
7 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 2 ships same day
8 175-2700 Plug $5.02 1 usually ships 10-16 days
9 175-6530 Latching plate $103.51 1 usually ships 10-16 days
10 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
11 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
12 175-0294 Axle $19.03 1 ships same day
13 175-0293 Washer 1/2 compression zinc plated $4.88 2 ships same day
14 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
15a 175-0292 4 inch rear wheel (gray) $38.72 2 (OEM) ships same day
15b 991-1913 4 inch wheel (gray) $18.50 2 (NON-OEM) ships same day
16 175-6097 Hub cap $5.50 2 ships same day
17 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 4 ships same day
18 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
19 999-9074 Screw 5/16-18 x 1 1/2 flat head stainless steel $0.99 4 ships same day
20 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 4 ships same day
21 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
22 175-1097 Washer flat stainless steel $5.50 4 ships same day
23a 175-1270 17 inch (430mm) bumper $46.64 1 usually ships 10-16 days
23b 175-0298 20 inch bumper $56.32 1 usually ships 10-16 days
24a 275-9861 17 inch base $529.87 1 usually ships 10-16 days
24b 275-9862 20 inch base $375.87 1 usually ships 10-16 days
25 164-0290 Toggle switch $14.63 1 (dual speed) ships same day
26 175-0329 Rubber boot for switch $16.17 1 (dual speed) ships same day
27 175-1280 Operation decal $5.28 1 (dual speed) usually ships 10-16 days
