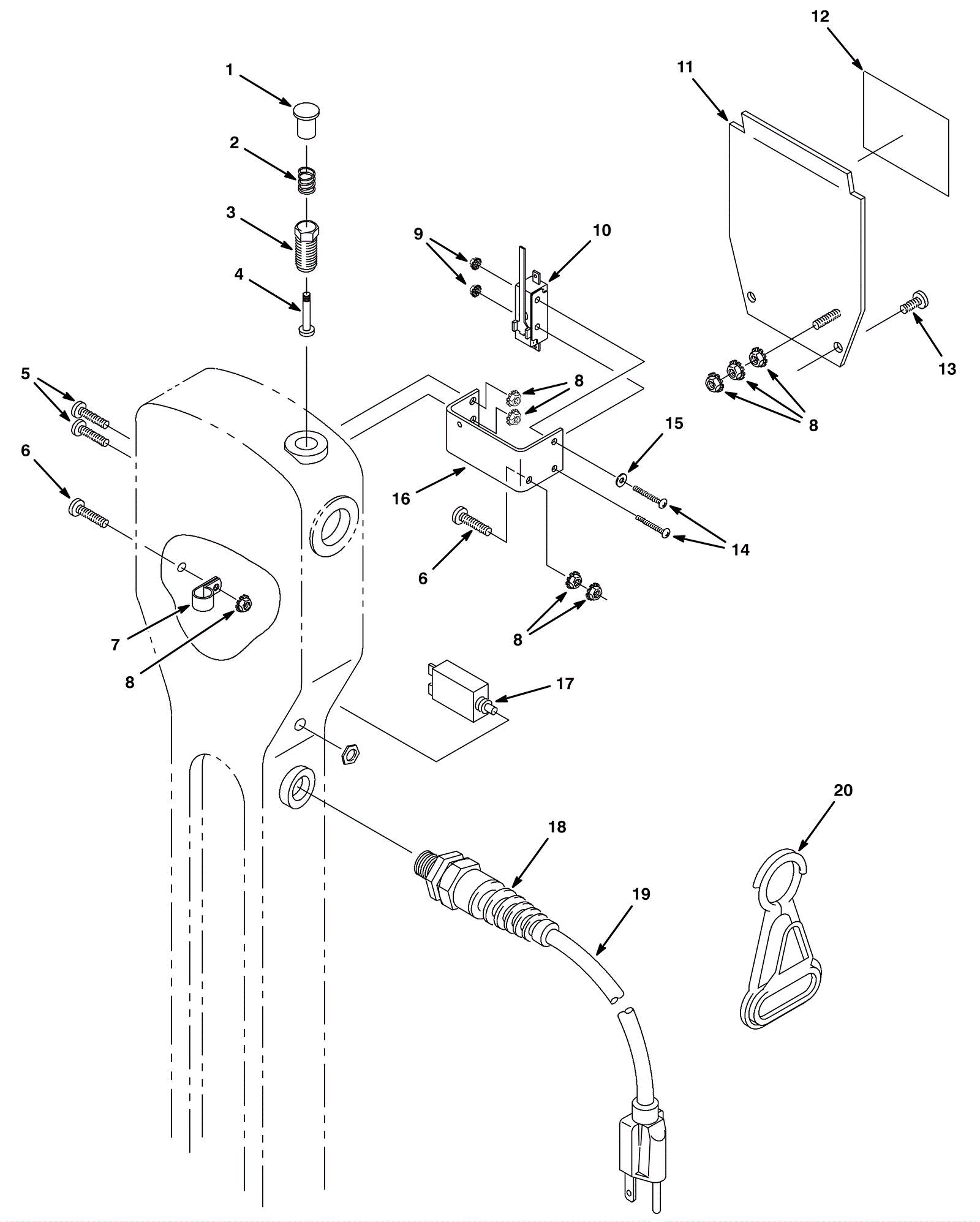

FM-20-SS Internal Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-0334 Locking release button $11.44 1 ships same day
2 175-0335 Locking pin spring $4.88 1 ships same day
3 175-0331 Locking socket $15.40 1 usually ships 10-16 days
4 175-0332 Locking release pin $7.70 1 usually ships 10-16 days
5 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
6 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 2 ships same day
7a 175-0144 P clamp $3.96 1 (single speed) (single speed) usually ships 10-16 days
7b 175-0339 P clamp $4.09 1 (dual speed) usually ships 10-16 days
8 999-0356 Nut 10-24 lock stainless steel $0.99 8 ships same day
9 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
10 175-6532 Snap switch $14.74 1 (qty 2 for 220V-240V) ships same day
11 275-5163 Rear handle plate with decal $72.38 1 (includes 12) usually ships 10-16 days
12 275-5164 Warning decal $9.90 1 usually ships 1-5 days
13 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
14a 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 (120V) ships same day
14b 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 (220V-240V) ships same day
15 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
16 175-0338 Switch bracket $23.87 1 usually ships 10-16 days
17a 175-1186 15amp circuit breaker $18.37 1 (single speed) (120V) ships same day
17b 175-6630 17amp circuit breaker $25.63 1 (dual speed) (120V) usually ships 10-16 days
17c 175-6061 12amp circuit breaker $43.78 1 (220V-240V) usually ships 10-16 days
18a 175-5502 Strain relief $14.08 1 (120V) ships same day
18b 175-0340 Strain relief $10.34 1 (220V-240V) usually ships 10-16 days
19a 164-5077 14/3 power cord 50 foot $185.55 1 (OEM) ships same day
19b 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
20 175-0236 Cord belt clip $10.23 1 ships same day
