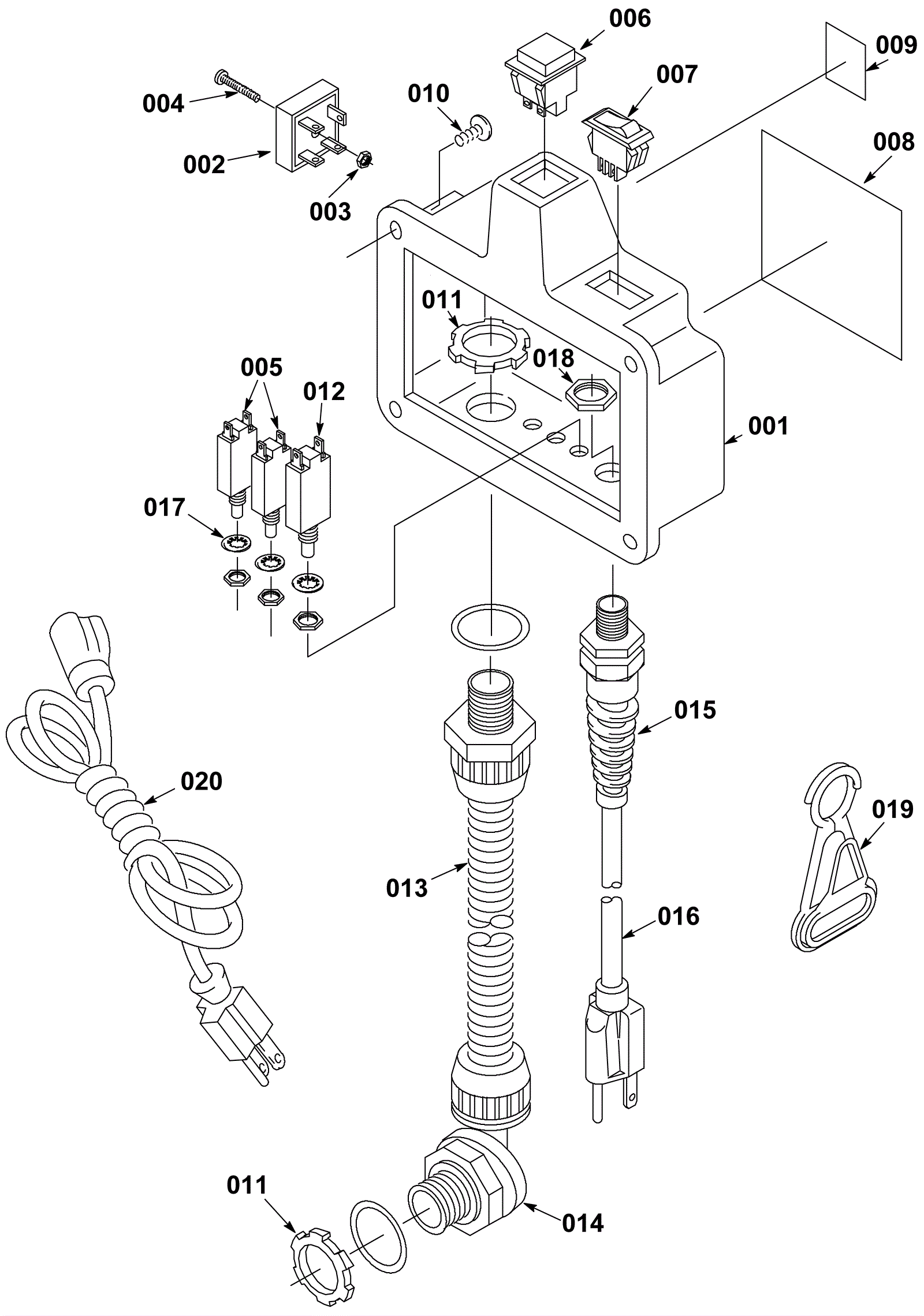

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-6088
|
Switchbox assembly |
1 |
(includes 001b-0017) |
|
001b |
275-6089
|
Switchbox |
1 |
|
|
002 |
175-6052
|
15amp rectifier |
1 |
|
|
003 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
004 |
999-1411
|
Screw 10-24 x 1 round head slotted nylon |
1 |
|
|
005 |
175-6060
|
1.5amp circuit breaker |
2 |
(vacuum and brush) |
|
006 |
175-6057
|
Brush pulse switch |
1 |
|
|
007 |
175-0005
|
Rocker switch |
1 |
(master on/off) |
|
008 |
275-9008
|
Warning decal |
1 |
|
|
009 |
175-3562
|
On/off decal |
1 |
|
|
010 |
999-1027
|
Screw 10-24 x 1 1/4 round head phillips stainless steel |
4 |
|
|
011 |
175-6158
|
Nut 1/2 conduit |
2 |
|
|
012 |
175-6061
|
12amp circuit breaker |
1 |
(pump) |
|
013 |
175-3554
|
Wiring harness |
1 |
(includes 014-017) |
|
014 |
175-1591
|
1/2 inch swivel elbow (OBSOLETE) |
1 |
|
|
015 |
175-0001
|
Strain relief |
1 |
|
|
016 |
175-6064
|
14/3 pigtail cord 18 inch |
1 |
|
|
017 |
999-9099
|
Washer M10 flat stainless steel |
3 |
|
|
018 |
175-7223
|
Hex nut |
1 |
|
|
019 |
175-0236
|
Cord belt clip |
1 |
|
|
020a |
175-6091
|
16/3 extension cord 50 foot (yellow) |
1 |
(OEM) |
|
020b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
