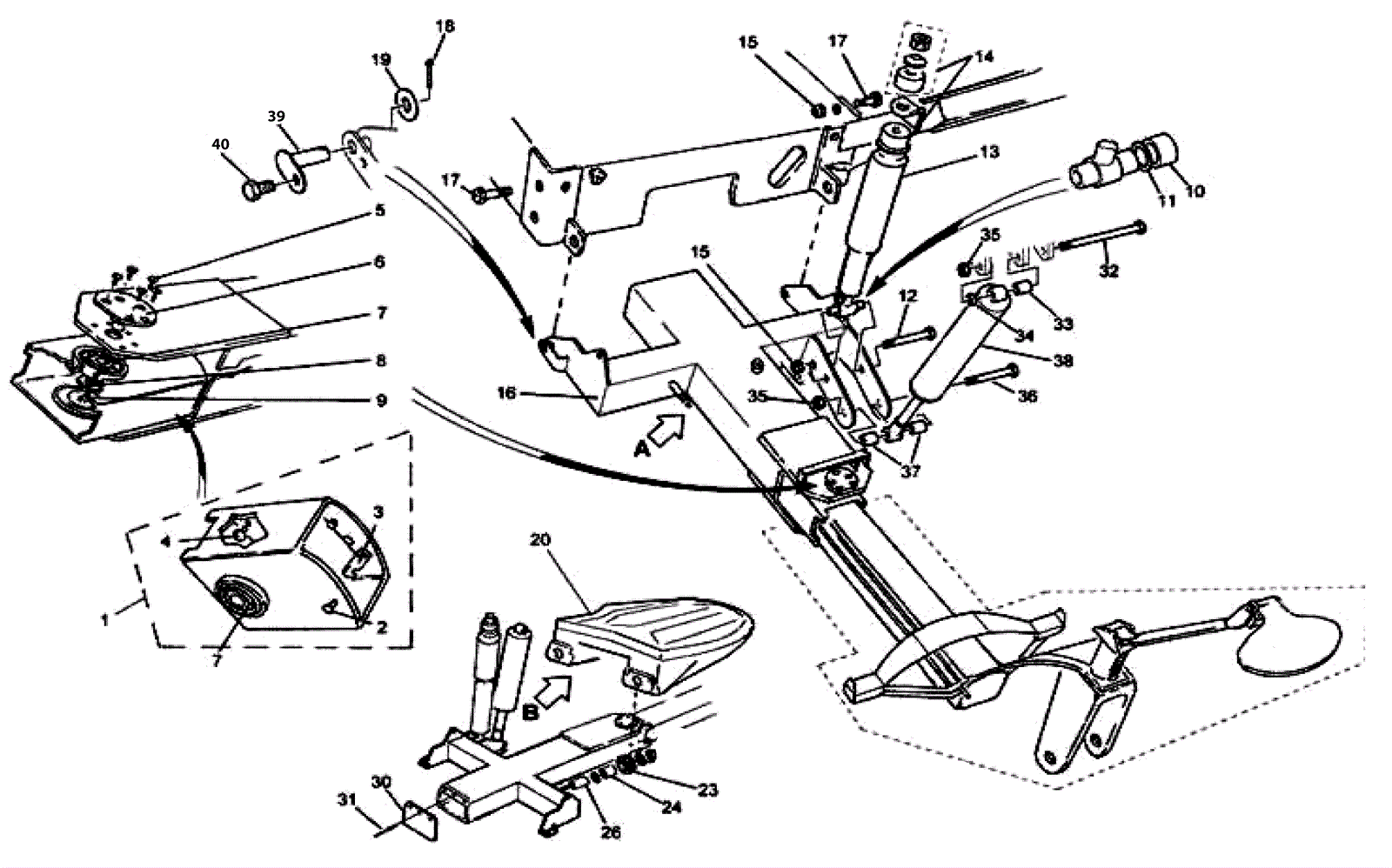

414RS Seat Tow Bar

#PartDescriptionPriceReqNotesAvailability
1 475-7178 SWIVEL BOX ASSY C/W ROLLERS (Tennant Industrial) $1,208.08 1 (includes 2-4, and 7) usually ships 5-16 days
2 475-5495 PIVOT - LOCK HOOK (Tennant Industrial) $59.62 1 usually ships 5-16 days
3 475-6439 LOCK HOOK ASSY (Tennant Industrial) $165.00 1 usually ships 5-16 days
4 475-5449 BUTTON - NYLON DWG MA128 (Tennant Industrial) $54.12 1 usually ships 5-16 days
5 475-5131 M6 X 10 LOW HD. SOCKET CAP PTD (Tennant Industrial) $35.91 1 usually ships 5-16 days
6 475-6317 PIN-BRG SWIVEL PLATIN (Tennant Industrial) $134.27 1 usually ships 5-16 days
7 475-5578 BEARING - SWIVEL 6303 2RSH (Tennant Industrial) $44.59 2 usually ships 5-16 days
8 475-5883 STEPPED WASHER - SWIVEL PLATING=10 (Tennant Industrial) $79.66 2 usually ships 5-16 days
9 475-5084 M6 X 12 LOW HD. SOCKET CAP PTD (Tennant Industrial) $34.40 2 usually ships 5-16 days
10 475-4873 SPACER - SHOCK ABSORBER LOWER MOUNTING (Tennant Industrial) $15.70 2 usually ships 5-16 days
11 475-4462 WASHER - SHOCK ABSORBER LOWER MOUNTING E (Tennant Industrial $5.00 2 usually ships 5-16 days
12 999-1640 Screw M8-1.25 x 90mm hex head stainless steel $3.39 1 usually ships 1-5 days
13 475-7014 SHOCK ABSORBER 80-2757 (Tennant Industrial) $685.20 1 usually ships 5-16 days
14 475-6741 BUSH KIT FOR SHOCK ABSORBER (Tennant Industrial) $316.13 1 usually ships 5-16 days
15 475-5027 NUT, NYLOC - M8 ZINC PLATED ZINC PLATED (Tennant Industrial) $33.07 7 usually ships 5-16 days
16 475-7223 TOW BAR - WELDMENT RS (Tennant Industrial) $1,595.69 1 usually ships 5-16 days
17 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 6 ships same day
18 475-5069 PIN, SPLIT COTTER - 1/8 x 1 LG (Tennant Industrial) $34.40 2 (1/8 inch x 1 inch) usually ships 5-16 days
19 475-4290 WASHER-PLAIN-1/2' PER 100 500E (Tennant Industrial) $2.40 2 usually ships 5-16 days
20 475-6821 BAG TRAY ASSEMBLY (Tennant Industrial) $281.73 1 usually ships 5-16 days
23 475-4476 GROMMET - BAG TROLLEY (Tennant Industrial) $3.80 1 usually ships 5-16 days
24 475-4667 SPACER - SEAT ASSY st/st STAINLESS STEEL (Tennant Industrial $8.18 1 usually ships 5-16 days
26 475-4846 SPACER 12 DIA X 8.5 X 34 LG SK132 (Tennant Industrial) $14.03 2 usually ships 5-16 days
30 475-4922 FLAP - RUBBER [TOWBAR] ORIGINAL ISSUE (Tennant Industrial) $18.20 1 usually ships 5-16 days
32 475-4493 BOLT - HEX HD M10 X 110 GD 8.8 Z (Tennant Industrial $6.04 1 usually ships 5-16 days
33 475-4802 SPACER, TOP - SPRING STRUT (Tennant Industrial) $13.69 1 usually ships 5-16 days
34 475-4606 SPACER, TOP - SPRING STRUT (Tennant Industrial) $9.85 1 usually ships 5-16 days
35 475-5029 NUT, NYLOC - M10 - ZN PTD 500E (Tennant Industrial) $43.92 2 usually ships 5-16 days
36 475-5083 BOLT, HEX HD - M10 x 100 - ZP ZINC PLATE (Tennant Industrial $34.40 1 usually ships 5-16 days
37 375-5048 Bottom spring strut spacer (Tennant Industrial) $9.85 2 usually ships 5-16 days
38 475-7136 2 WAY SPRING STRUT ASSEMBLY (Tennant Industrial) $944.39 1 usually ships 5-16 days
39 475-5108 PIN - CLEVIS WELDMENT - TOWBAR - ZN PTD (Tennant Industrial) $37.07 2 usually ships 5-16 days
40 175-3298 Bolt M6-1 x 12mm hex head $4.47 2 ships same day
N/S 475-4534 BUSH-FLANGED DU 12i.d.17L GLY.PBG.121417 (Tennant Industrial $6.85 4 usually ships 5-16 days
N/S 475-5083 BOLT, HEX HD - M10 x 100 - ZP ZINC PLATE (Tennant Industrial $34.40 7 usually ships 5-16 days
