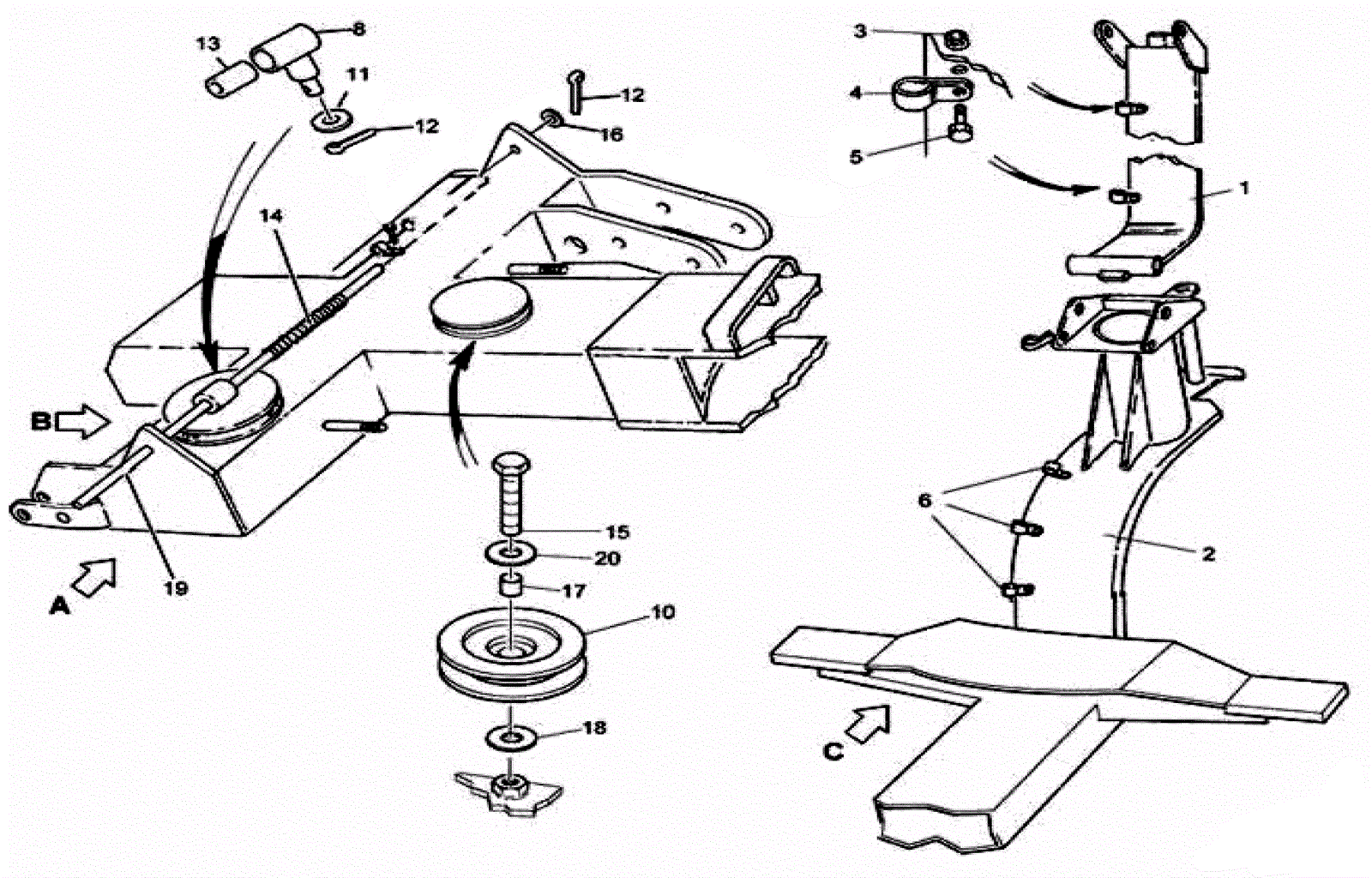

414RS Enhanced Rear Lighting - Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-6764 SEAT UPRIGHT WELDMENT PLATED=1.50 (Tennant Industrial) $368.57 1 usually ships 5-16 days
3 475-4326 NUT, NYLOC - M5 ZINC PLATED ZINC PLATED (Tennant Industrial $3.00 2 usually ships 5-16 days
4 475-4452 P-CLIP - ABA RUBBER LINED - 8mm 31303 (Tennant Industrial) $5.00 6 (rubber lined) usually ships 5-16 days
5 475-4348 SCREW, HEX HD SET - M5 x 12 - ZN PTD (Tennant Industrial) $3.00 2 usually ships 5-16 days
6 375-5044 Cable ties (Tennant Industrial) $105.04 3 (small) usually ships 5-16 days
8 475-5853 PULLEY - PIVOT - WELDMENT PLATING=.40 (Tennant Industrial) $59.12 1 (from CIN 93) usually ships 5-16 days
10 475-5519 PULLEY - 80 DIA (Tennant Industrial) $42.59 2 usually ships 5-16 days
11 475-5040 WASHER, FORM A - M10 ZINC PLATED PER 100 (Tennant Industrial $32.57 1 usually ships 5-16 days
12 475-4252 PIN, SPLIT - 3/32 x 3/4 - ST.ST. (Tennant Industrial) $1.00 3 usually ships 5-16 days
13 375-5045 Bush (Tennant Industrial) $15.70 1 usually ships 5-16 days
14 475-4770 SPRING - COMPRESSION - 500mm (Tennant Industrial) $12.69 1 usually ships 5-16 days
15 475-4275 M8 X 20 H.T. HEX SET PLATED (Tennant Industrial) $2.60 1 usually ships 5-16 days
16 375-4949 5/16 washer (Tennant Industrial) Call for price 3 usually ships 5-16 days
17 475-4497 BUSH-OILITE 11 O/D 8 I/D 8LG AM081108 (Tennant Industrial) $5.51 1 usually ships 5-16 days
18 375-5046 Washer 8 1/2 inch (Tennant Industrial) $4.80 1 usually ships 5-16 days
19 475-5525 BAR - SHUTTLE RAIL (Tennant Industrial) $42.75 1 usually ships 5-16 days
20 475-4379 WASHER - M8 x 25 OD - ST. ST. (Tennant Industrial) $3.00 1 usually ships 5-16 days
