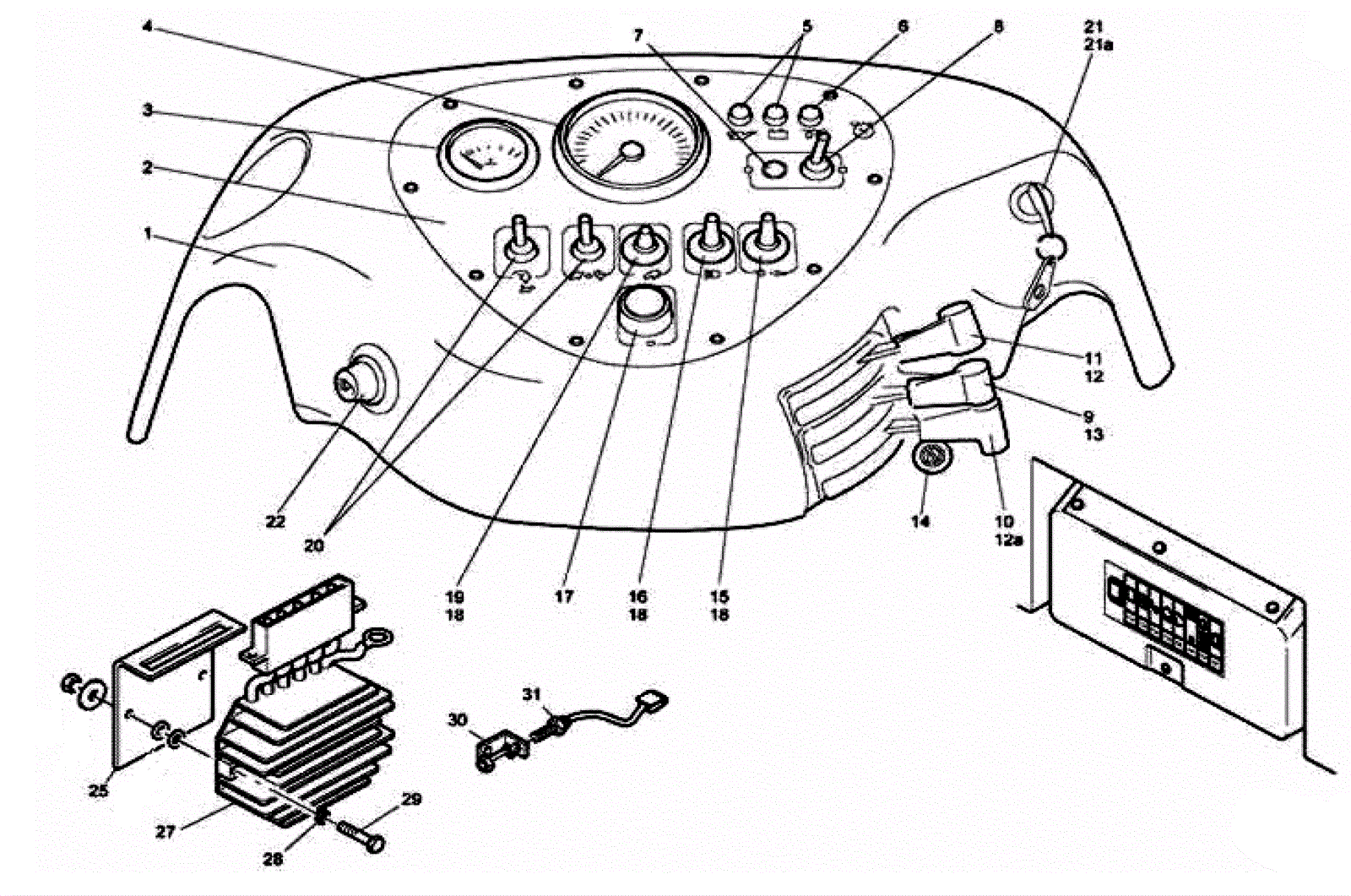

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-5006
|
Control panel moulding assembly (Tennant Industrial) |
1 |
|
|
2 |
475-7199
|
FACIA PANEL ASSY, TRI-VEX - HS, NON-DEA (Tennant Industrial |
1 |
(424HS) |
|
2a |
375-5007
|
Facia panel (Tennant Industrial)(OBSOLETE) |
1 |
(424TR AND 414 machines) |
|
2b |
375-5008
|
Facia panel assembly (Tennant Industrial)(OBSOLETE) |
1 |
(HS DEA) |
|
2c |
375-5009
|
Facia panel assembly (Tennant Industrial)(OBSOLETE) |
1 |
(TR DEA) |
|
2d |
375-5010
|
Facia panel assembly (Tennant Industrial)(OBSOLETE) |
1 |
(TR AND Cab) |
|
2e |
375-5011
|
Facia panel assembly (Tennant Industrial)(OBSOLETE) |
1 |
(TR DEA AND Cab) |
|
2f |
375-5012
|
Facia panel assembly (Tennant Industrial)(OBSOLETE) |
1 |
(414S2D/RS) |
|
3 |
475-6291
|
TEMPERATURE GAUGE - WATER (Tennant Industrial) |
1 |
|
|
4 |
475-7081
|
TACHO C/W HOURMETER (Tennant Industrial) |
1 |
(424HS) |
|
5 |
475-4792
|
LIGHT - WARNING (RED (Tennant Industrial) |
2 |
|
|
6 |
475-4938
|
LIGHT, WARNING, AMBER (Tennant Industrial) |
1 |
|
|
7 |
475-5444
|
LIGHT, WARNING - GREEN (Tennant Industrial) |
1 |
|
|
8 |
475-5700
|
SWITCH - INDICATOR SINGLE POLE, ON/OFF/O (Tennant Industrial |
1 |
|
|
9 |
475-6464
|
CABLE, THROTTLE - TRIVEX FACIA (Tennant Industrial) |
1 |
(414 from CIN 117 and all 4) |
|
10 |
475-6457
|
CABLE, BRUSH - TRIVEX FACIA (Tennant Industrial) |
1 |
(414 from CIN 117 and all 4) |
|
11 |
475-6664
|
CABLE,FLAP WITH SPRING (Tennant Industrial) |
1 |
(414 from CIN 117 and all 4) |
|
12 |
475-5364
|
SPADE KNOB,BLACK (Tennant Industrial) |
1 |
|
|
12a |
475-5364
|
SPADE KNOB,BLACK (Tennant Industrial) |
1 |
|
|
13 |
475-5221
|
SPADE KNOB,RED (Tennant Industrial) |
1 |
|
|
14 |
475-6310
|
CABLE - ENGINE STOP c/w LOCKING NUT & WA (Tennant Industrial |
1 |
|
|
15 |
475-5356
|
SWITCH - BEACON/BEEPER (Tennant Industrial) |
1 |
|
|
16 |
475-5682
|
SWITCH - LIGHTS DOUBLE POLE, ON/OFF 641 (Tennant Industrial |
1 |
|
|
17 |
475-5122
|
SWITCH - HORN 0-485-50 (Tennant Industrial) |
1 |
|
|
18 |
475-5288
|
SWITCH COVER (Tennant Industrial) |
3 |
|
|
19 |
475-5998
|
SWITCH - LIFT/LOWER (F/HEAD) (Tennant Industrial) |
1 |
|
|
20 |
475-5775
|
SWITCH - HIGH/LOW SPEED OR DEA (Tennant Industrial) |
2 |
|
|
21 |
475-6604
|
ASSEMBLY - IGNITION SWITCH COBO (Tennant Industrial) |
1 |
|
|
21a |
475-5639
|
KEY - IGNITION SWITCH (Tennant Industrial) |
1 |
|
|
22 |
475-6945
|
CONTROLLER - ELECTRONIC WATER PUMP SC111 (Tennant Industrial |
1 |
|
|
25 |
475-4921
|
HEATSHIELD (Tennant Industrial) |
1 |
|
|
27 |
475-7143
|
RECTIFIER H/D (Tennant Industrial) |
1 |
|
|
28 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
29 |
475-4309
|
SCREW, HEX SET - M6 x 35 - BRASS (Tennant Industrial) |
2 |
|
|
30 |
475-4892
|
BRACKET, DIODE, SUPPRESSOR (Tennant Industrial) |
1 |
|
|
31 |
475-5505
|
FLYWHEEL DIODE ASSY. (Tennant Industrial) |
1 |
|
|
