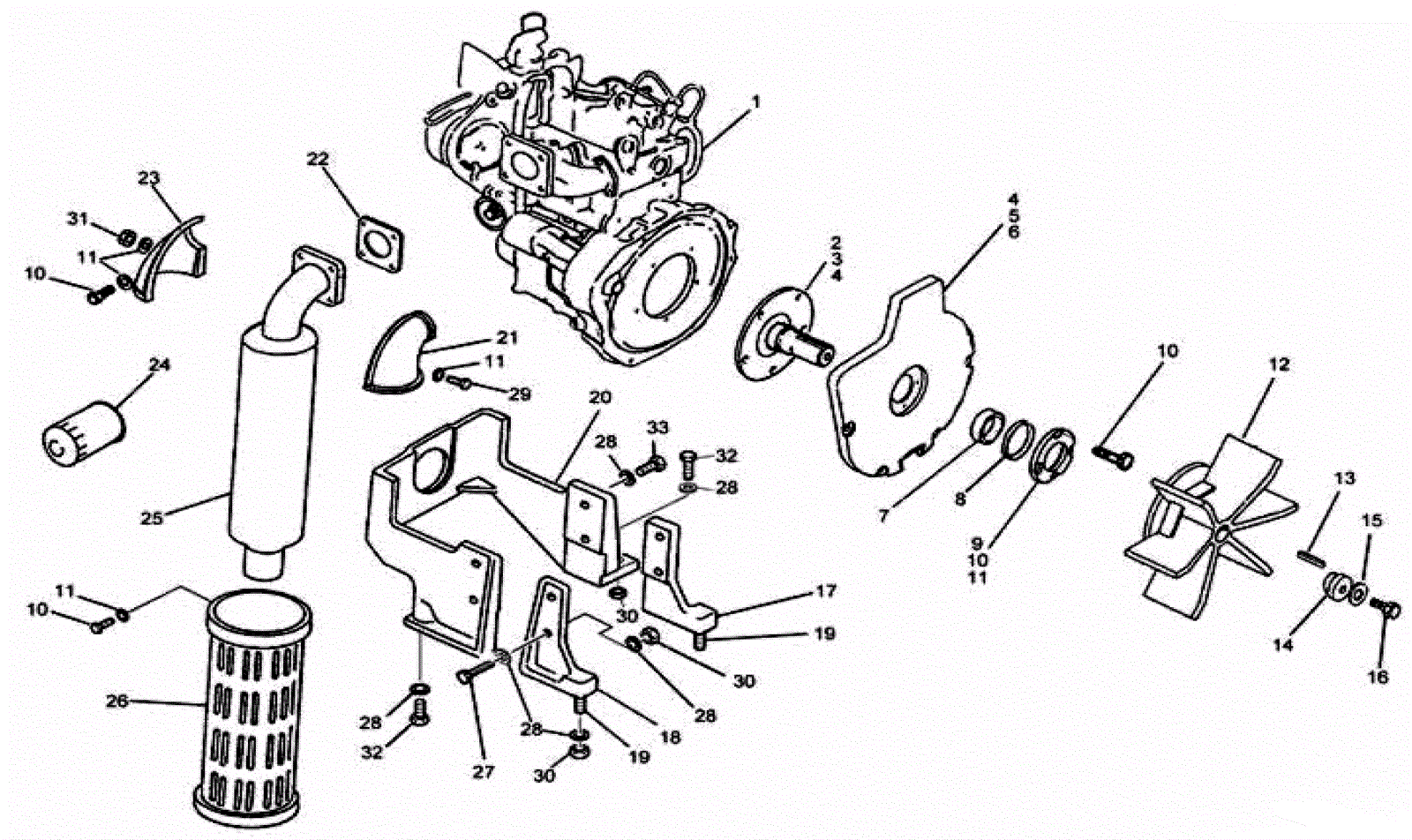

414RS Engine, Exhaust and Impeller Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-7371 ENGINE-SPARES DIESEL (Tennant Industrial) $11,692.34 1 usually ships 5-16 days
2 475-6730 PTO SHAFT - IMPELLER +VF017 (Tennant Industrial) $311.96 1 usually ships 5-16 days
3 475-4352 M8 X 16 HEX HD SCREW (Tennant Industrial) $3.00 5 usually ships 5-16 days
4 475-4289 WASHER-SPRING-8MM RECT (Tennant Industrial) $2.40 1 usually ships 5-16 days
5 375-4984 Adaptor plate (Tennant Industrial)(OBSOLETE) Call for price 1 usually ships 5-16 days
6 475-4275 M8 X 20 H.T. HEX SET PLATED (Tennant Industrial) $2.60 6 usually ships 5-16 days
7 475-6071 HARDENED JOURNAL LR35 x 40 x 16.5 (Tennant Industrial) $103.04 1 usually ships 5-16 days
8 475-5865 TEFLON SEAL 40X50X7PTA (Tennant Industrial) $83.67 1 usually ships 5-16 days
9 475-5586 SEAL HOUSING (Tennant Industrial) $62.96 1 usually ships 5-16 days
10 475-5033 SCREW, HEX HD SET - M6 x 12 - ZN PTD GRA (Tennant Industrial $32.57 3 usually ships 5-16 days
11 475-5042 M6 WASHER PLAIN PTD. EACH EACH (Tennant Industrial) $33.07 5 usually ships 5-16 days
12 475-7194 IMPELLER WELDMENT (Tennant Industrial) $1,367.56 1 usually ships 5-16 days
13 475-5542 KEY - IMPELLER - DIESEL M8 x M7 x 50MM T (Tennant Industrial $56.45 1 usually ships 5-16 days
14 475-5574 BOSS - IMPELLER RETENSION (Tennant Industrial) $57.28 1 usually ships 5-16 days
15 475-5124 DISC SPRINGS D25 D2512215 (Tennant Industrial) $35.40 2 usually ships 5-16 days
16 475-5228 BOLT, HEX HD - IMPELLER -M12 x 50 x 1.5P (Tennant Industrial $43.92 1 usually ships 5-16 days
17 475-5604 ENGINE MOUNT - LH (Tennant Industrial) $45.42 1 usually ships 5-16 days
18 475-5603 ENGINE MOUNT - RH (Tennant Industrial) $56.97 1 usually ships 5-16 days
19 375-4985 Screw M10 x 50mm stud (Tennant Industrial) Call for price 4 usually ships 5-16 days
20 475-6872 REAR ENGINE MOUNT ASSEMBLY (Tennant Industrial) $460.59 1 usually ships 5-16 days
21 475-6025 COVER MUFFLER FLANGE-FRONT (Tennant Industrial) $106.71 1 usually ships 5-16 days
22 475-4860 GASKET-MUFFLER MUFFLER GASKET FOR D1105- (Tennant Industrial $40.92 1 usually ships 5-16 days
23 475-6024 COVER MUFFLER FLANGE-REAR (Tennant Industrial) $69.64 1 usually ships 5-16 days
24 475-5938 OIL FILTER CARTRIDGE HH15232432 (Tennant Industrial) $84.67 1 usually ships 5-16 days
25 475-7119 MUFFLER - MODIFIED (Tennant Industrial) $894.62 1 usually ships 5-16 days
26 475-6236 COVER-EXHAUST 66811-5451-0 (Tennant Industrial) $136.61 1 usually ships 5-16 days
27 475-4458 M10 X 30 FINE HEX HD SCREW (Tennant Industrial) $5.00 4 usually ships 5-16 days
28 475-5040 WASHER, FORM A - M10 ZINC PLATED PER 100 (Tennant Industrial $32.57 8 usually ships 5-16 days
29 475-4335 SCREW, HEX HD SET - M6 x 30 (Tennant Industrial) $3.00 2 usually ships 5-16 days
30 475-5029 NUT, NYLOC - M10 - ZN PTD 500E (Tennant Industrial) $43.92 8 usually ships 5-16 days
31 475-5028 NUT, NYLOC - M6 ZINC PLATED ZINC PLATED (Tennant Industrial) $33.07 2 usually ships 5-16 days
32 475-4459 M10 X 20 HEX CAP SCREW (Tennant Industrial) $5.00 2 usually ships 5-16 days
33 375-4986 Screw M10-1.25 x 20mm hex head (Tennant Industrial) Call for price 4 usually ships 5-16 days
