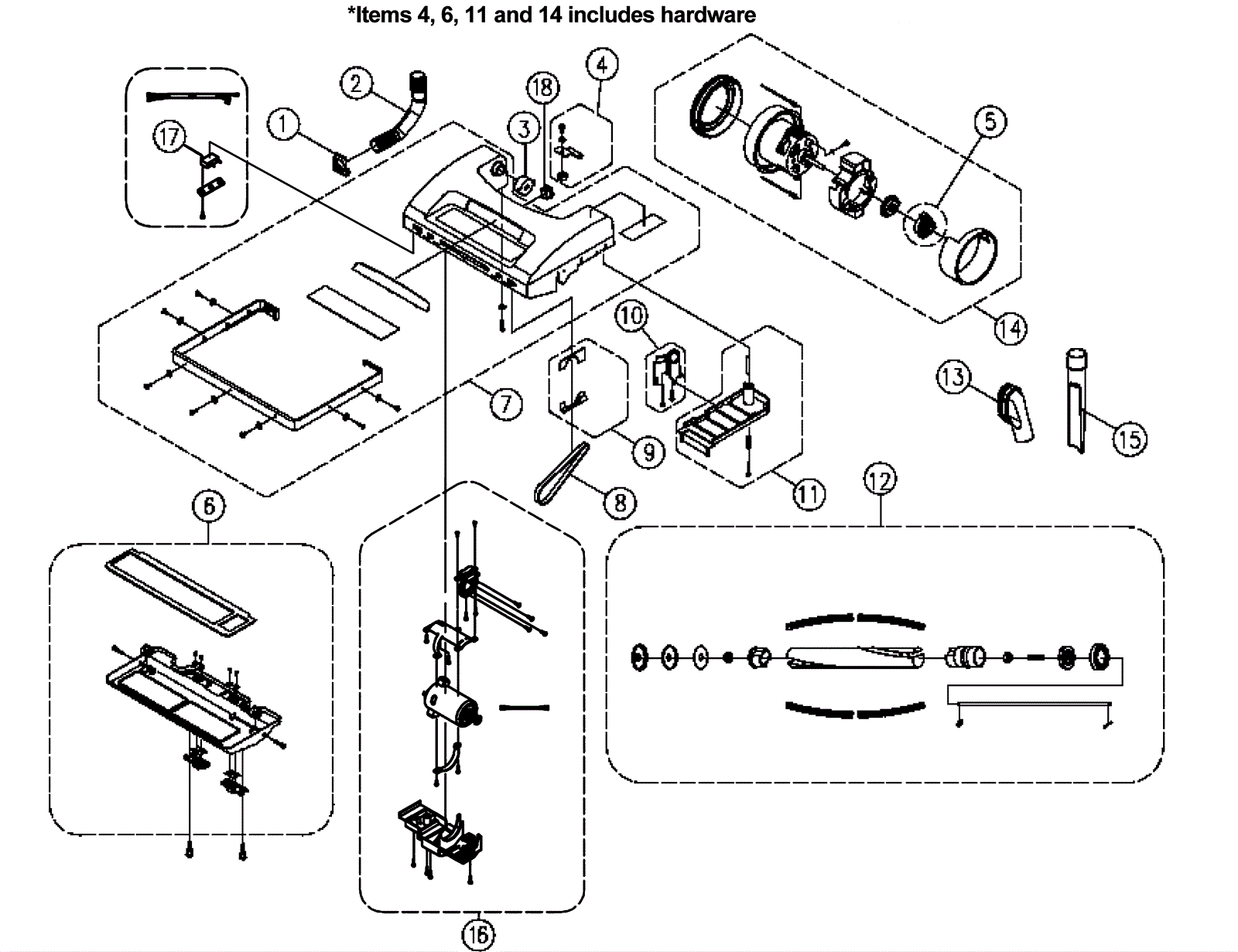

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6194
|
Hose collar |
1 |
|
|
2 |
275-6195
|
Base hose |
1 |
|
|
3 |
275-6196
|
Base collar |
1 |
|
|
4 |
275-6197
|
Spring |
1 |
|
|
5 |
275-6198
|
Motor sleeve |
1 |
|
|
6 |
275-6199
|
Vacuum shoe assembly |
1 |
|
|
7a |
275-6200
|
Base housing assembly (V-SMU-14) |
1 |
|
|
7b |
275-9882
|
Base housing assembly (V-DMU-14) |
1 |
|
|
8a |
275-6081
|
Brush belt (pkg of 6) (V-SMU-14) |
1 |
|
|
8b |
275-9883
|
Brush belt (V-DMU-14) |
1 |
|
|
9 |
275-6201
|
Brush support |
1 |
|
|
10 |
275-6202
|
Belt support bracket |
1 |
|
|
11 |
275-6203
|
Belt cover |
1 |
|
|
12a |
275-5329
|
Brush assembly (V-SMU-14) |
1 |
(V-SMU-14) |
|
12b |
275-9890
|
Brush assembly (V-DMU-14) |
1 |
(V-DMU-14) |
|
13a |
275-6204
|
1 1/4 inch dusting brush |
1 |
(OEM) |
|
13b |
991-8011
|
1 1/4 inch deluxe dusting brush with horsehair fill |
1 |
(NON-OEM) |
|
14 |
275-6205
|
120V vacuum motor |
1 |
(includes 5) |
|
15a |
275-6206
|
Crevice tool 1 1/4 x 9 inch |
1 |
(OEM) |
|
15b |
991-8014
|
Crevice tool 1 1/4 x 9 inch |
1 |
(NON-OEM) |
|
16 |
375-7869
|
Brush motor kit with breaker |
1 |
(V-DMU-14) (includes 17) |
|
17 |
375-7870
|
Circuitbreaker 3.0 amp |
1 |
(V-DMU-14) |
|
18 |
275-9892
|
Brush switch |
1 |
(V-DMU-14) |
|
