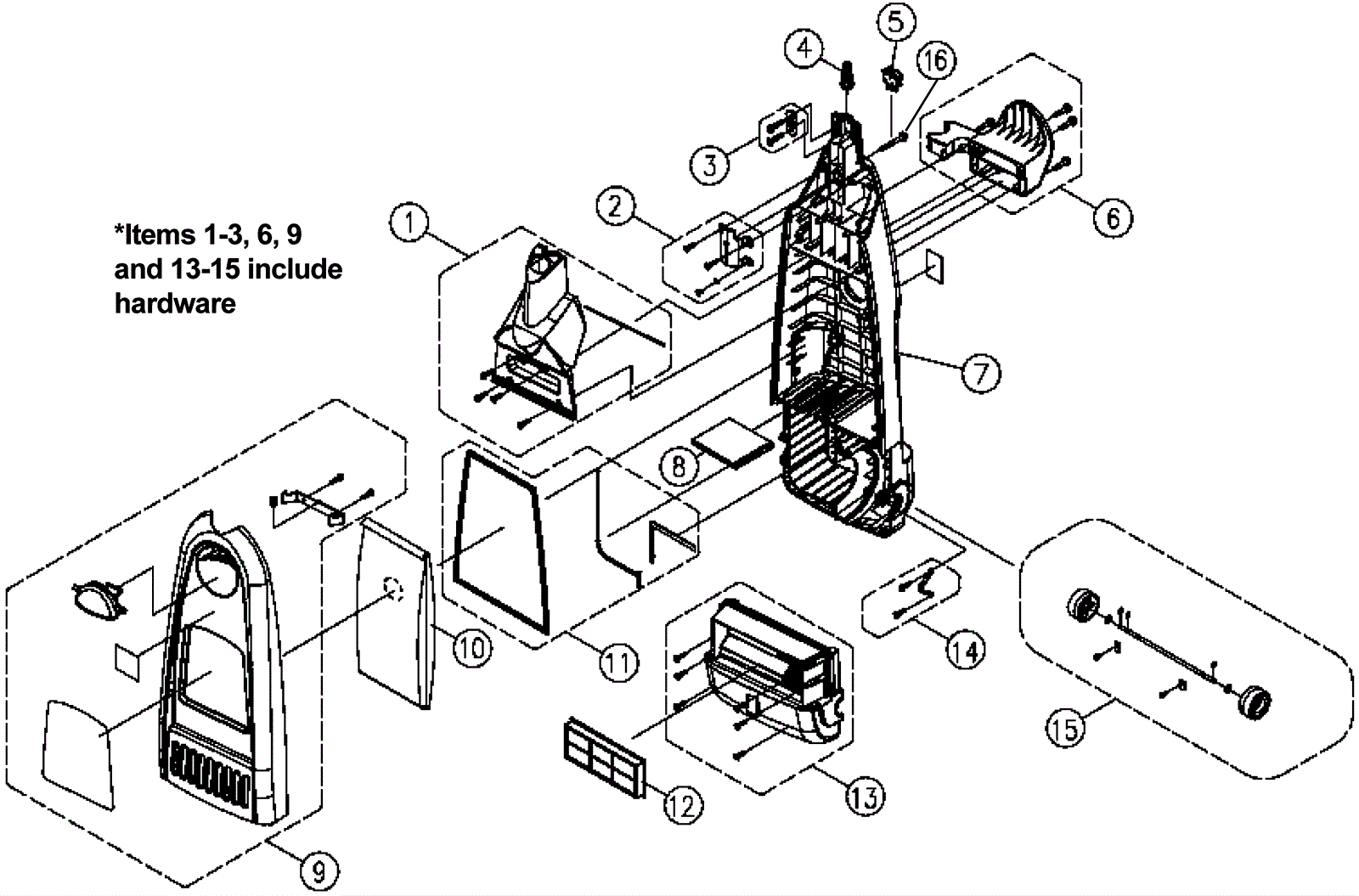

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6175
|
Switch cover |
1 |
|
|
2 |
275-6176
|
Handle clamp |
1 |
|
|
3a |
275-6177
|
Cord clip |
1 |
(V-SMU-14) |
|
3b |
275-9887
|
Cord holder |
1 |
(V-DMU-14) |
|
4 |
275-6178
|
Strain relief |
1 |
|
|
5a |
275-6151
|
Rocker switch |
1 |
(V-SMU-14) |
|
5b |
275-9888
|
3 position switch |
1 |
(V-DMU-14) |
|
6 |
275-6179
|
Hose hanger bracket |
1 |
|
|
7a |
275-6180
|
Bag housing (V-SMU-14) |
1 |
|
|
7b |
275-9889
|
Bag housing (V-DMU-14) |
1 |
|
|
8 |
275-6080
|
Exhaust filter (pkg of 6) |
1 |
|
|
9 |
275-6181
|
Bag cover assembly |
1 |
|
|
10a |
275-6079
|
Paper vacuum bags (pkg of 12 bags & 2 filters) |
1 |
(OEM) |
|
10b |
275-6279
|
Paper vacuum bags (16 pkgs of 12 bags & 2 filters) |
1 |
(OEM) |
|
10c |
991-9036
|
Paper vacuum bags (pkg of 10) |
1 |
(NON-OEM) |
|
11 |
275-6182
|
Seal kit |
1 |
|
|
12 |
275-6150
|
HEPA filter |
1 |
|
|
13 |
275-6183
|
Motor cover |
1 |
|
|
14 |
275-6184
|
Motor bracket |
1 |
|
|
15 |
275-6185
|
Wheel assembly (includes hardware and axle) |
1 |
|
|
16 |
175-3721
|
Screw M5-.8 x 45mm |
1 |
|
|
