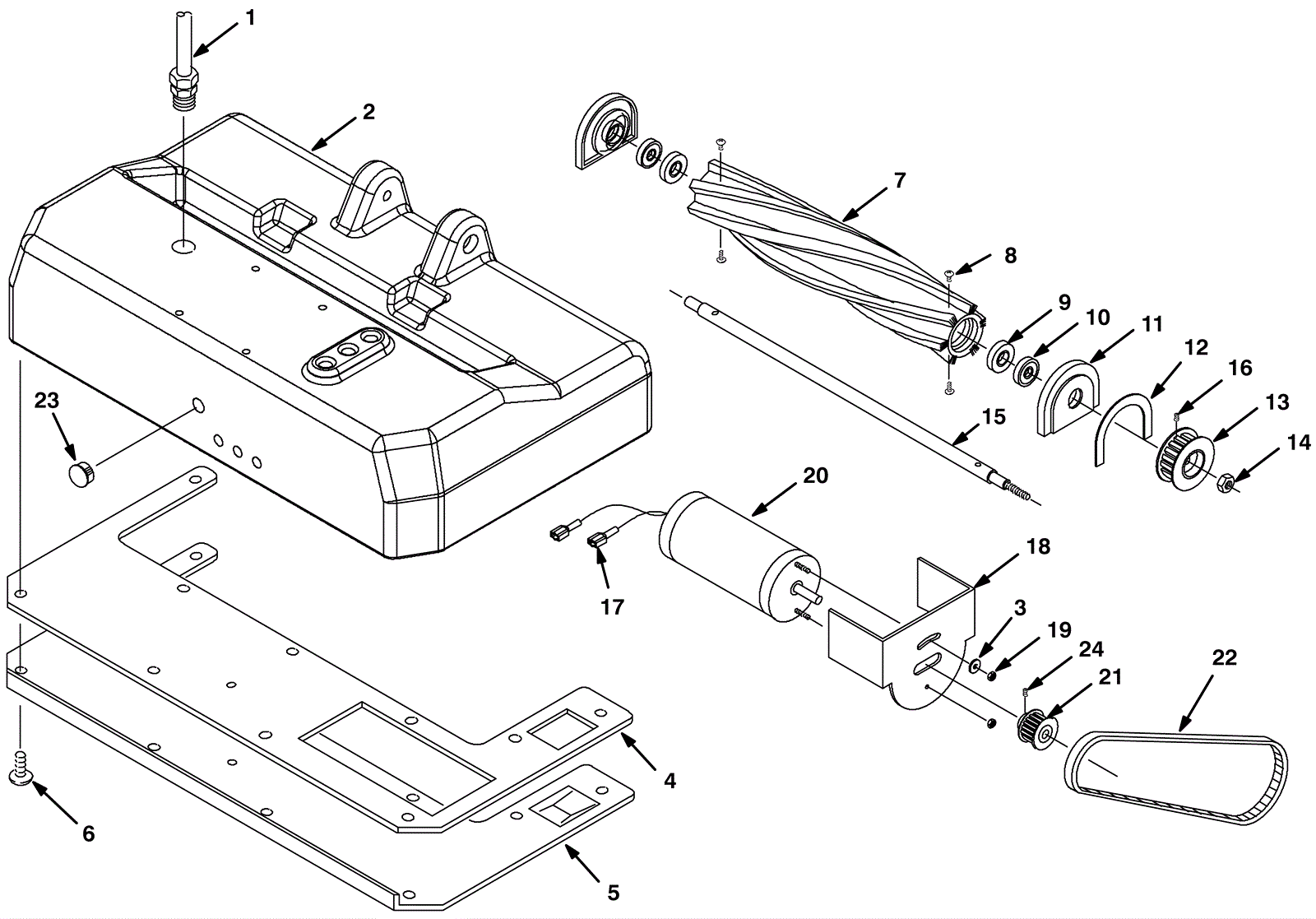

FALCON ULTRA B Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4816 Interconnect cord $28.93 1 usually ships 1-5 days
2 175-4316 22 inch base $239.03 1 usually ships 5-16 days
3 999-0803 Washer M5 flat plain finish $0.99 1 ships same day
4 175-4317 Base plate gasket $101.53 1 usually ships 5-16 days
5 175-4818 Base plate $189.20 1 usually ships 5-16 days
6 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 11 ships same day
7a 175-4023 Brush assembly with bearings - CYLINDRICAL $427.90 1 (includes 7b-16) usually ships 5-16 days
7b 175-4319 Brush - CYLINDRICAL $231.44 1 usually ships 5-16 days
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
9 175-6134 Brush bearing seal $17.16 2 usually ships 5-16 days
10a 175-0069 Brush bearing $18.70 2 (OEM) ships same day
10b 991-5125 Brush bearing $2.75 2 (NON-OEM) ships same day
11 175-6133 Bearing block $9.79 2 usually ships 5-16 days
12 175-6143 Bearing block gasket $5.50 1 ships same day
13 175-4321 Brush pulley $87.23 1 usually ships 5-16 days
14 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
15 175-4322 Brush shaft $145.09 1 usually ships 5-16 days
16 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
17 175-0923 Male terminal $4.88 2 usually ships 5-16 days
18 175-4324 Brush motor bracket $56.76 1 usually ships 5-16 days
19 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
20 175-4325 Electric brush motor $850.08 1 ships same day
21 175-4326 Motor pulley $66.88 1 usually ships 5-16 days
22 175-4327 Timing belt $47.85 1 usually ships 5-16 days
23 275-7479 PLUGBTN, BLACKNYL (Tennant Industrial) $5.17 1 usually ships 5-16 days
24 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
