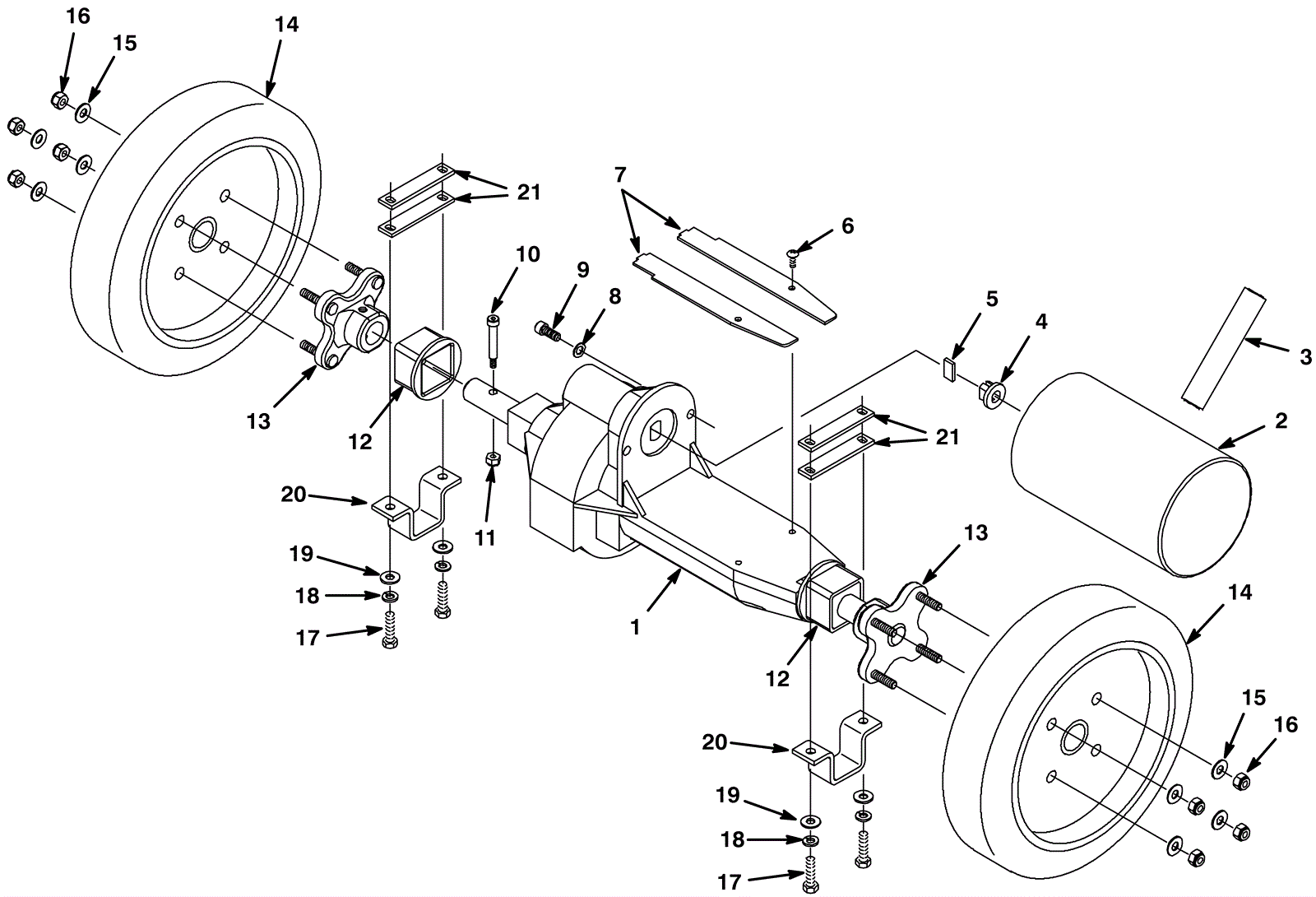

FALCON ULTRA B Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-3622 24V transaxle motor assembly $2,264.24 1 (includes 1b-13) usually ships 5-16 days
1b 175-3654 Transaxle body $2,135.87 1 usually ships 5-16 days
2 175-3657 24V transaxle motor $666.16 1 (includes 3-9) usually ships 5-16 days
3 175-7898 Carbon brush (pkg of 4) $66.77 1 ships same day
4 175-3655 Transaxle coupling $10.01 1 ships same day
5 175-3656 Transaxle key $10.23 1 usually ships 5-16 days
6 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 2 ships same day
7 N/A Not available Call for price 2 (Shaft cover) usually ships 3-26 days
8 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
9 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 ships same day
10 999-0745 Screw 10-24 x 1 1/4 socket head shoulder $2.67 2 ships same day
11 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
12 175-3660 Transaxle sleeve $10.34 2 usually ships 5-16 days
13 275-5229 Transaxle wheel hub with retainer $137.61 2 usually ships 5-16 days
14 175-4347 Wheel $127.27 2 usually ships 5-16 days
15 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
16 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
17 175-3019 Screw M10 x 35mm $4.88 4 usually ships 5-16 days
18 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
20 175-4349 Transaxle bracket $37.51 2 usually ships 5-16 days
21 175-3666 Axle spacer $12.87 4 usually ships 1-5 days
N/S 175-0921 Wire tie $4.88 2 usually ships 5-16 days
