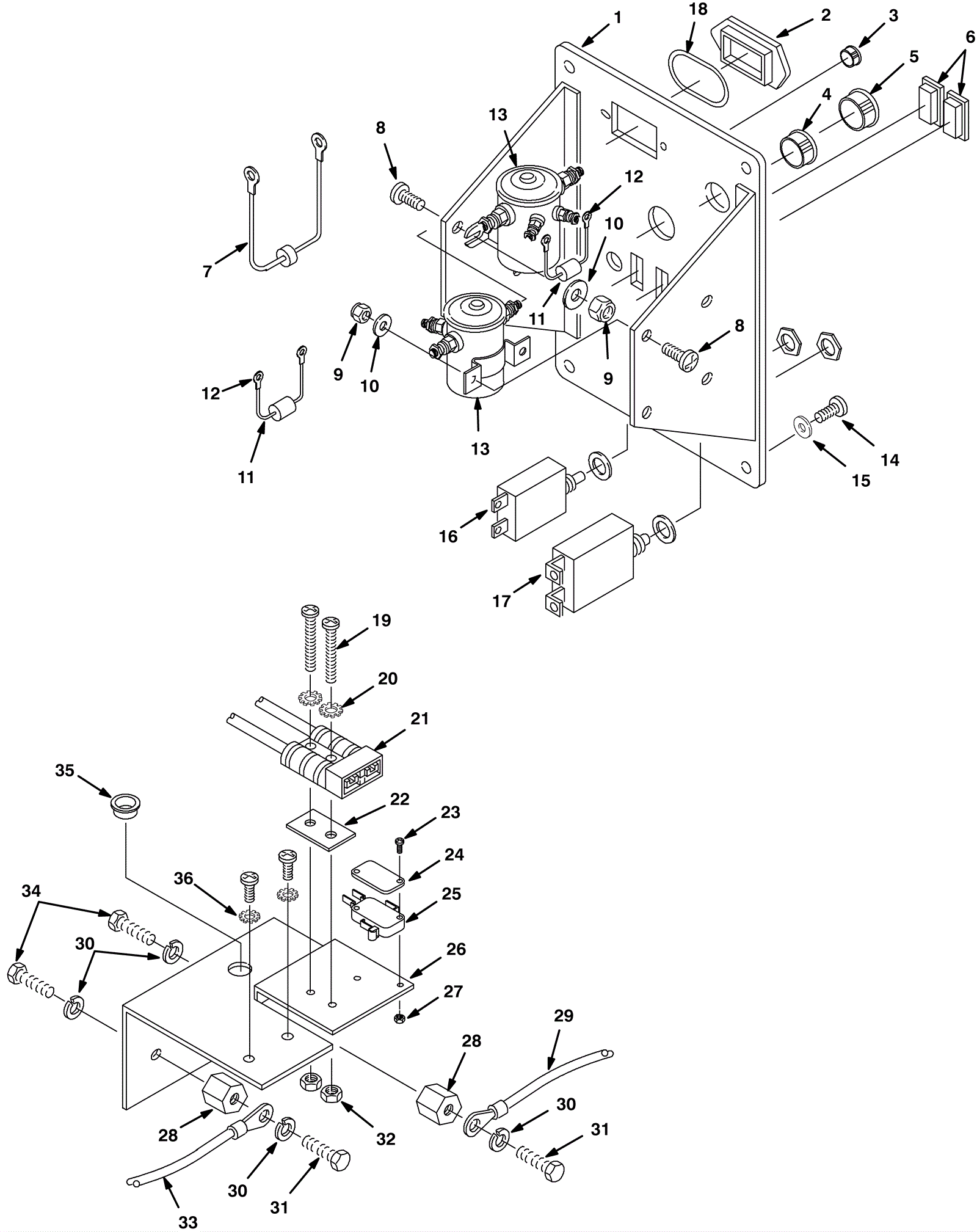

FALCON ULTRA B Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-0297 Control panel housing $69.30 1 usually ships 5-16 days
2 175-3646 Hour meter plug $10.01 1 ships same day
3 175-2701 Plug $3.83 1 ships same day
4 175-3126 Plug $4.88 1 ships same day
5 175-3127 Plug $4.88 1 usually ships 5-16 days
6 175-2698 Switch plug $6.05 2 ships same day
7 175-1182 Diode with ring terminals (large) $14.74 1 usually ships 5-16 days
8 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 6 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
10 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
11 175-2757 Diode with ring terminals (small) $11.44 2 (includes 12) usually ships 5-16 days
12 175-0924 #10 ring terminal $3.83 4 usually ships 5-16 days
13 175-2023 24V solenoid contactor $63.47 2 ships same day
14 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 4 ships same day
15 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
16 175-1186 15amp circuit breaker $18.37 1 (main and brush) ships same day
17 175-7287 60amp circuit breaker $173.14 1 (vacuum and drive) usually ships 5-16 days
18 175-3144 O-ring $4.22 1 usually ships 5-16 days
19 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
20 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
21 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
22 175-1197 Plate $6.82 1 ships same day
23 999-1431 Screw M3-.5 x 20mm pan head zinc plated $0.99 2 usually ships 1-5 days
24 175-1200 Switch backing plate $13.20 1 ships same day
25 175-1199 Snap switch $21.34 1 ships same day
26 175-7284 Charger bracket with standoff $52.80 1 usually ships 1-5 days
27 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
28 175-3226 Insulated stand off $9.57 2 ships same day
29 175-3137 Battery cable (black) $22.66 1 usually ships 5-16 days
30 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
31 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
32 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
33 175-7285 Wiring assembly (red) $16.50 1 usually ships 1-5 days
34 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
35 175-3134 Snap bushing $2.64 1 usually ships 1-5 days
36 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
