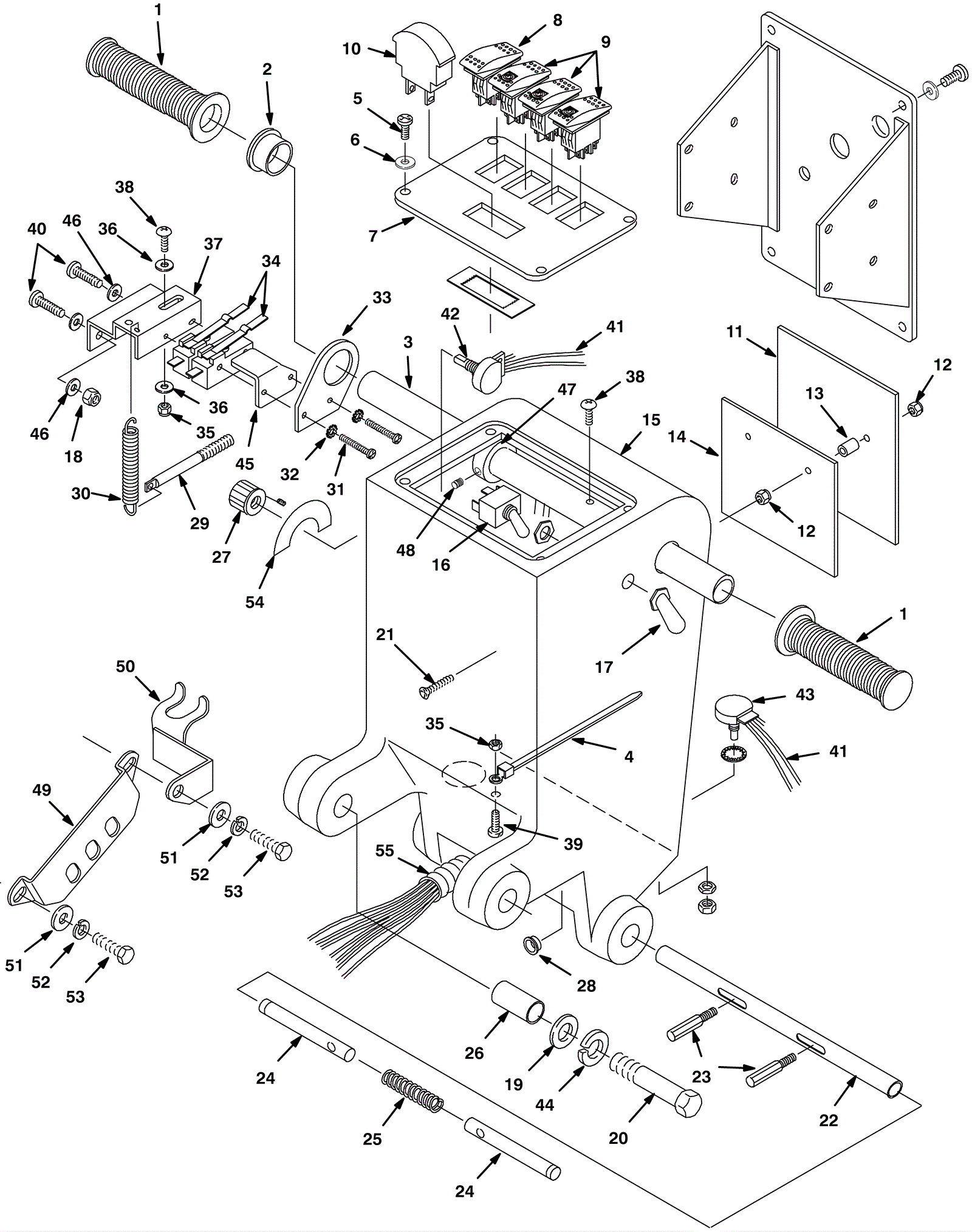

FALCON ULTRA B Console Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2703 Handle grip $5.02 2 (OEM) ships same day
1b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
2 175-3093 Flanged bushing $4.88 1 usually ships 5-16 days
3 175-3094 Handle tube $83.05 1 usually ships 5-16 days
4 175-3123 Cable tie $4.88 1 usually ships 1-5 days
5 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 4 ships same day
6 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
7 175-7322 Control panel with silkscreen $94.71 1 usually ships 1-5 days
8 175-4822 Rocker switch $41.69 1 (main) ships same day
9 175-3098 Lighted on/off rocker switch $33.55 3 (pump, vacuum and brush) ships same day
10 175-2691 Battery voltage meter $85.25 1 usually ships 5-16 days
11 175-3124 55amp speed control board $713.68 1 usually ships 5-16 days
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
13 175-3100 Spacer $5.28 2 usually ships 1-5 days
14 175-3101 Heat sink $16.50 1 usually ships 1-5 days
15 175-3102 Control housing (green) $323.84 1 ships same day
16 175-3103 Toggle switch $62.04 1 ships same day
17 175-3104 Switch boot $20.35 1 ships same day
18 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
19 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
20 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel $0.99 2 ships same day
21 999-1565 Screw M4-.7 x 35mm flat head phillips $0.99 2 usually ships 1-5 days
22 175-3108 Handle adjustment tube $68.53 1 usually ships 1-5 days
23 175-2710 Handle adjustment pin $17.05 2 usually ships 1-5 days
24 175-3109 Handle locking pin $21.23 2 usually ships 1-5 days
25 175-2712 Spring $5.50 1 usually ships 1-5 days
26 175-2714 Bushing $7.81 2 usually ships 1-5 days
27 175-1163 Speed control knob $39.05 1 ships same day
28 175-3111 Snap bushing $3.56 1 usually ships 1-5 days
29 175-3112 Spring return pin $16.06 1 usually ships 5-16 days
30 175-3113 Extension spring $5.50 1 usually ships 5-16 days
31 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
32 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
33 175-3115 Switch bracket $7.48 1 usually ships 1-5 days
34 175-3116 Snap switch $14.08 2 usually ships 5-16 days
35 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
36 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
37 175-3117 Switch mount $23.76 1 usually ships 1-5 days
38 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
39 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
40 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
41 175-3120 Console harness with potentiometer $219.23 1 (includes 42 and 43) usually ships 5-16 days
42 175-3105 Potentiometer $107.03 1 usually ships 5-16 days
43 175-3106 Lockable potentiometer $40.70 1 usually ships 5-16 days
44 999-0126 Washer 1/2 split lock $1.28 2 ships same day
45 175-3122 Switch plate $14.41 1 usually ships 1-5 days
46 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
47 175-1168 Handle collar $6.05 2 usually ships 5-16 days
48 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
49 175-2728 Locking plate $49.61 2 usually ships 1-5 days
50 175-2729 Hose hanger bracket $39.49 1 usually ships 1-5 days
51 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
52 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
53 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
54 175-1169 Speed control decal $5.28 1 usually ships 5-16 days
55a 275-4593 Main wiring harness $540.98 1 (includes 55b) usually ships 1-5 days
55b 175-1182 Diode with ring terminals (large) $14.74 1 usually ships 5-16 days
