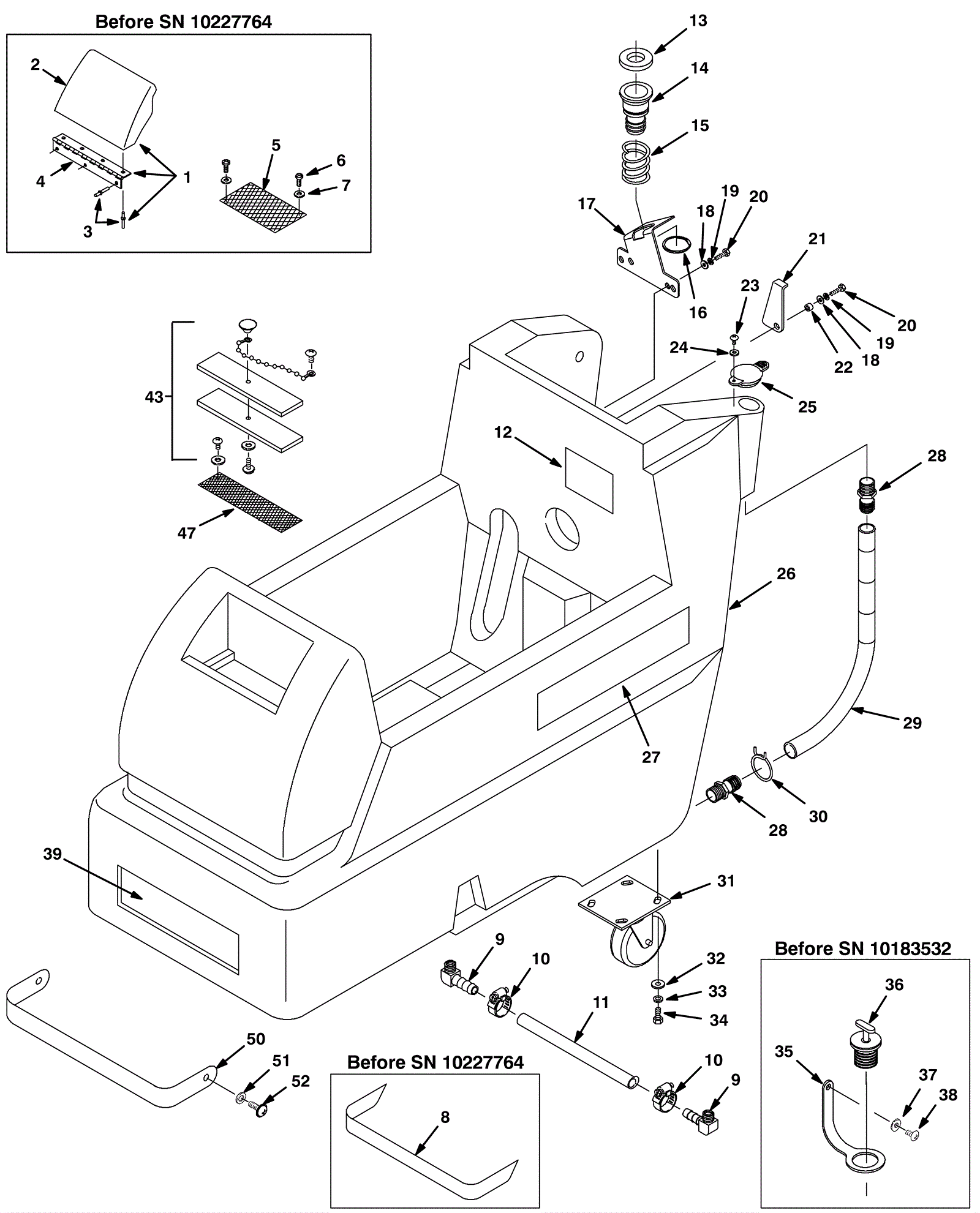

FALCON ULTRA B Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2661 Solution tank lid assembly (green) $202.95 1 (includes 2-4) (before SN 10227764) ships same day
2 175-2663 Solution tank lid (green) $143.44 1 (before SN 10227764) usually ships 5-16 days
4 175-3633 Hinge $7.70 1 (before SN 10227764) usually ships 5-16 days
5 175-2666 Screen filter $12.98 1 (before SN 10227764) usually ships 5-16 days
6 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 (before SN 10227764) ships same day
7 999-1158 Washer #6 flat stainless steel $0.99 2 (before SN 10227764) ships same day
8 175-4890 Recess decal (OBSOLETE) $3.56 1 (before SN 10227764) usually ships 1-5 days
9 175-2997 Elbow $13.86 2 usually ships 5-16 days
10 175-6081 Hose clamp $4.84 2 ships same day
11 175-4889 Hose 3/8 x 17 1/2 inch $16.39 1 usually ships 1-5 days
12 175-2982 Battery recharge decal $16.28 1 usually ships 5-16 days
13 175-3634 Vacuum motor gasket $9.13 1 ships same day
14 175-3635 Transition tube $14.85 1 ships same day
15 175-4353 Compression spring $5.50 1 usually ships 5-16 days
16 175-4355 Retaining ring $4.88 1 usually ships 5-16 days
17 175-3636 Vacuum tube bracket $49.94 1 usually ships 5-16 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
19 999-0553 Washer 5/16 medium split lock stainless steel $0.99 3 ships same day
20 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
21 175-2672 Recovery tank support $15.29 1 usually ships 5-16 days
22 175-2673 Bushing $3.83 1 usually ships 5-16 days
23 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 1 ships same day
24 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
25 175-7825 Solution fill port cap $4.88 1 ships same day
26a 275-4587 Solution tank (green) $1,151.48 1 (after SN 10227765) usually ships 1-5 days
26b 175-2985 Solution tank (green) $1,190.20 1 (before SN 10227764) usually ships 5-16 days
27 275-4589 Falcon Ultra B decal (OBSOLETE) $10.78 2 usually ships 1-5 days
28 175-2676 Barbed fitting $11.22 2 usually ships 5-16 days
29 175-3637 Drain hose with level indicator $50.82 1 (solution tank drain) usually ships 5-16 days
30 175-2678 Hose clamp $4.88 1 usually ships 5-16 days
31a 175-2991 4 inch caster wheel $63.27 2 (OEM) ships same day
31b 991-2016 4 inch caster wheel $58.28 2 (NON-OEM) ships same day
32 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
33 999-0553 Washer 5/16 medium split lock stainless steel $0.99 8 ships same day
34 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 8 ships same day
35 175-2984 Plug strap $8.14 1 (before SN 10227764) usually ships 5-16 days
36 175-2653 1 1/2 inch expansion plug $57.75 1 (before SN 10227764) usually ships 5-16 days
37 999-0393 Washer 3/16 flat aluminum $0.99 1 (before SN 10227764) ships same day
38 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 (before SN 10227764) ships same day
39 N/A Not available Call for price 1 (Nobles decal) usually ships 3-26 days
43 175-4220 Solution fill screen assembly $24.97 1 (after SN 10227765) usually ships 5-16 days
47 175-4220 Solution fill screen assembly $24.97 1 (after SN 10227765) usually ships 5-16 days
50 275-4590 Light shield $8.47 1 (after SN 10227765) usually ships 1-5 days
51 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
52 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 2 ships same day
N/S 175-3140 Battery tray $92.07 1 usually ships 1-5 days
