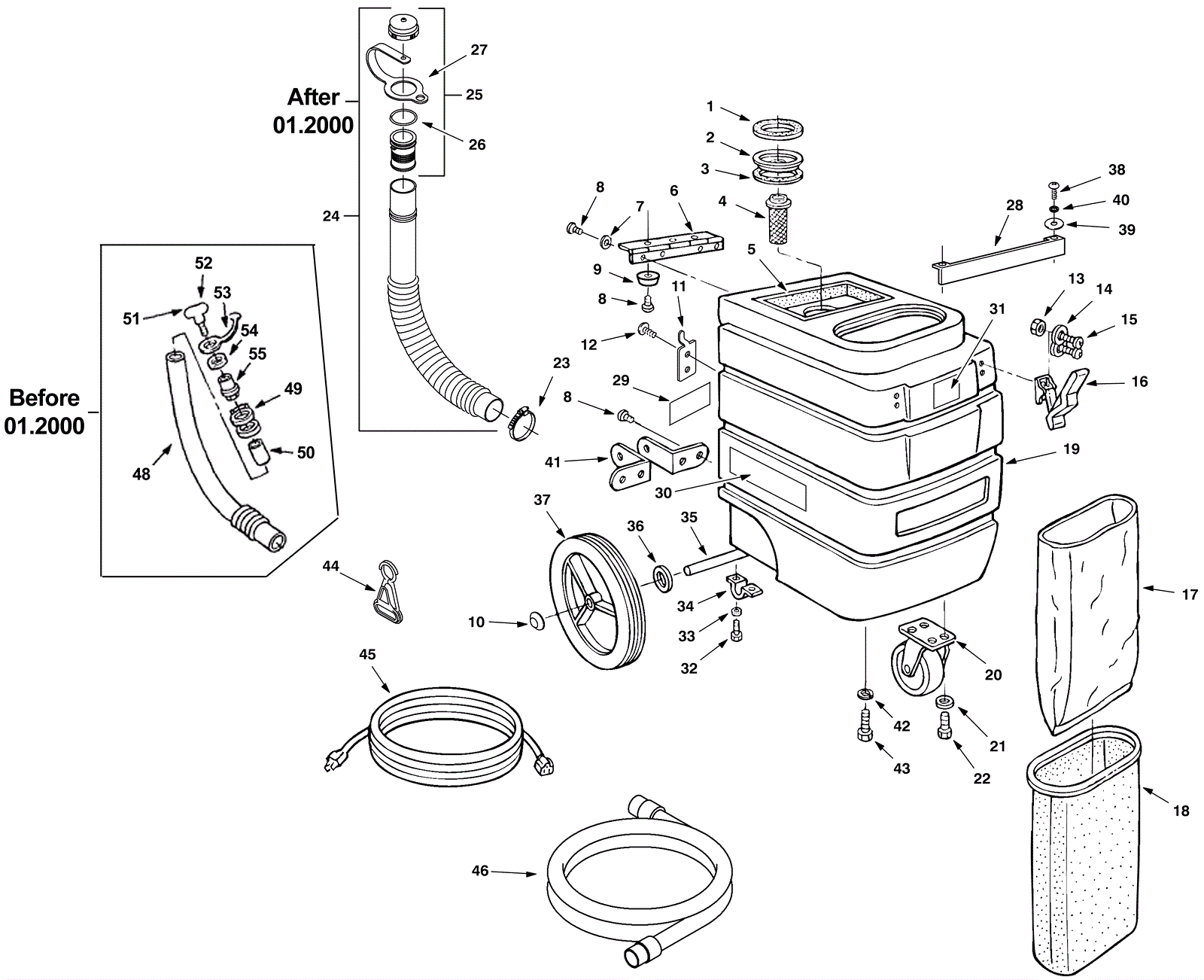

TYPHOON EV Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-9013 Float gasket $19.36 1 (Typhoon EV 1592) ships same day
1b 175-1546 Float gasket (OBSOLETE) $15.40 1 (Typhoon EV 1512) usually ships 10-13 days
2a 175-1548 Float plate $55.00 1 (Typhoon EV 1592) ships same day
2b 175-1549 Float plate $51.92 1 (Typhoon EV 1512) usually ships 10-13 days
3a 175-9013 Float gasket $19.36 1 (Typhoon EV 1592) ships same day
3b 175-1547 Float gasket (OBSOLETE) $13.64 1 (Typhoon EV 1512) usually ships 10-13 days
4a 675-9887 Shut-off float $123.20 1 (OEM) usually ships 10-13 days
4b 991-5136 Shut-off float $32.10 1 (NON-OEM) ships same day
5 175-9015 Tank foam $30.80 1 ships same day
6 175-1550 Hinge $26.62 1 usually ships 10-13 days
7 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
8 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 11 ships same day
9 175-1555 Bumper $5.50 2 ships same day
10 175-6097 Hub cap $5.50 2 ships same day
11 175-5549 Drain hose hanger bracket $11.00 1 usually ships 10-13 days
12 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
13 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
14 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
15 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 4 ships same day
16a 175-3369 Hood latch $35.09 2 (OEM) usually ships 10-13 days
16b 991-8561 Rubber draw latch with keeper $29.57 2 (NON-OEM) usually ships 18-24 days
17 175-1531 Paper bag (pkg of 10) $31.46 1 ships same day
18 175-1532 Cloth filter bag $93.28 1 ships same day
19 175-5543 15 gallon tank (teal) $356.73 1 usually ships 1-5 days
20 175-0888 4 inch swivel caster wheel $67.87 1 ships same day
21 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
22 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
23 997-2000 Hose clamp $2.37 1 ships same day
24a 175-1535 Drain hose assembly $113.85 1 (includes 25-27) (after 01.2000) (OEM) usually ships 10-13 days
24b 991-1907 22 inch molded hose with drain cap $36.70 1 (NON-OEM) ships same day
25a 175-4214 Drain plug assembly $21.78 1 (includes 26-27) (after 01.2000) (OEM) ships same day
25b 991-3028 Drain plug assembly $14.39 1 (NON-OEM) ships same day
26 175-5804 O-ring $12.65 1 (after 01.2000) usually ships 10-13 days
27 175-4214 Drain plug assembly $21.78 1 (after 01.2000) ships same day
28 175-1556 Tank support bracket $58.30 1 usually ships 10-13 days
29 175-9495 Warning decal $11.11 1 usually ships 1-5 days
30 275-6171 Typhoon decal $5.41 2 usually ships 1-5 days
31 275-6172 Front decal (Nobles) $8.03 1 usually ships 1-5 days
32 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
33 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
34 175-6098 Axle bracket $19.47 2 usually ships 10-13 days
35 175-5547 Axle $22.33 1 usually ships 10-13 days
36 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
37 175-1621 10 inch wheel (gray) $59.84 2 usually ships 10-13 days
38 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel $1.23 2 ships same day
39 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 2 ships same day
40 175-4544 Washer M6 locking $4.49 2 ships same day
41 175-1551 Bracket $27.83 2 usually ships 10-13 days
42 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
43 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
44 175-0236 Cord belt clip $11.00 1 ships same day
45a 175-6091 16/3 extension cord 50 foot (yellow) $70.68 1 (OEM) ships same day
45b 991-5002 16/3 extension cord 50 foot (orange) $54.17 1 (NON-OEM) ships same day
46 175-2635 Vacuum hose 1 1/2 x 10 foot $145.75 1 ships same day
48 N/A Not available Call for price 1 (drain hose assembly) (before 01.2000) (replace with 24) usually ships 3-26 days
49 175-1789 Hose clamp $5.50 2 (before 01.2000) ships same day
50 175-6074 Drain hose sleeve $16.94 1 (before 01.2000) usually ships 10-13 days
51 175-6070 Drain plug assembly $91.30 1 (includes 52-55) (before 01.2000) usually ships 10-13 days
52 175-6071 Drain plug knob $17.71 1 (before 01.2000) usually ships 10-13 days
53 175-6072 Drain plug strap $19.36 1 (before 01.2000) usually ships 10-13 days
54 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 (before 01.2000) ships same day
55 175-6073 Fitting $11.11 1 (before 01.2000) usually ships 10-13 days
