| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-8091
|

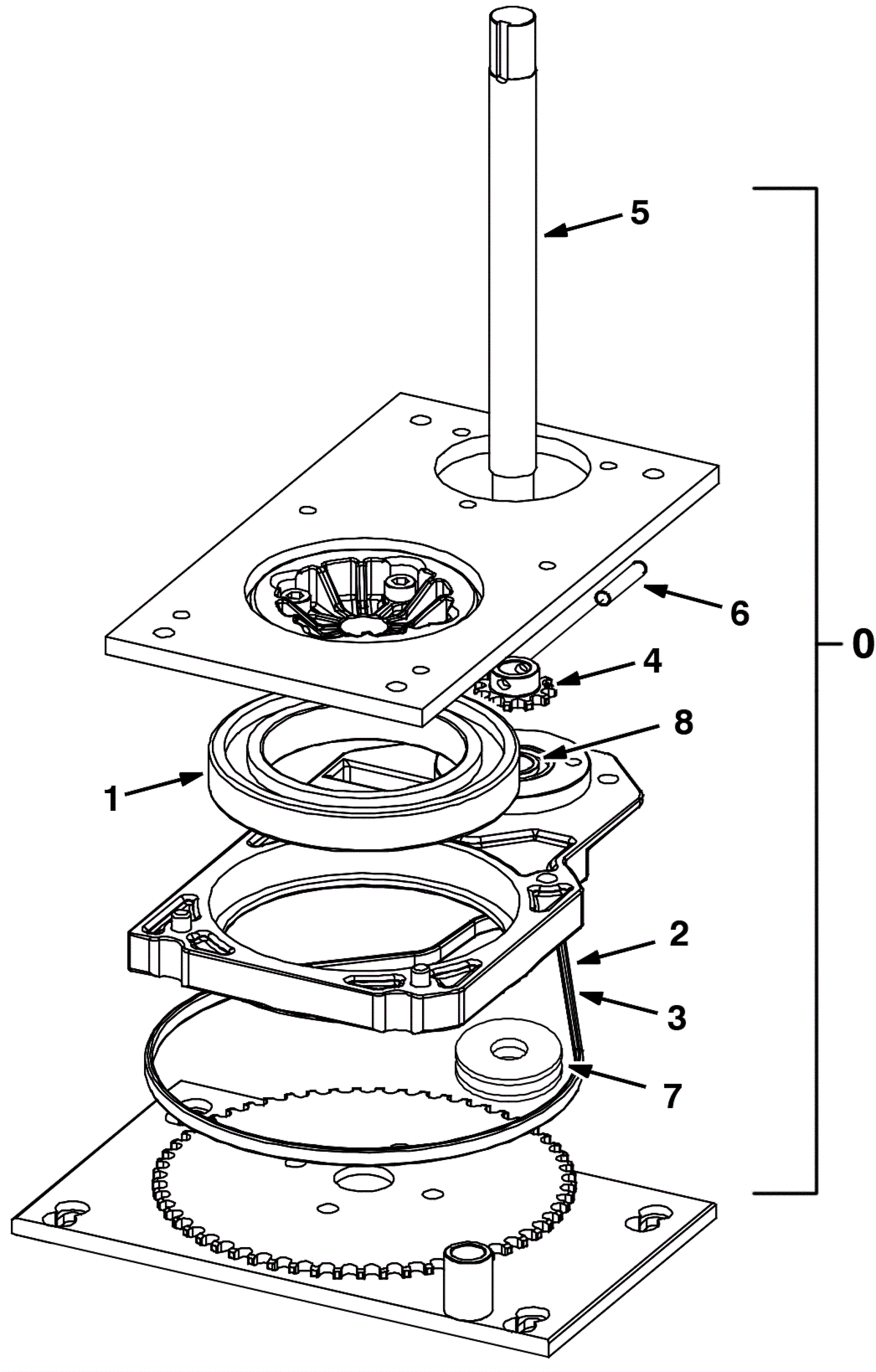

Steering control assembly |
1 |
(includes 1-8) |
|
1 |
275-8270
|
Steering bearing |
1 |
|
|
2 |
275-8271
|
Steering chain |
1 |
|
|
3 |
275-8272
|
Master link |
1 |
|
|
4 |
275-8273
|
Sprocket |
1 |
|
|
5 |
275-5099
|
Steering shaft |
1 |
|
|
6 |
275-4971
|
Roll pin |
1 |
|
|
7 |
675-9924
|
Tension pulley |
1 |
|
|
8 |
675-9927
|
VR, BEARING [6003 2RS] (Tennant Industrial) |
2 |
|
|
