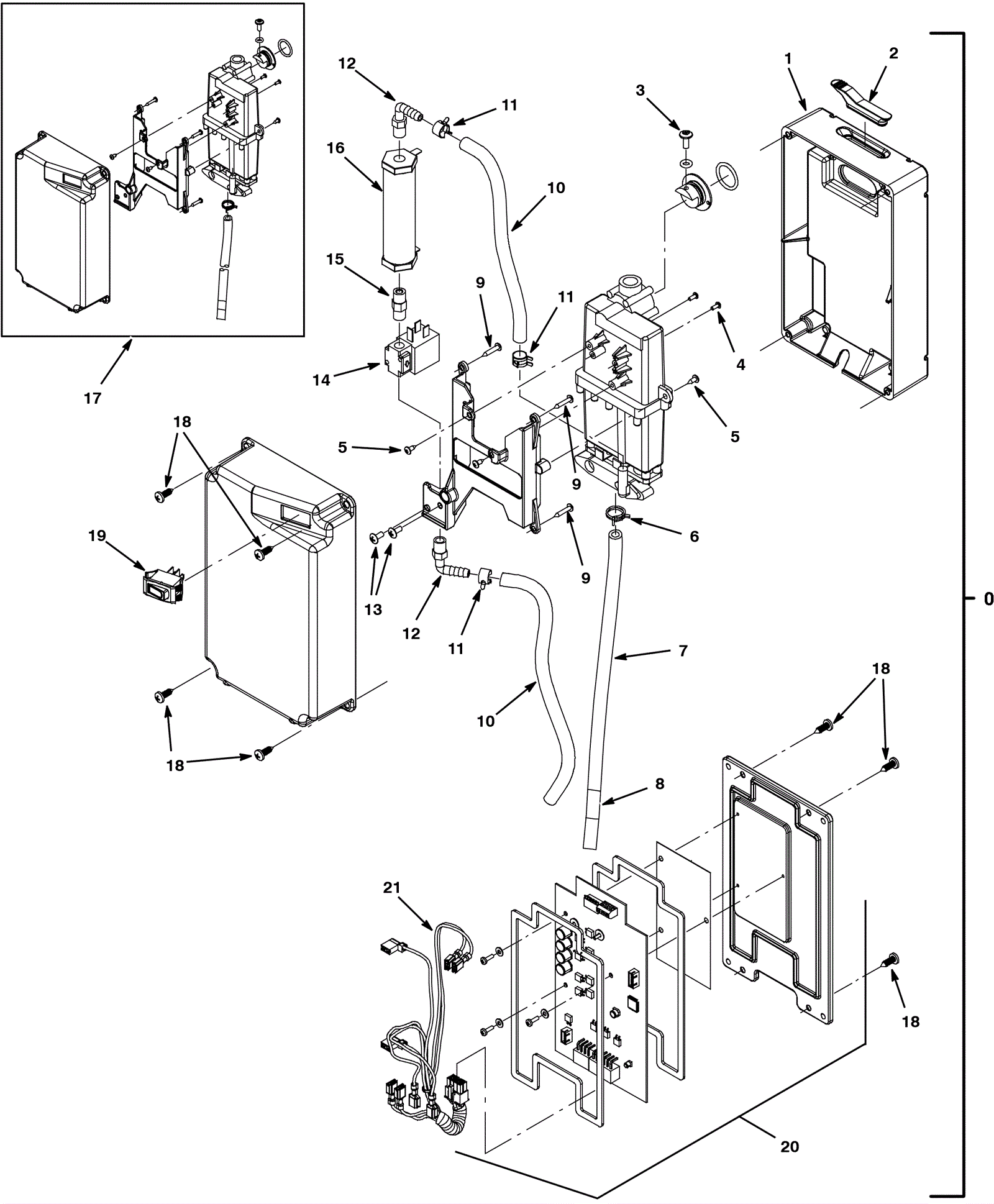

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-9935
|
ec-H20 module (OBSOLETE) |
1 |
(includes 1-21) |
|
1 |
275-4761
|
Rear module housing |
1 |
|
|
2 |
275-5946
|
Grommet |
1 |
|
|
3 |
175-3689
|
Screw M5-.8 x 12mm truss head phillips stainless steel |
1 |
(between SN 10419534 and SN 10449321) |
|
5 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
4 |
(between SN 10419534 and SN 10449321) |
|
6 |
175-5304
|
Hose clamp |
1 |
(between SN 10419534 and SN 10449321) |
|
7 |
275-4750
|
64 inch hose |
1 |
(between SN 10419534 and SN 10449321) |
|
9 |
999-1111
|
Screw 6-32 x 3/4 pan head phillips sheet metal |
4 |
(between SN 10419534 and SN 10449321) |
|
10 |
175-6347
|
Hose 1/4 inch x 13 foot |
1 |
|
|
13 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
14 |
275-4769
|
24V solenoid valve (OBSOLETE) |
1 |
|
|
16 |
275-9936
|
Cylindrical electrode |
1 |
|
|
17 |
275-4953
|
Module plumbing kit |
1 |
(between SN 10419534 and SN 10449321) |
|
18 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
8 |
|
|
21 |
275-4776
|
Control board wiring harness |
1 |
(between SN 10419534 and SN 10449321) |
|
