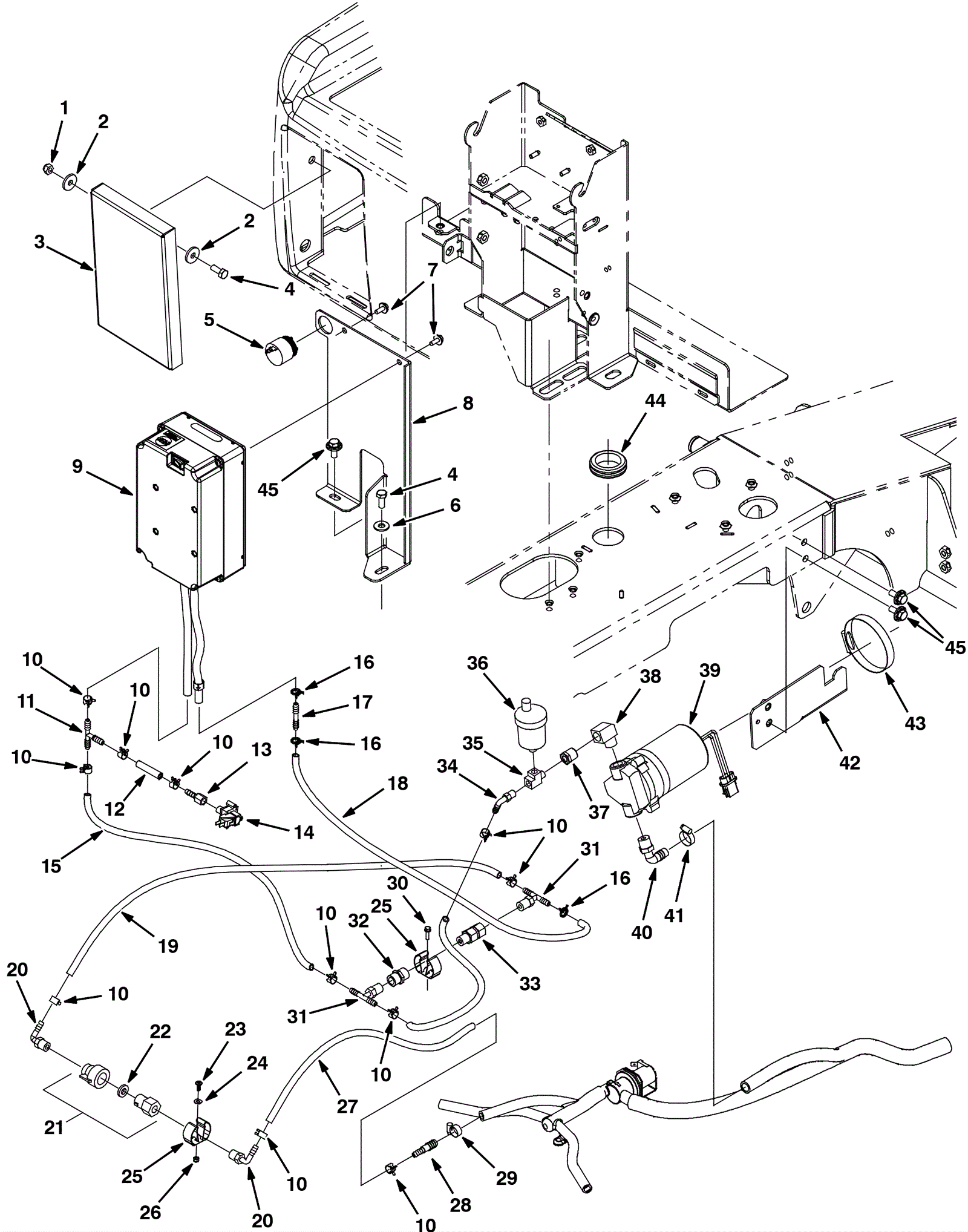

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
2 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
3 |
275-4941
|
Cover |
1 |
|
|
4 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
5 |
275-4942
|
Alarm |
1 |
(between SN 10419534 and SN 10449321) |
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
7 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
8 |
275-4943
|
Module bracket |
1 |
(between SN 10419534 and SN 10449321) |
|
9 |
275-9935
|
ec-H20 module (OBSOLETE) |
1 |
|
|
10 |
175-1656
|
Hose clamp |
11 |
|
|
11 |
175-7303
|
1/4 inch union tee |
1 |
|
|
12 |
175-6409
|
43 1/2 inch PVC hose |
1 |
|
|
13 |
175-3529
|
Brass fitting |
1 |
|
|
14 |
275-4944
|
Pressure switch |
1 |
|
|
15 |
175-6409
|
43 1/2 inch PVC hose |
1 |
|
|
16 |
175-5304
|
Hose clamp |
3 |
|
|
17 |
275-4945
|
Plastic fitting |
1 |
|
|
18 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
19 |
175-6409
|
43 1/2 inch PVC hose |
1 |
|
|
20 |
275-8335
|
FITTING, PLSTC, E90, BM04/PM04, NYL |
2 |
|
|
21 |
275-4757
|
Fitting assembly |
1 |
(includes 22) |
|
22 |
275-4946
|
Washer 0.21b x 0.45d flat |
2 |
|
|
23 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
1 |
|
|
24 |
999-0393
|
Washer 3/16 flat aluminum |
1 |
|
|
25 |
175-7938
|
Spring clip (black) |
2 |
|
|
26 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
27 |
175-6409
|
43 1/2 inch PVC hose |
1 |
|
|
28 |
275-4947
|
Plastic fitting |
1 |
|
|
29 |
175-3594
|
Hose clamp |
1 |
|
|
30 |
999-9106
|
Screw M4-.7 x 16mm hex head stainless steel |
1 |
|
|
31 |
175-1928
|
Plastic tee fitting |
2 |
|
|
32 |
175-4875
|
Coupling fitting |
1 |
|
|
33 |
275-4756
|
Check valve |
1 |
|
|
34 |
175-1662
|
90 degree elbow fitting |
1 |
|
|
35 |
275-0341
|
Brass tee fitting |
1 |
|
|
36 |
175-7941
|
Air vent valve |
1 |
(between SN 10449322 and SN 10740597) |
|
37 |
175-6863
|
Straight brass fitting |
1 |
|
|
38 |
275-8231
|
FITTING, BRS, E90, PF06/PM06, SPCL (Tennant Industrial) |
1 |
|
|
39a |
275-4753
|
24V solution pump |
1 |
(includes 39b-39f) |
|
39b |
275-4754
|
Solution head pump kit |
1 |
|
|
39c |
175-8753
|
Female connector |
1 |
|
|
39d |
175-8755
|
TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) |
1 |
|
|
39e |
175-8754
|
14/16 wire seal |
1 |
|
|
39f |
175-8756
|
Male and female secondary lock |
1 |
|
|
40 |
175-5241
|
90 degree elbow |
1 |
|
|
41 |
175-6081
|
Hose clamp |
1 |
|
|
42 |
275-8232
|
Pump bracket |
1 |
|
|
43 |
997-2009
|
Hose clamp |
1 |
|
|
44 |
175-2366
|
Rubber grommet |
1 |
|
|
45 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
