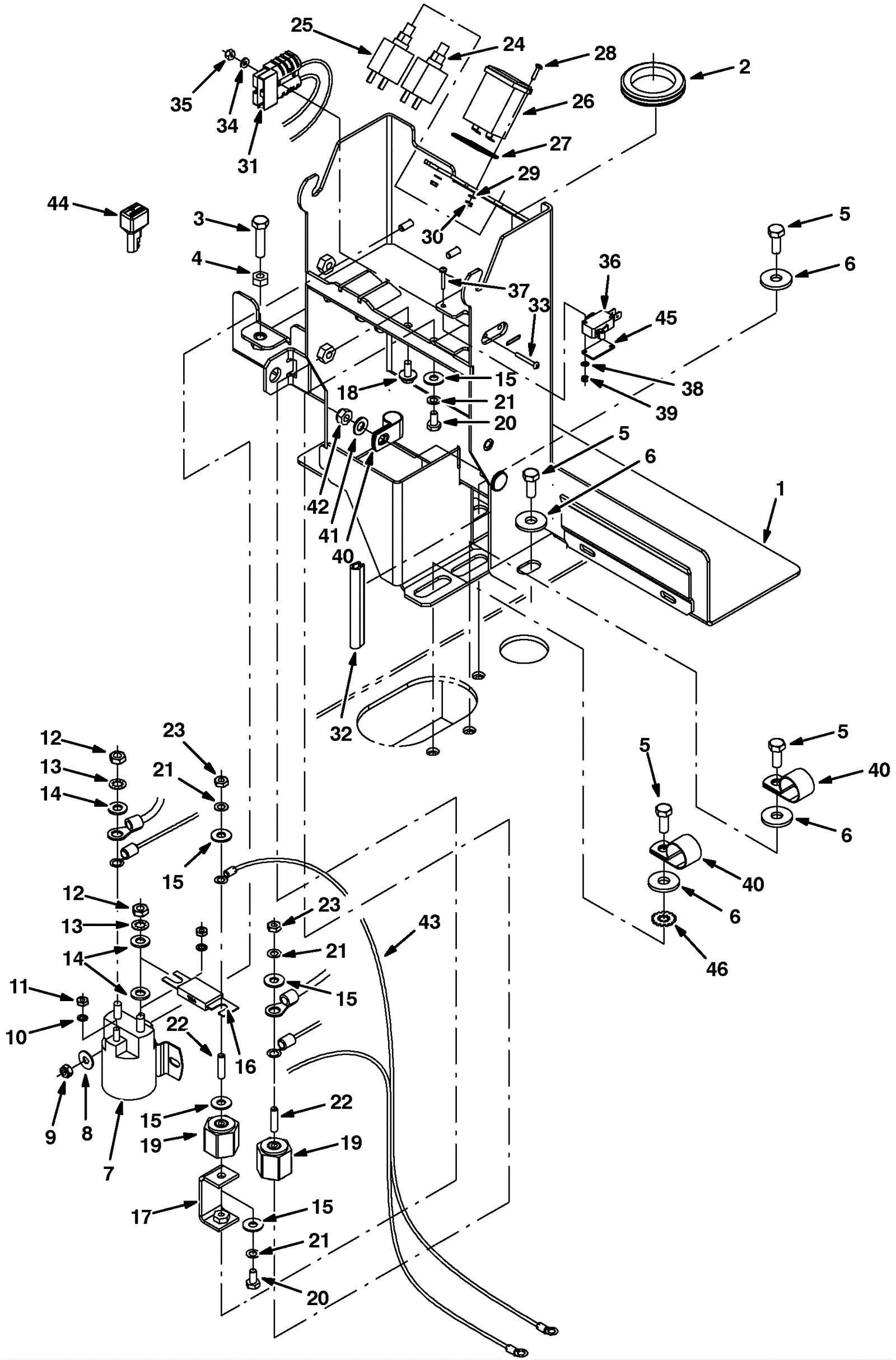

Electrical Assembly

#PartDescription ReqNotesAvailability
1a 275-6170 Actuator support weldment 1 (disk) (for models before SN 10490106, order grommet 175-2366)
1b 275-4967 Actuator support weldment 1 (cylindrical)
2a 275-0543 Rubber grommet 1 (before SN 10490105)
2b 175-2366 Rubber grommet 1 (after SN 10490104)
3 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
4 999-1424 Nut M8-1.25 hex stainless steel 1
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 5
6 175-7920 Washer M8 flat stainless steel 5
7 175-9139 24V 100amp relay 1
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
9 999-0497 Nut M6-1 nylon insert lock stainless steel 2
10 999-1026 Washer #10 internal lock stainless steel 2
11 275-8219 Nut 10-32 hex head stainless steel 2
12 999-0763 Nut 5/16-24 hex jam plain finish 2
13 999-0406 Washer 5/16 internal star lock zinc plated 2
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 3
15 999-0123 Washer 1/4 SAE flat zinc plated 5
16 275-1438 100amp fuse 1
17 275-8220 Stand off bracket 1 (disk)
18 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
19 175-3226 Insulated stand off 2
20 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock 2
21 999-0238 Washer 1/4 internal star lock zinc plated 4
22 275-8221 Rod 1/4-20 full thread 2
23 999-0181 Nut 1/4-20 hex jam plain finish 2
24 175-2557 5amp circuit breaker 1 (instrument panel - power)
25 175-0842 15amp circuit breaker 1 (accessories)
26 175-7079 Hour meter 1
27 175-2327 Gasket 1
28 175-4933 Screw M3-.5 x 12mm pan head 2
29 999-0479 Washer #4 internal star lock zinc plated 2
30 999-0768 Nut M3-.5 hex coarse thread plain finish 2
31 275-8222 Charger harness 1 (off-board charger model without telemetry)
32 275-8203 Molding 1
33 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) 2
34 999-0377 Washer 6 SAE flat plain finish 2 (off-board charger model without telemetry)
35 175-3224 Nut 6-32 hex lock 2 (off-board charger model without telemetry)
36 175-1199 Snap switch 1 (off-board charger model without telemetry)
37 999-1040 Screw M3-.5 x 20mm pan head 2
38 999-0479 Washer #4 internal star lock zinc plated 2 (off-board charger model without telemetry)
39 999-0768 Nut M3-.5 hex coarse thread plain finish 2 (off-board charger model without telemetry)
40 175-2260 P clamp 3
41 999-9097 Washer M8 flat stainless steel 1
42 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
43 275-8224 Power harness 1
44 175-2216 Diode plug 2
45 175-1200 Switch backing plate 1 (off-board charger model without telemetry)
46 175-2893 Washer 5/16 internal/external locking 1
